PSU ACE POWER SUPPLY FP 550W 80+ BRONZE RESMI

Detail PSU ACE POWER SUPPLY FP 550W 80+ BRONZE RESMI

ACE POWER SUPPLY FP 550W 80+ BRONZE GARANSI RESMI 2 TAHUN

FITUR:

80PLUS BRONZE CERTIFIED
ACTIVE PFC CIRCUIT
ATX12V V2.31
SINGLE RAIL +12V
120mm HYDRAULIC BEARING SILENT FAN
18AWG SLEEVE CABLE
WATTAGE 550W

spesifikasi :

ATX VERSION : ATX 12V V2.31

PFC : Active PFC

INPUT VOLTAGE : 110-240Vac

INPUT CURRENT : 5A-10A

INPUT FREQUENCY : 50-60Hz

DIMENSIONS (L X W X H) : 150 x 140 x 85 mm

FAN SIZE : 120mm

SILENT FAN : HYDRAULIC BEARING SILENT FAN

80 PLUS RATING : 80 PLUS Gold

OPERATING TEMPERATURE : 5°C to 40°C

STORAGE TEMPERATURE : -20°C to 70°C

MTBF : >50.000 Hours at 80% load 25°C ambient

PROTECTIONS : OVP, UVP, OPP, OTP, SCP, OCP

ATX 24-PIN CONNECTORS : 1

EPS 4+4 PIN CONNECTORS : 1

EPS 8 PIN CONNECTOR : 1

SATA CONNECTORS : 12

PERIPHERAL 4-PIN CONNECTORS : 4

PCI-E 6+2 PIN CONNECTORS : 8

WARRANTY : 2 Tahun

SERIES : AP

80 PLUS : BRONZE

MODULAR : Non Modular

WATTAGE : Above 550W

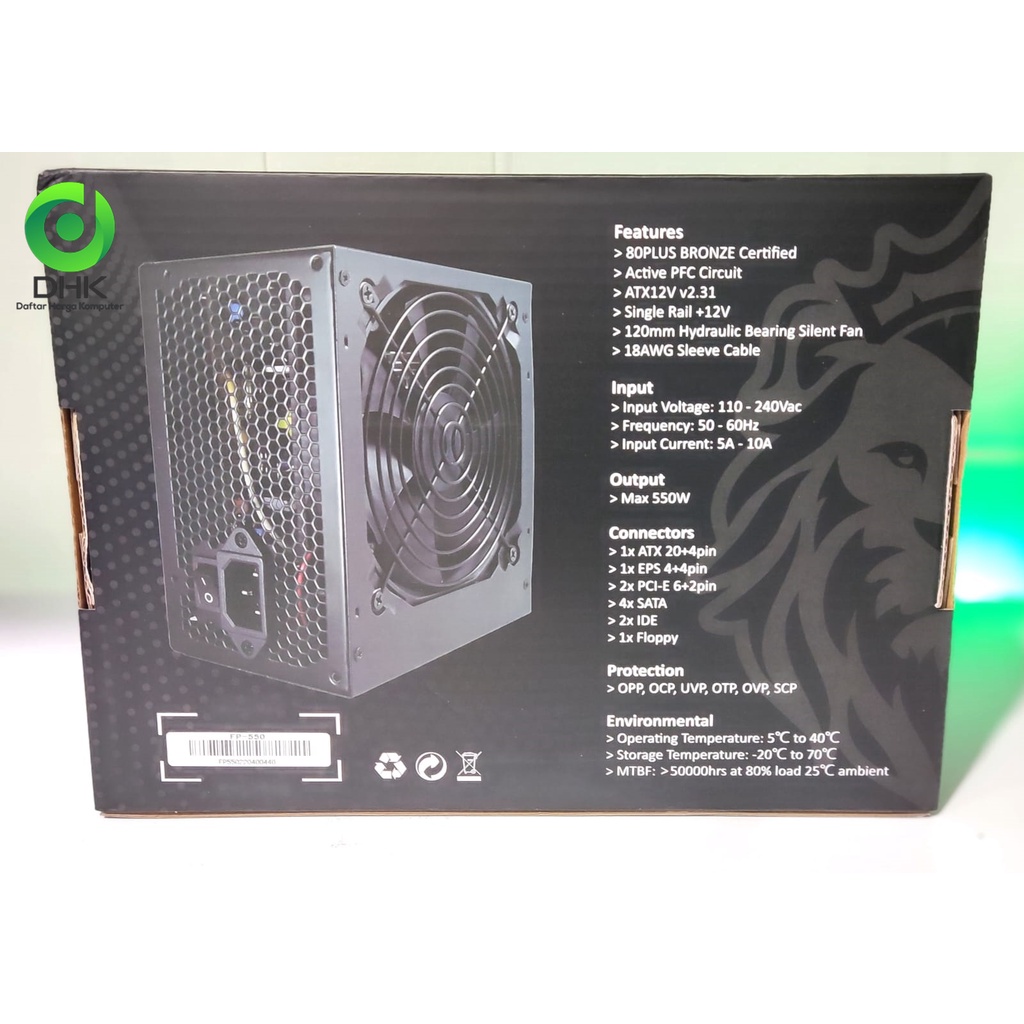

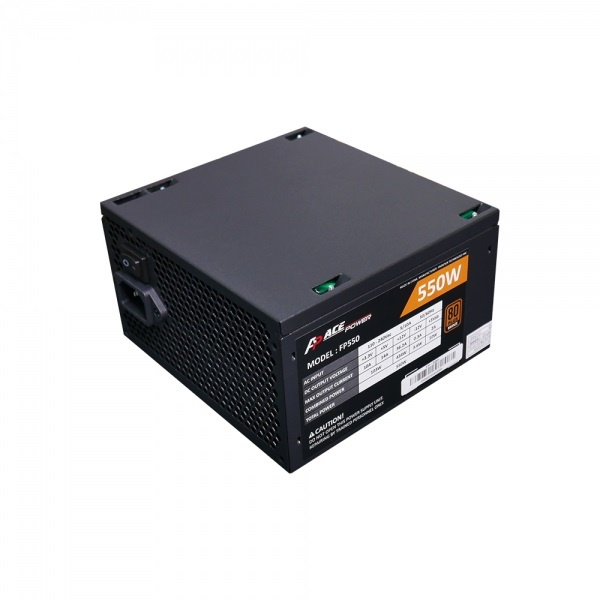

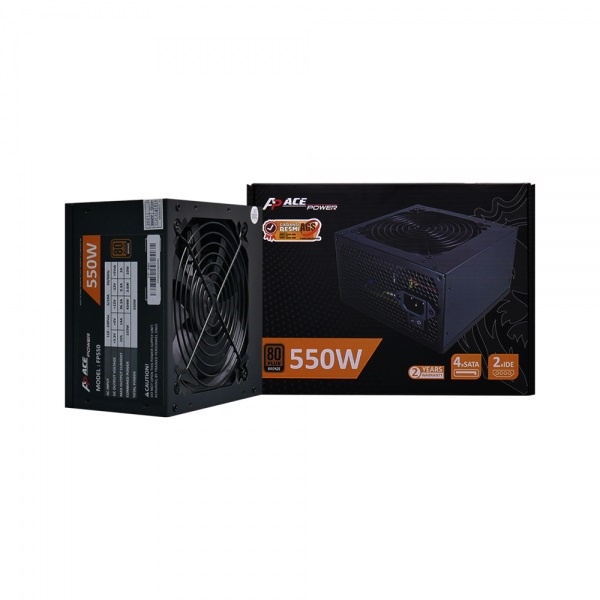

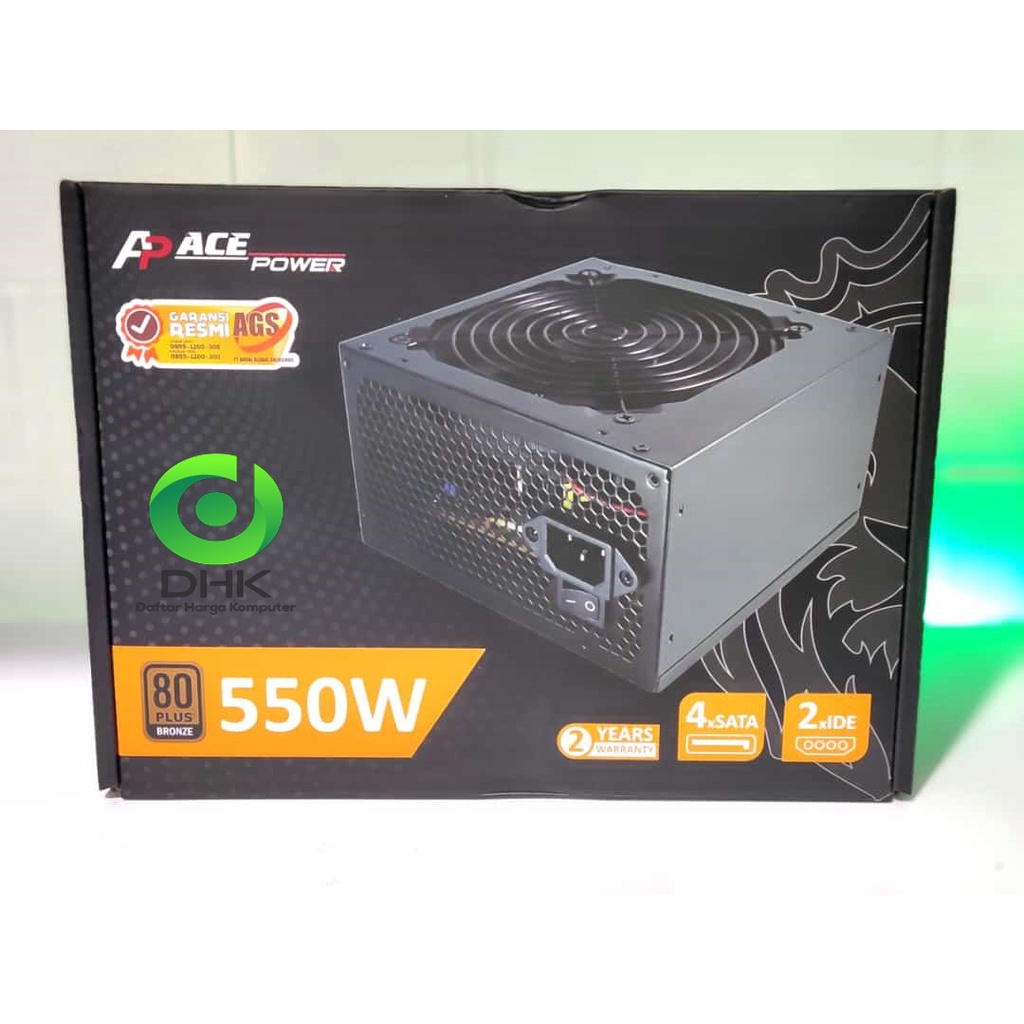

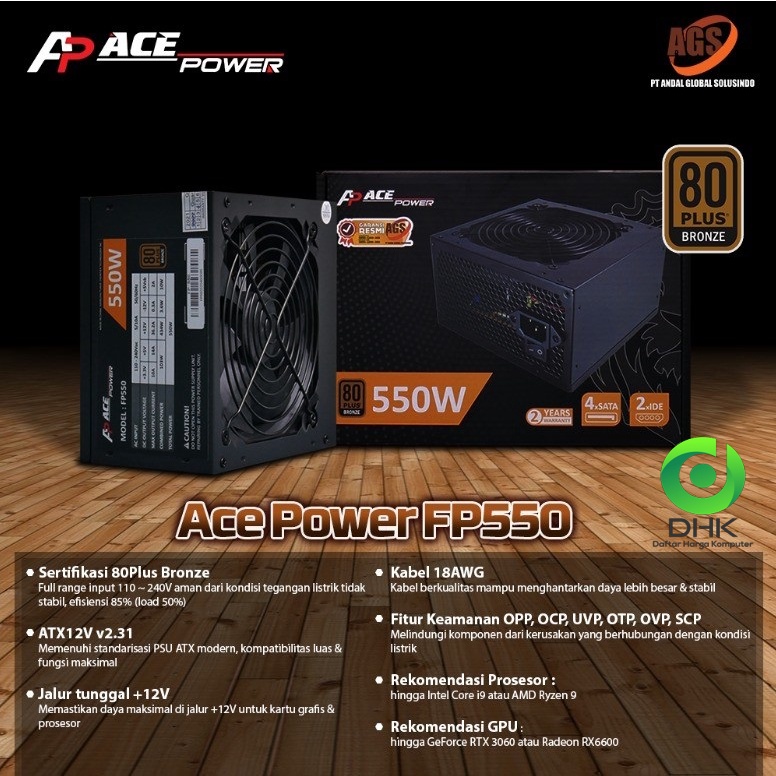

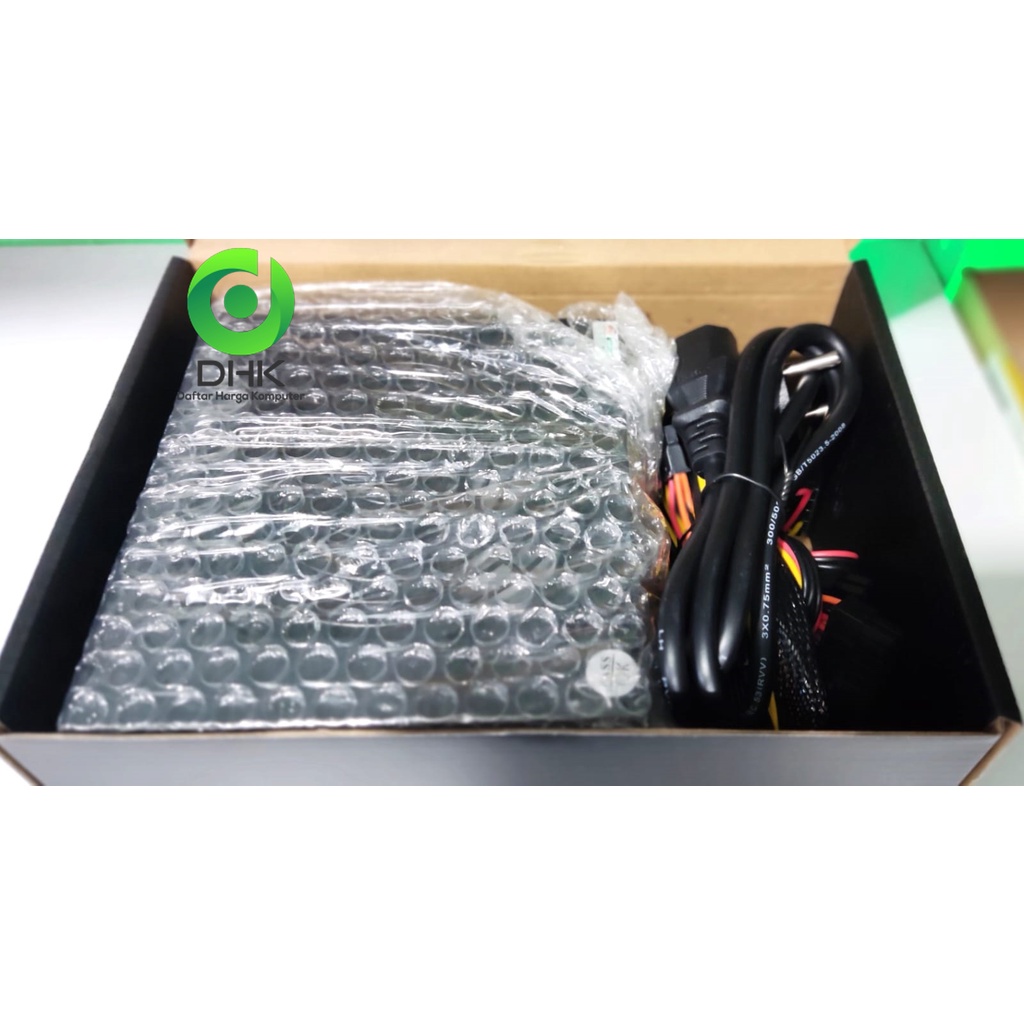

Gambar produk
