Prt XH-M567 TPA3116D2 Papan Amplifier Digital Dual Channel Adjustable PRT

Detail Prt XH-M567 TPA3116D2 Papan Amplifier Digital Dual Channel Adjustable PRT

Features:
1. High-efficiency class D operation, with > 90% power efficiency and low idle loss characteristics, advanced modulation system configuration, multiple switching frequencies, and AM interference prevention;
2. The TPA3116D2 advanced oscillator / PLL circuit uses multiple switching frequency options to suppress AM interference. When used with the master-slave mode option, multiple devices can also be synchronized;
3. The TPA3116D2 device provides comprehensive protection against short circuit, overheating, overvoltage, undervoltage and DC faults. In the event of an overload condition, the device reports the fault condition to the processor, thereby avoiding its own damage.


Description:
100% brand new and high quality
Product model number: XH-M567
Chip type: TPA3116D2
Chip protection: overvoltage undervoltage superheat DC detection short circuit
Supply voltage: DC 12V to 24V
Output power: 80W X 2
Power efficiency > 90%
Number of channels: double channel output
Size: 60*32*14mm (length*width*height)



Package include:

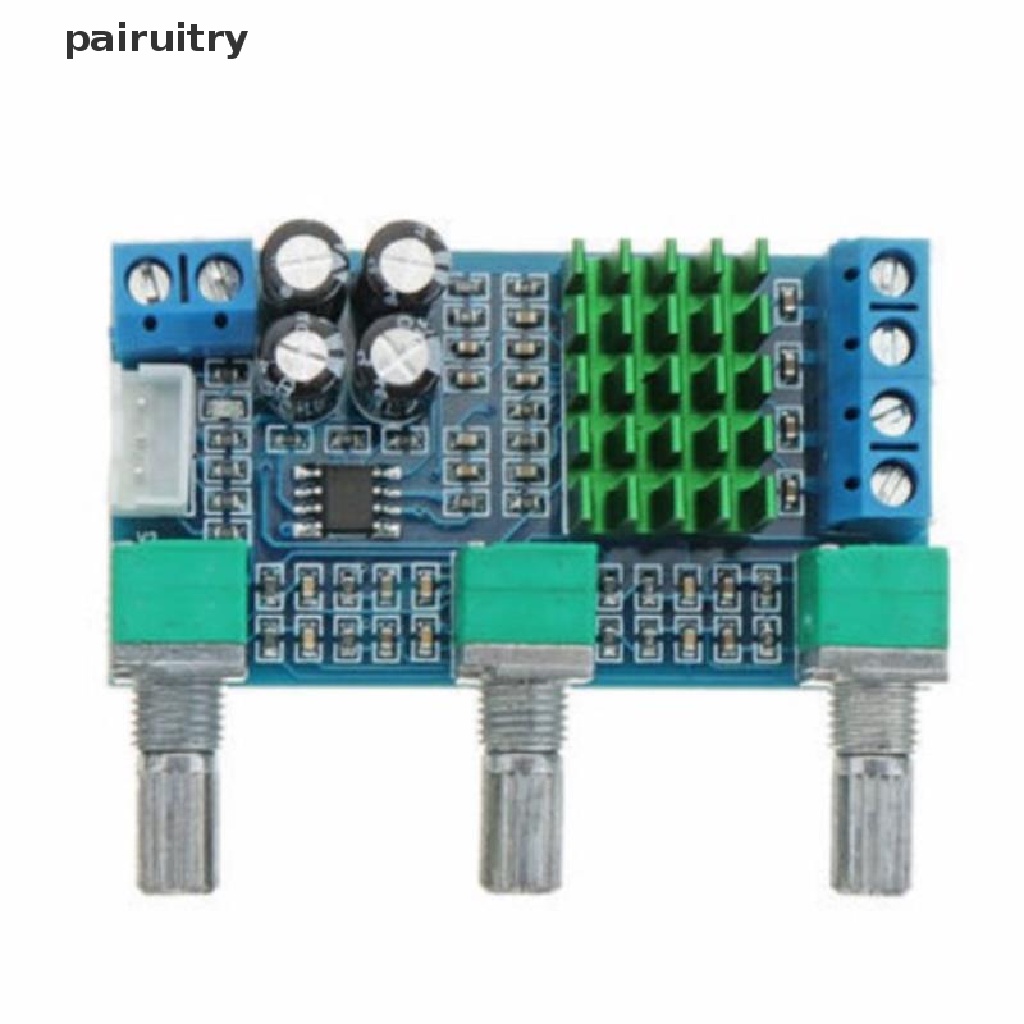

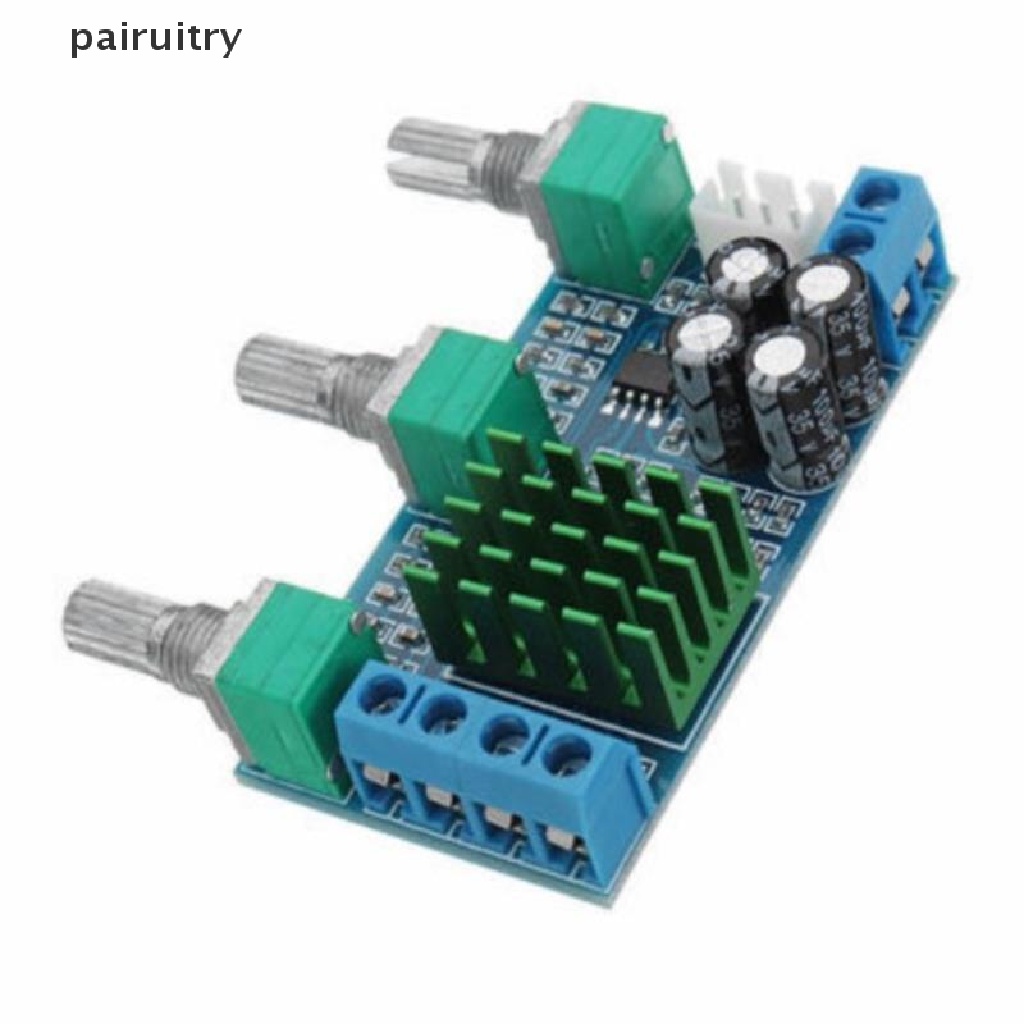

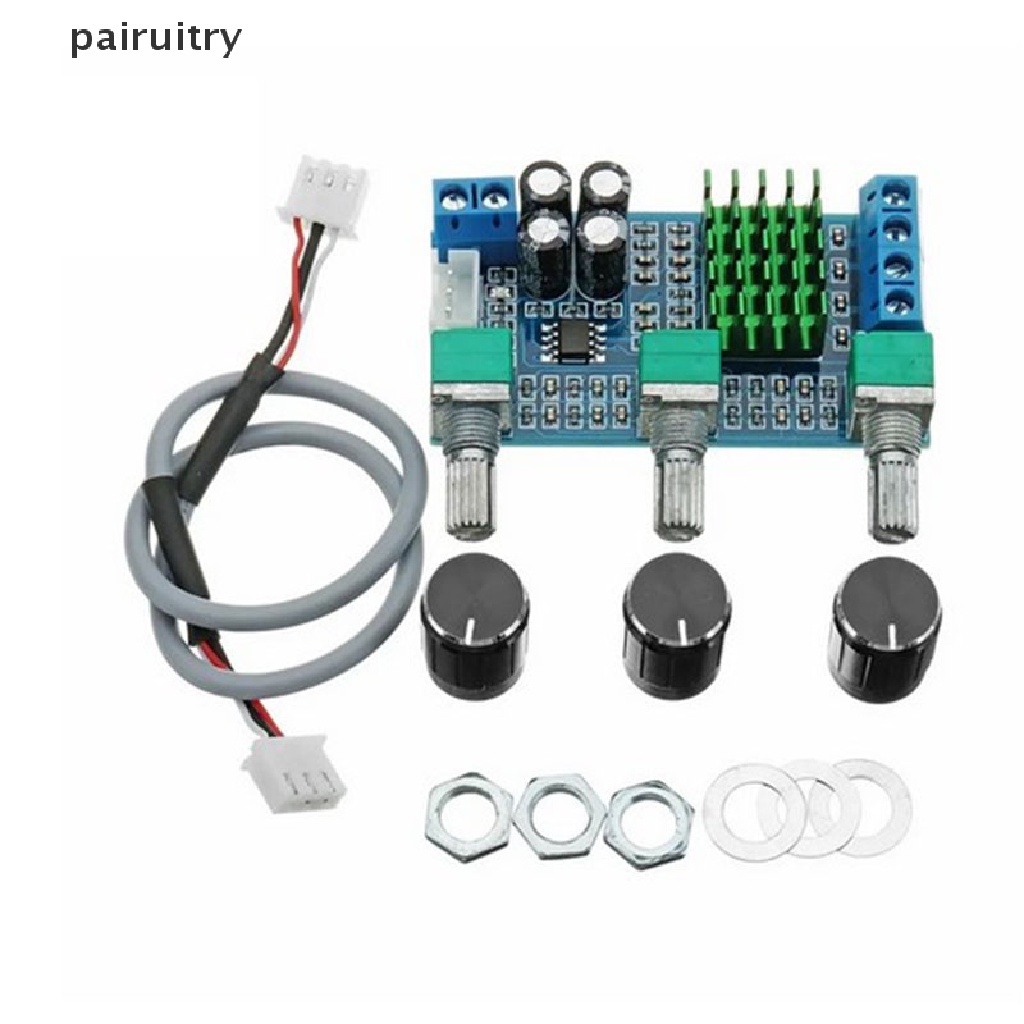

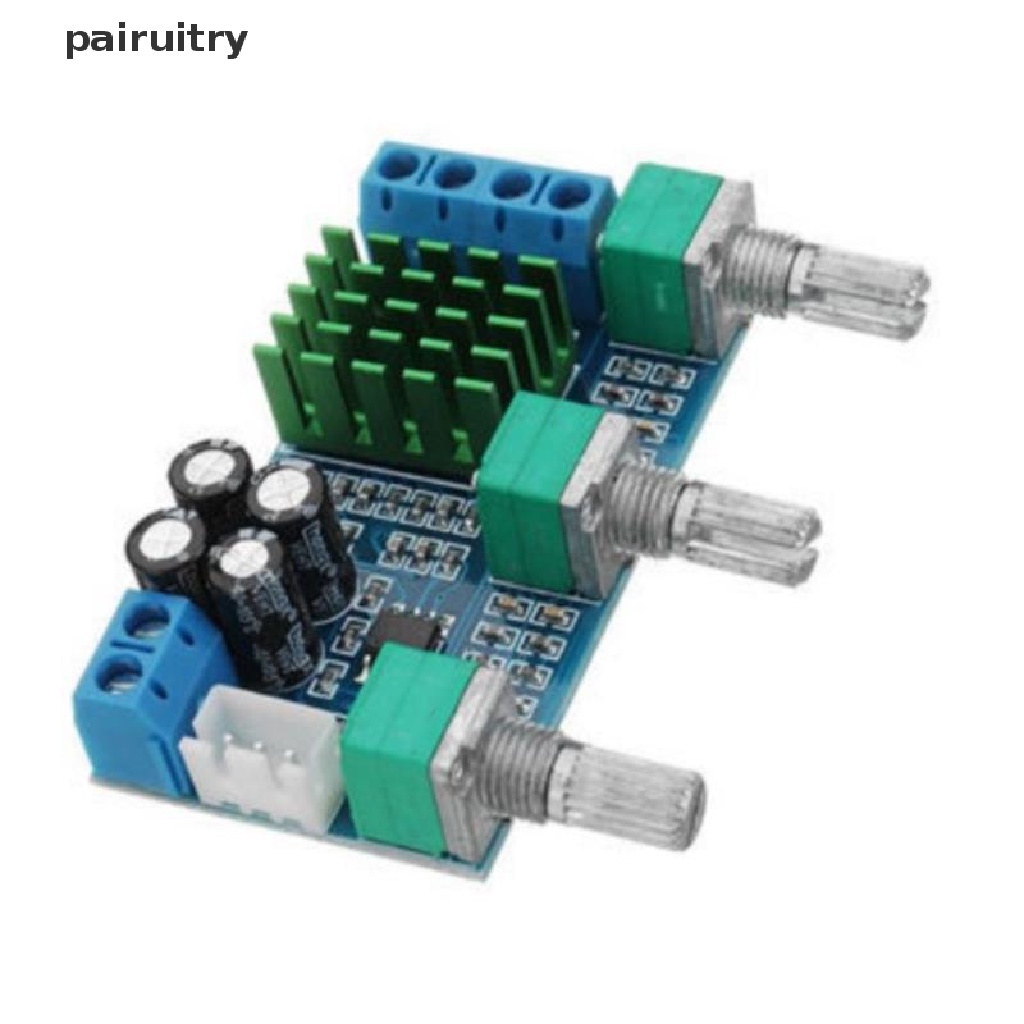

1 X XH-M567 double channel digital amplifier board



Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual mearement.
