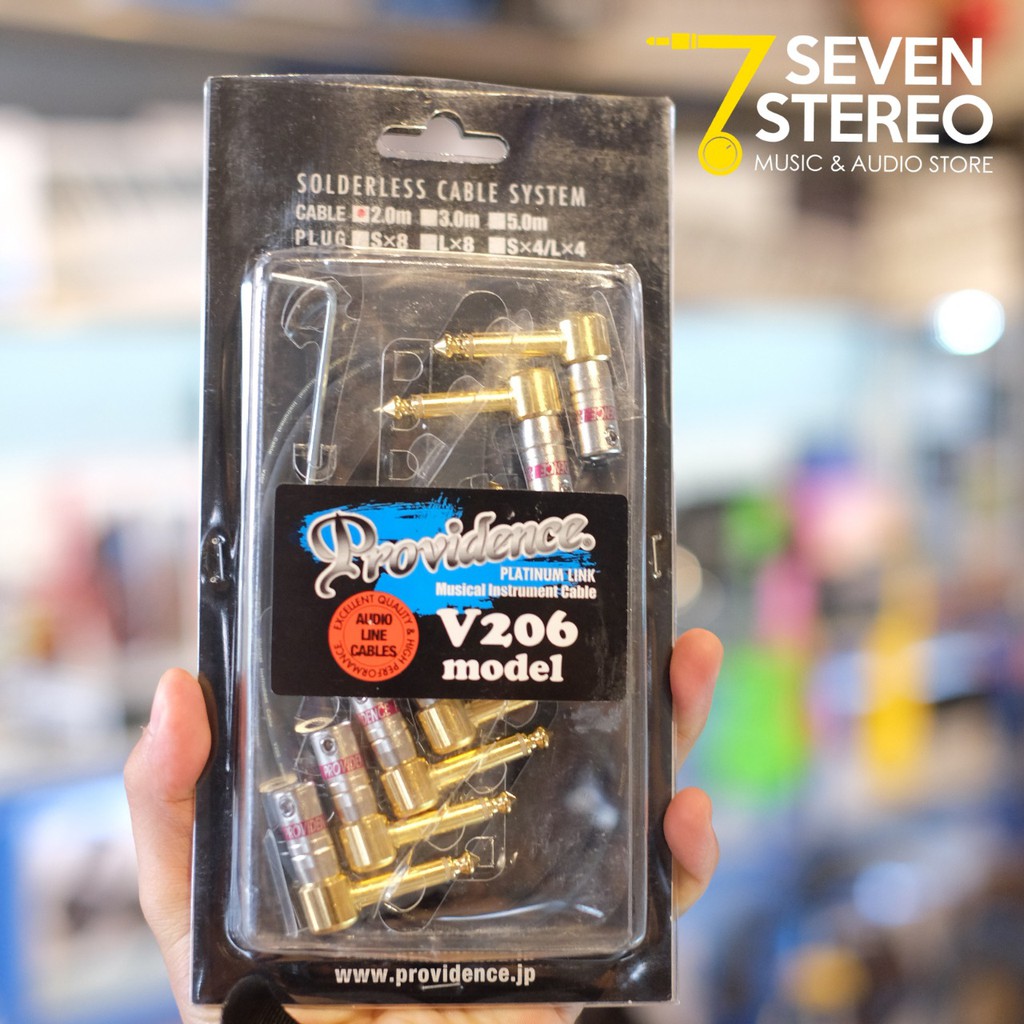

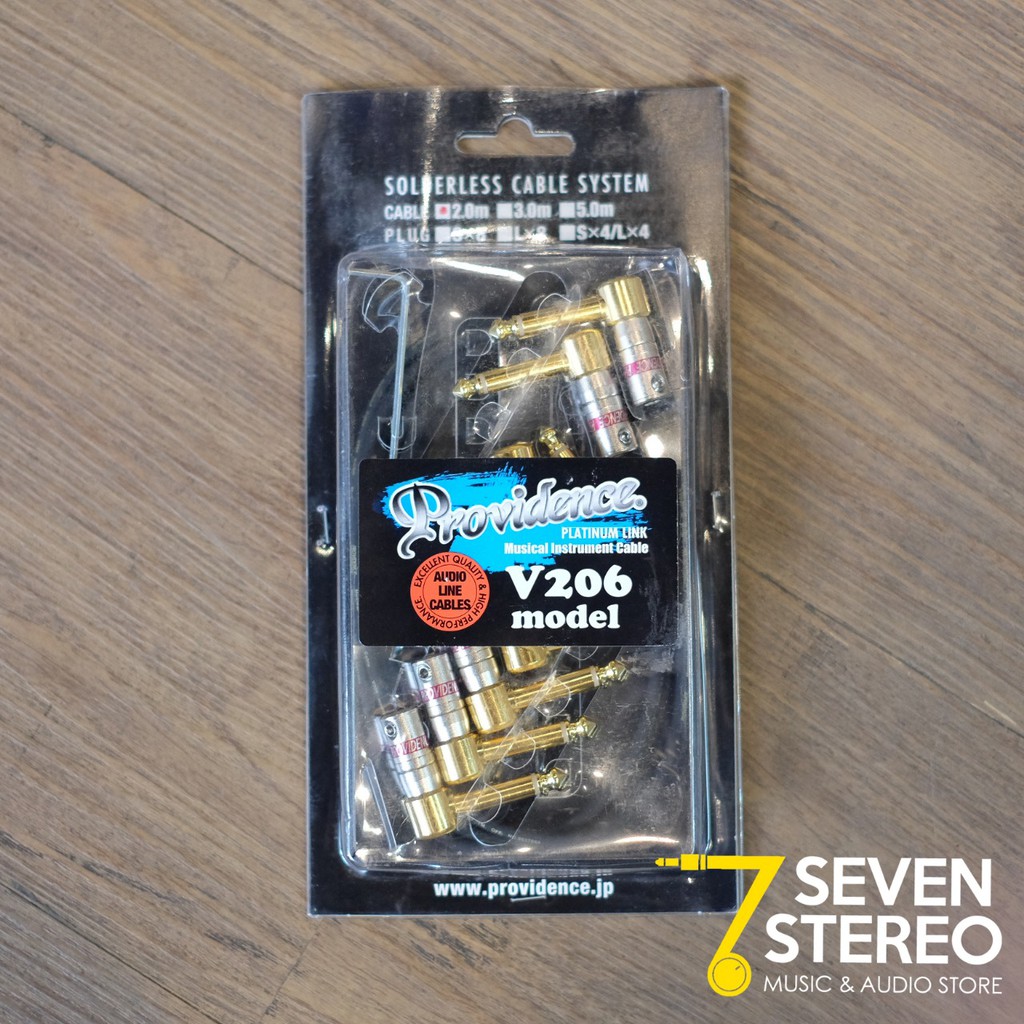

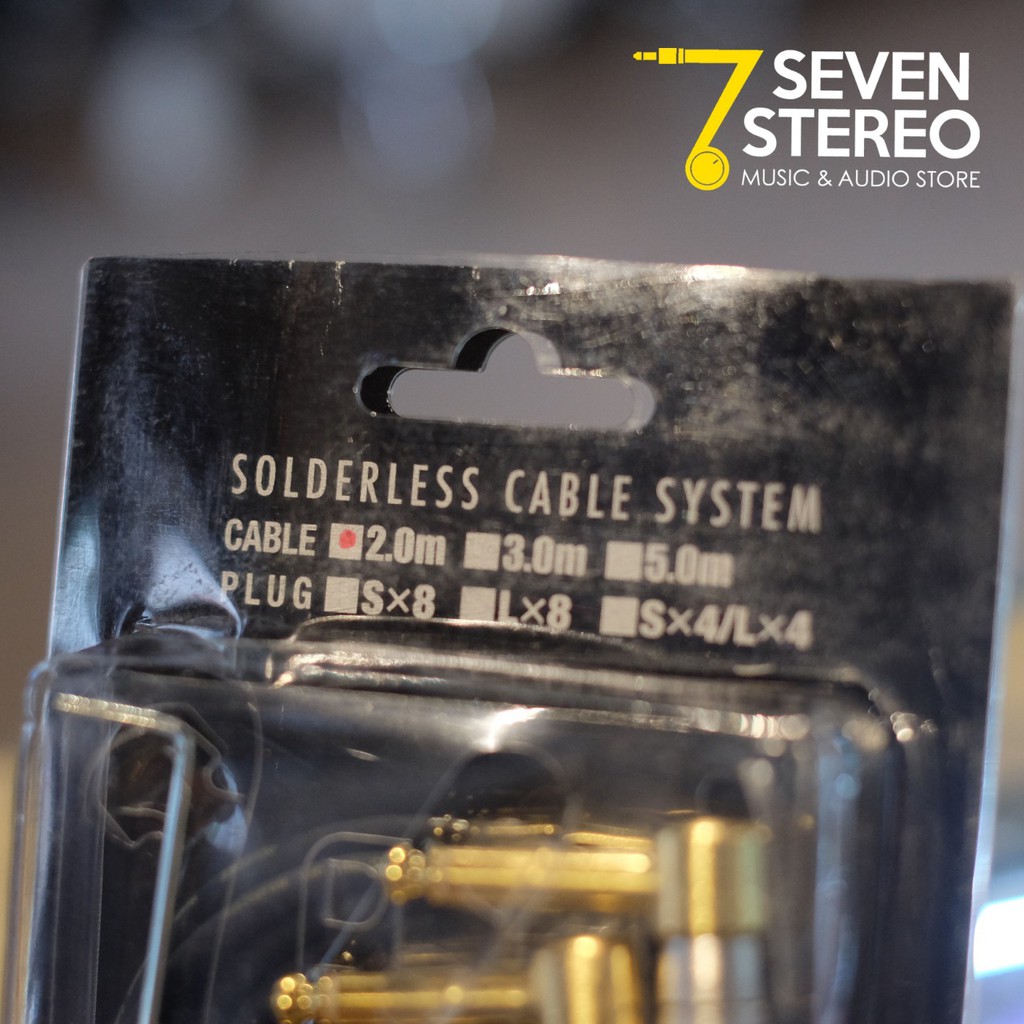

Providence V206 Platinum Link Solderless Cable - Jumper

Detail Providence V206 Platinum Link Solderless Cable - Jumper

With specially designed plugs that can directly screw-clamp the cable without the need for soldering, the Platinum Link V206 model makes it easy to create high-quality cables of any length up to 5 meters. The cable as well as the NP-20 and NP-20L plugs have been newly designed for the V206 model. A VLK1 OFC conductor and tin-plated super-high-density braided shield plus carbon-impregnated conductive vinyl sheath result in a thin, flexible cable that offers excellent electromagnetic noise rejection. Picking nuances come through with clarity in an overall sound that is tight and powerful. Gold-plated one-piece Providence NP-20 or NP-20L (L-angle) plugs attach securely to the cable via a needle at the rear end of the plug and two screws in the plug cap (registered utility model) for a secure mechanical and electrical connection as well as great sound. The mechanical strength of this 2-screw system is considerably greater than conventional designs, minimizing the possibility that the cable will be pulled out of the plug.
The V206 model is available in 3 meter and 5 meter lengths that can be cut and trimmed as required. The NP-20 and NP-20L plugs are sold separately.

V206 Specifications
Providence with VLK1 OFC
Conductor Size : 0.18mm2
Construction(No./mm) : 16/0.12 OFC
Diameter : 0.55mm
Insulation Thickness : 0.98mm(0.05)
Diameter : 2.50mm
Inner Jacket Thickness : 0.25mm
Diameter : 3.00mm
Shield Diameter : 3.50mm
Jacket Thickness : 0.50mm(0.05)
Diameter : 4.00mm
Maximum conductor resistance(20C) : 100.00(/km)
Capacitance(1kHz) : Approx.160(pF/m)

Gambar produk
