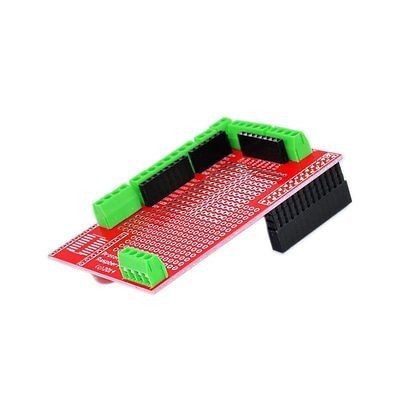

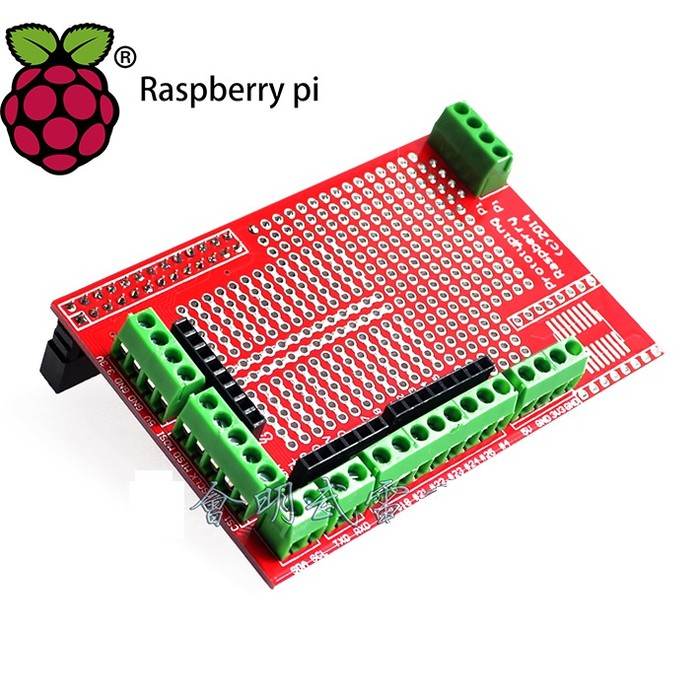

Prototyping Shield for Raspberry Pi 3/ Pi 2 Model B+ Prototyping Plate

Detail Prototyping Shield for Raspberry Pi 3/ Pi 2 Model B+ Prototyping Plate

1. The whole board is produced by the immersion gold process. All Immersion Gold board hole spacing, are standard registration 2.54mm (100ml). The IC that is compatible with the DIP package is directly soldered to the upper end for prototype experiments.

2. Expand the IO port, can be inserted directly with Bread line row home, a great party will use the fastest speed to achieve your creative play on a prototype extended version come.

3. The IO port has a terminal output. When connecting an external module, you can screw the normal wire onto the terminal. Suitable for Raspberry Pi and external modules, wiring links.

4. Due to the large difference between the high and low components of the motherboard, the support is more difficult. This section uses a custom-made mother and silicone pad as the support for the prototype board.


This product contains only one Raspberry Pi prototype extension Prototyping Pi Plate
