PROMO !!!! Motor DC 775 12-24v High Torsi Speed Dinamo

Hobi & Koleksi > Hobi & Koleksi Lainnya > PROMO !!!! Motor DC 775 12-24v High Torsi Speed Dinamo
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail PROMO !!!! Motor DC 775 12-24v High Torsi Speed Dinamo


Video perkenalan produk PROMO !!!! Motor DC 775 12-24v High Torsi Speed Dinamo. Sumber: Shopee.

Mesin Power Tools DIY
Menggunakan kawat kumparan lebih besar ~ Lebih Kencang dan Lebih Kuat
Berat bersih motor mencapai 350gr (bandingkan dengan motor 775 lain yang berkawat kecil dan berkualitas rendah)

Motor 12v-24v ini berkekuatan besar yang cocok digunakan power tools, DIY,pompa dc sprayer dan semua peralatan yang memerlukan kecepatan dan kekuatan.

Kelebihan:
1. Torsi besar
2. High Speed: 4000-15000RPM (12v-24v No Load)
3. Memakai ball bearing: putaran lebih ringan, cepat dan senyap. Umur motor menjadi lebih lama.
4. Sumbu axis bentuk D mencegah selip/licin saat dipakai pada kecepatan tinggi.
5. All metal cover, aman dari benturan.

*Spesifikasi:
Tegangan kerja: 12v (6v ~ 30v DC)

No-load speed: 4000 - 15000RPM (4000 ~ 48000 RPM)
Putaran/Speed dan Torsi tergantung dari Arus Input, Tegangan Input, dan Kualitas Sumber Daya yang dipergunakan.
Kutub positif dan negatif Dapat dihubungkan ke dua pin motor
jika koneksi terbalik, arah putaran akan berlawanan.

Disarankan memakai adaptor/power supply minimal 12V 5A untuk hasil yg maximal

No-load current: 1A (mantap!)
Tinggi step: 4.5mm
Diameter step: 17.5mm
Diameter motor: 42mm
Panjang badan motor: 67mm
Panjang as: 17mm
Diameter as: 5mm
Jarang lobang baut: 29mm
Ukuran lobang baut: M4
Jumlah lobang baut: 2

harga untuk satu pcs motor dinamo 775 hight torsi

DIY Power Tools Machine Using bigger coil wire ~ Faster and Stronger The net weight of the motor reaches 350gr (compare with other 775 motors which have small wires and are of low quality)

This 12v-24v motor is very powerful which is suitable for power tools, DIY, dc sprayer pumps and all equipment that requires speed and power

Excess:
1. Big torque
2. High Speed: 4000 RPM (12v-24v No Load)
3. Wearing ball bearings: lighter, faster and quieter rotation. Motor life becomes longer.
4. The D shape axis prevents slipping/slippery when used at high speeds.
5. All metal cover, safe from impact.

*Specification: Working voltage: 12v(6v~30v DC)

No-load speed: 4000 RPM (4000~48000 RPM) Rotation / Speed ​​and Torque depending on the Input Current, Input Voltage, and the Quality of the Power Source used.
Positive and negative poles Can be connected to two motor pins if the connection is reversed, the direction of rotation will be opposite.
It is recommended to use an adapter / power supply of at least 12V 5A for maximum results No-load
current:
1A (steady!) Step height: 4.5mm Step diameter: 17.5mm Motor diameter: 42mm Motor body length: 67mm Axle length: 17mm Axle diameter: 5mm Rare bolt hole: 29mm Bolt hole size: M4 Number of bolt holes:
2 price for one pcs dynamo motor 775 hight torque

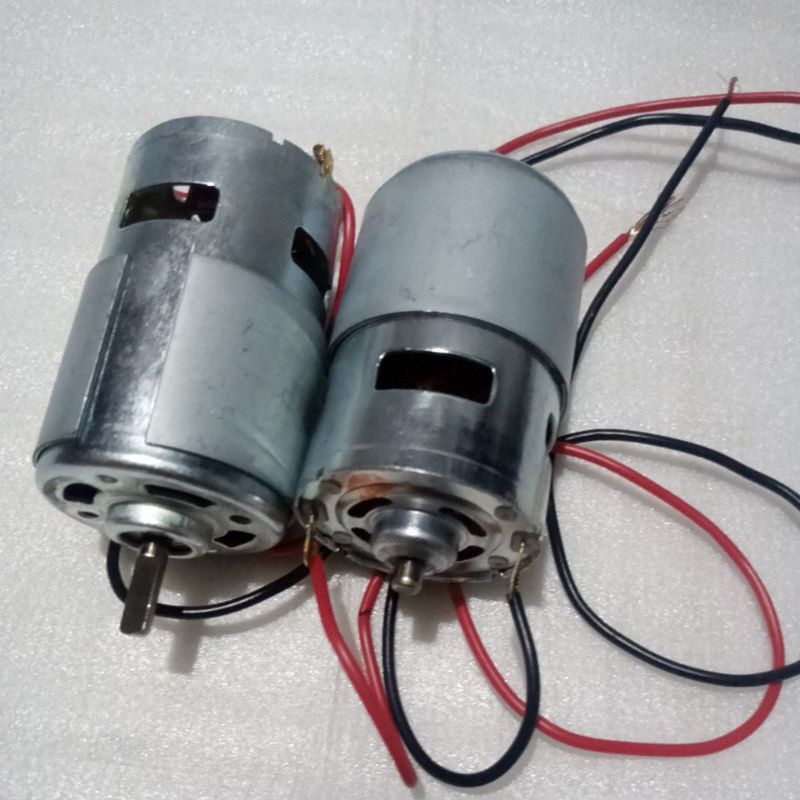

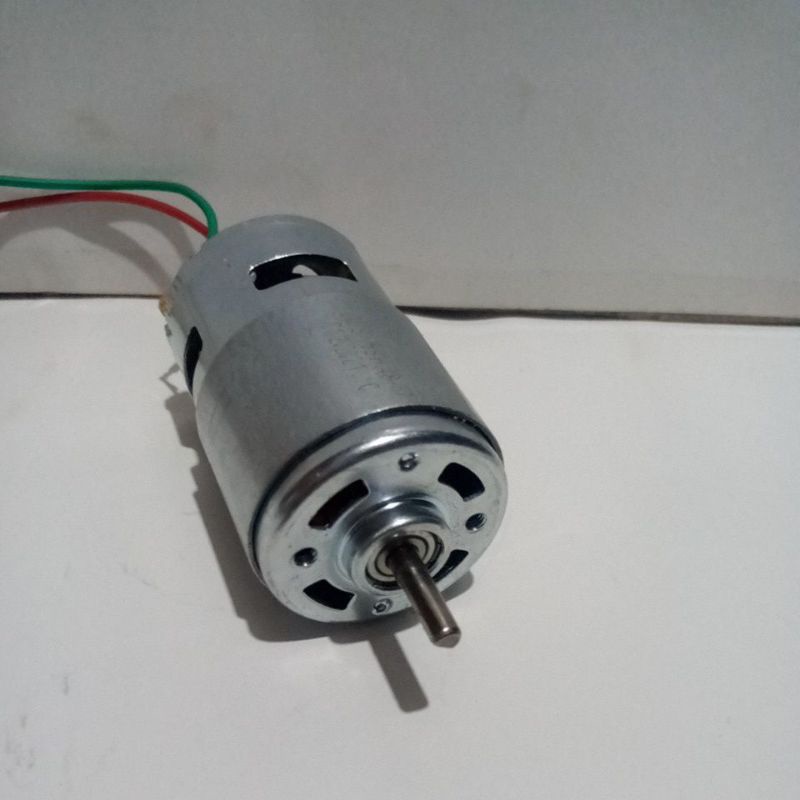

Gambar produk
