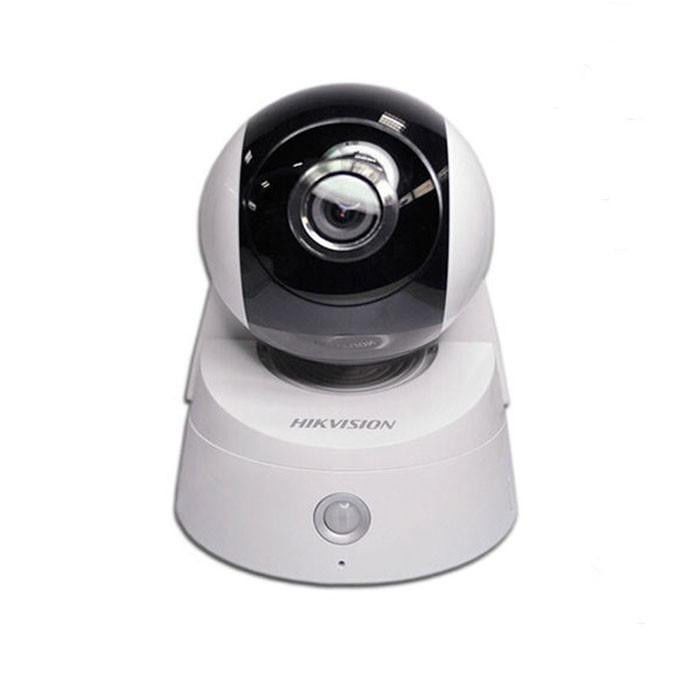

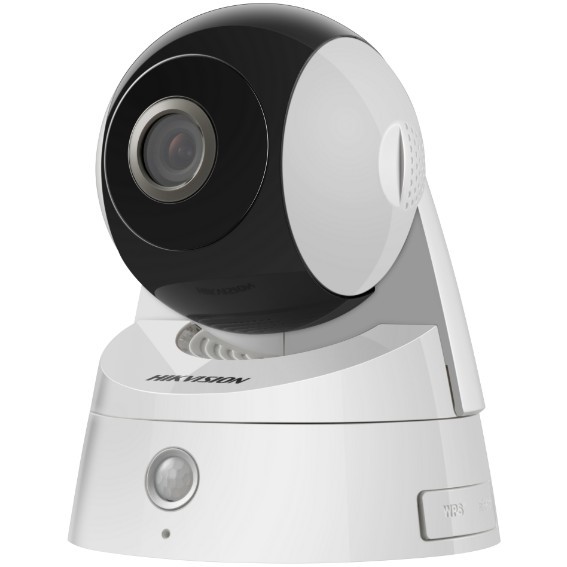

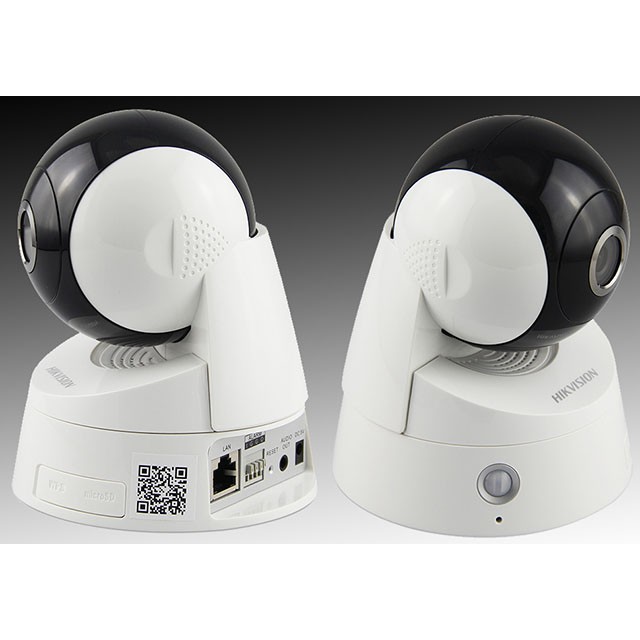

Promo Hikvision IR PT Camera DS-2CD2Q10FD-I(W) - Indoor,WiFi,Pan & Tilt

Detail Promo Hikvision IR PT Camera DS-2CD2Q10FD-I(W) - Indoor,WiFi,Pan & Tilt

* Up to 1.0 megapixel (1280 720 @ 30 fps) resolution
* Standard video compression with high compression ratio
* Progressive scan CMOS
* IR range approx. 10 meters
* Two-way audio
* Built-in microphone and speaker
* Support Wi-Fi, support WPS configuration with one touch(-W)
* Support PIR(Passive Infrared Detection)
* IR cut filter with auto switch
* 3D digital Noise Reduction
* Support dual stream, and the sub-stream for mobile surveillance
* Support Pan & Tilt
* Support Rotate Mode, Backlight Compensation, Digital Wide Dynamic Range, Auto-electronic shutter and so on
* Other functions: heartbeat, mirror, watermark etc.

It is suitable for indoor monitor space with HD image quality like small market, home, office. In addition, it can be used in small range monitor space like unattended storage, hall, accounting office, motor room, garage and so on.

Specifications:
Model
parameters DS-2CD2Q10FD-I(W)
1.0 Megapixel CMOS PT Camera
Camera
Image Sensor 1/4" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
Shutter Speed 1/25 s to 1/100,000 s
Lens 4mm@ F2.0, Angle of view: 79 (2.8mm, 6mm optioanl)
Lens Mount M12
Day &Night IR cut filter with auto switch
Pan & Tilt Pan:0 - 360, Tilt: -15 - 90
Digital Noise Reduction 3D Digital Noise Reduction
WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 encoding level BaseLine Profile/Main Profile
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.726) / 32~128Kbps(MP2L2)
Max. Resolution 1280 720
Frame Rate 50 Hz: 25 fps (1280 720), 25 fps (704 576), 25 fps (640 480)
60 Hz: 30 fps (1280 720), 30 fps (704 576), 30 fps (640 480)
Image Settings Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Backlight compensation Yes, zone optional
ROI Yes, up to 4 configurable areas
Network
Network Storage NAS
Alarm Trigger Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage full, storage error
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Standard ONVIF, PSIA, CGI, ISAPI
General function Flash-prevention, dual stream, heartbeat, mirror, password protection, video cover, watermark
Interface
Audio Input 1 built-in microphone
Audio Output 1-ch 3.5 mm audio interface, 1 built-in speaker
Communication Interface 1 RJ45 10M/100M Ethernet interface
Alarm input 1
Alarm output 1
Wi-Fi Specification(Only for the products with Wi-Fi module built-in)
Wireless Standards IEEE802.11b, 802.11g, 802.11n Draft
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power 11b: 171.5dBm @ 11Mbps
11g: 141.5dBm @ 54Mbps
11n: 12.51.5dBm
Receive Sensitivity 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
