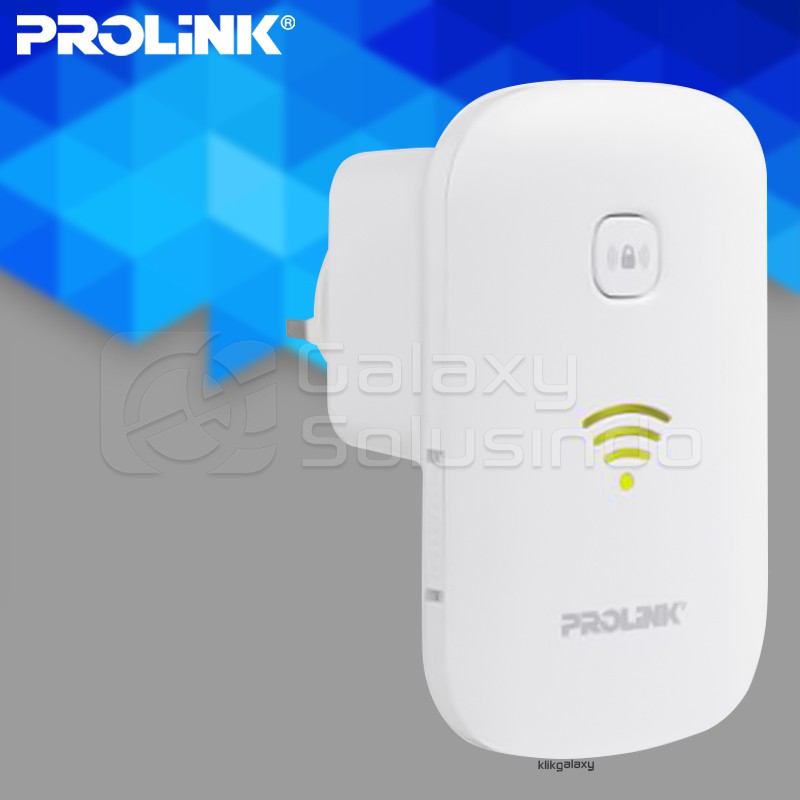

PROLINK PEN1201 3 in 1 WiFi Extender (Repeater, Ap, Router)

Detail PROLINK PEN1201 3 in 1 WiFi Extender (Repeater, Ap, Router)

SPECIFICATION :

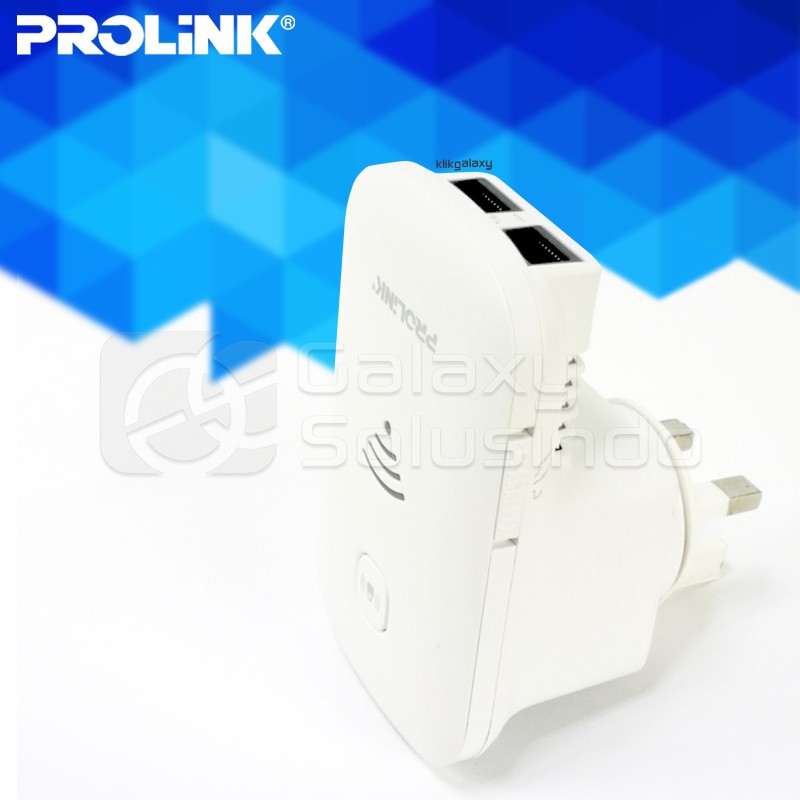

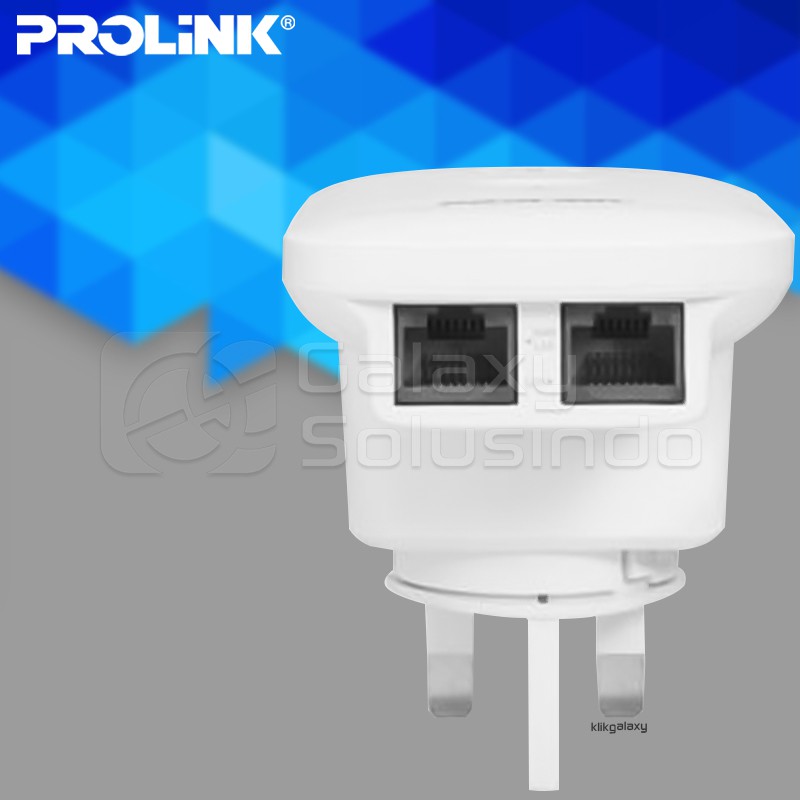

Interface 2x 10/100Mbps Ethernet ports (RJ45)
Button / Switch 1x WPS/Pairing button 1x Reset Button 1x Operation Mode Switch 1x Power On/Off Switch
LED 1x Wi-Fi Signal and Status
Power Consumption Approximately 3W

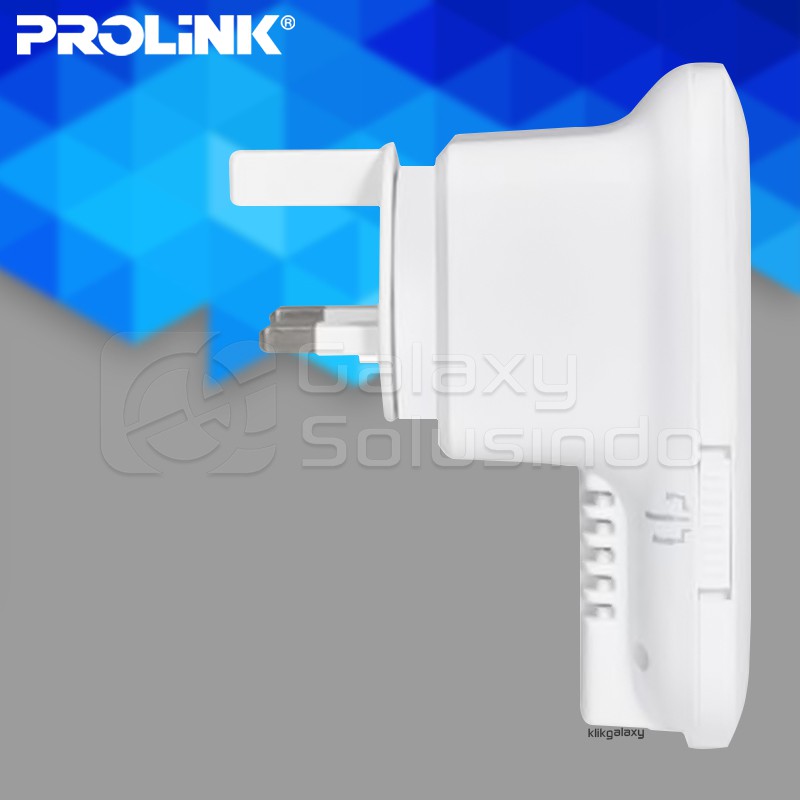

Power Option Direct wall-plug
Rated Voltage/Frequency Input: 100 - 240 VAC, 50/60Hz
WIRELESS
Wireless Channels / Frequency 2.4GHz: 1 ~ 13 (2412 - 2462 MHz)
Wireless Channel Bandwidth 2.4GHz: 20/40MHz
Wireless Coverage Up to 1000 sq. ft. (indoor)
Wireless Standards IEEE 802.11b/g/n
Wireless Frequency Band 2.4GHz Wireless-N
Wireless Link Rate 11n: Up to 300Mbps (dynamic) 11b: Up to 54Mbps (dynamic) 11g: Up to 11Mbps (dynamic)
Wireless Transmit Power < 20dBm (EIRP)
Wireless Antenna 2x Internal 3dBi Antenna
Wireless Security 64/128/152-bit WEP WPA-PSK / WPA2-PSK
SOFTWARE
Internet (WAN) Connection Type Repeater mode AP mode Router mode (Dynamic IP, Static IP, PPPoE)
Device Management Web Browser / Mobile UI Domain Login
DHCP Setting DHCP Server, DHCP Client
Wireless Functions WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistics
Dimension & Weight
Dimension 99 x 60 x 70 mm (L x W x H)
Weight 150g
Package Content
1 x PEN1201 Wi-Fi Extender 1 x Quick Installation Guide 1 x RJ-45 LAN Cable
