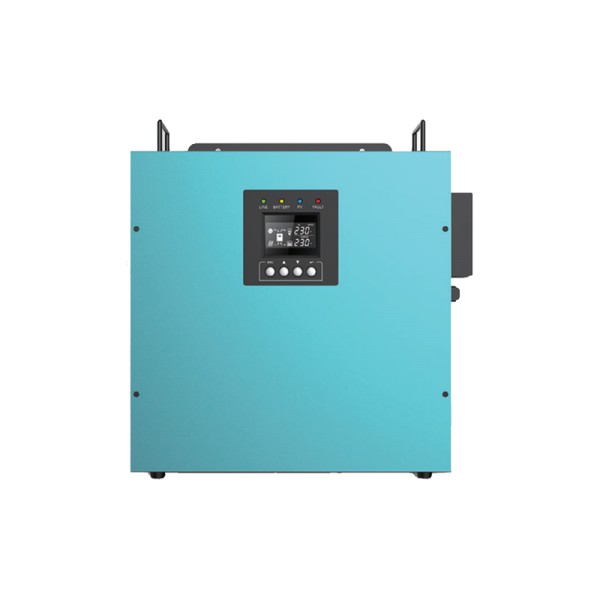

PROLINK IPS5003

Merek: Prolink | Lihat selengkapnya produk Komputer & Aksesoris dari Prolink
Komputer & Aksesoris > Komponen Desktop & Laptop > UPS & Stabilizer > PROLINK IPS5003
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:New Mandiri ComputerLihat semua produk Komputer & Aksesoris oleh New Mandiri Computer
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail PROLINK IPS5003

GENERAL
Rated Power 5000VA/4000W
Dimension (W x H x D) (mm) 385 x 382 x 148
Net Weight (kgs) 32
INPUT
Nominal Voltage 220-240Vac
Voltage Range 170 ~280Vac(narrow)
90~280Vac(wide)

Frequency 50/60Hz (Auto sensing)
OUTPUT
Nominal Voltage (Batt.mode) 220-240Vac
Frequency Range(batt.mode) 50Hz/60Hz ±1%
Waveform (Batt.mode) Pure Sine Wave
Transfer Time Narrow mode<8ms
Wide mode<40ms

Overload Capability 1min@ >110%
0s@>120%

Overload Protection Circuit breaker or inner firmware protection
Protection Discharge, over-charged, over-load, short-circuit protection
BATTERY
Nominal Battery Voltage 48VDC
Float Charging Voltage 54V
Charging Algorithm 3-stage charging
Charging Current 10A/20A(default)/30A/40A
INDICATORS & MANAGEMENT
Display LCD
Alarm Batt. Mode, low battery, overload, fault, etc
Auto Recharge Yes
Auto Restart Yes
Power Management Software Yes
RS232 Yes

Gambar produk

PROLINK IPS5003
PROLINK IPS5003
