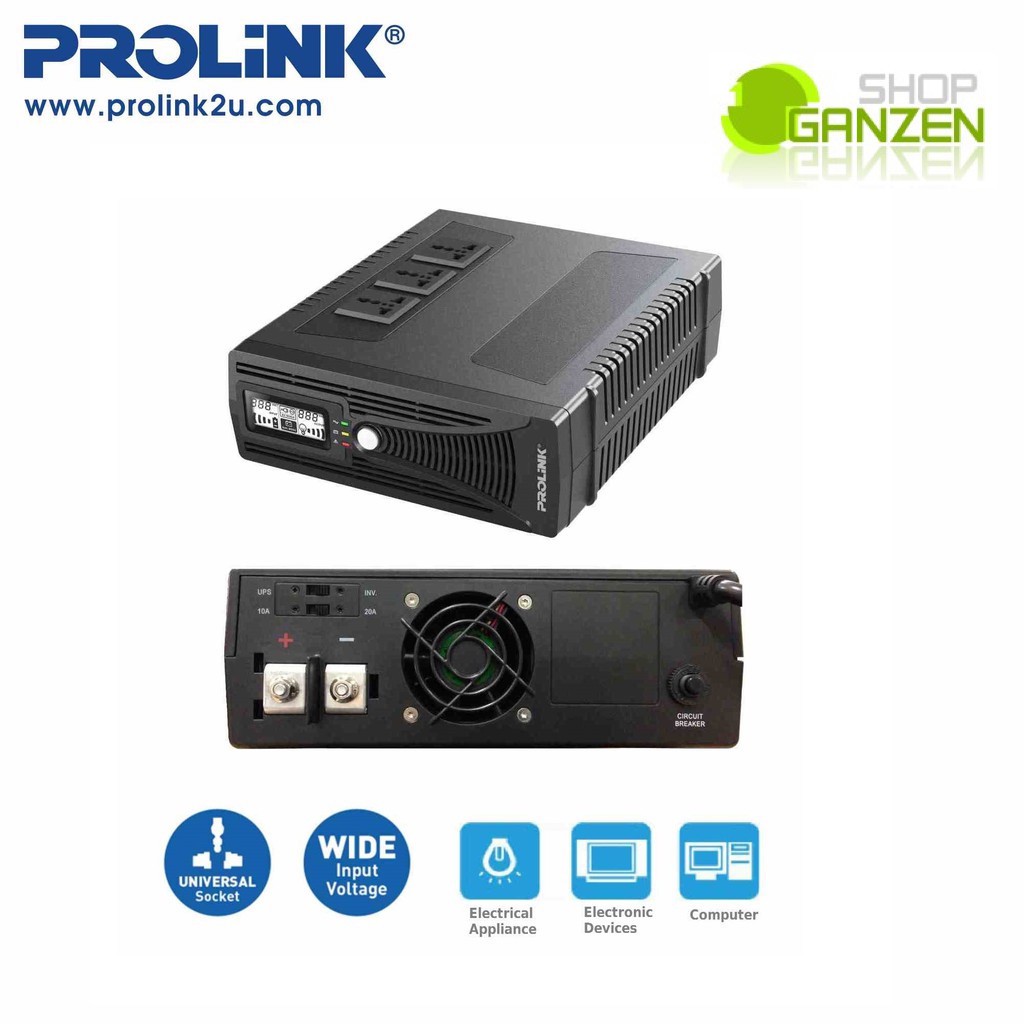

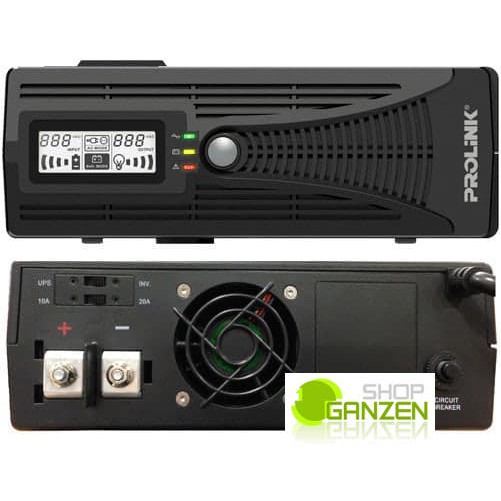

Prolink IPS1200 / IPS 1200

Detail Prolink IPS1200 / IPS 1200

Specification:
- Model : IPS1200
- Capacity : 1200VA
- Input :
Nominal Voltage : 220/ 230/ 240VAC
Voltage Range :
Narrow Range : 170 280 VAC (UPS mode)
Wide Range : 90 - 280VAC
- Output :
Nominal Voltage : 230VAC
Output Voltage Regulation (Battery Mode) : +10%/ -18%
Frequency : 50Hz or 60Hz
Frequency Regulation : +/-0.1 Hz (Bat. Mode)
Transfer Time : 10 - 20ms Typical, 40ms (max)
Waveform : Simulated Sinewave
- Battery :
Charger Current : 10Amp / 20Amp (Selectable)
DC Voltage : 12V
Overcharge Protect : 15V
- Indication :
LED Display:
Fault Red Lighting
Battery Mode - Yellow
Low Battery Yellow flashing
Shutdown Mode Yellow flashing
Charging Mode - Green flashing
Overload - Red flashing
LCD Display :
Input Voltage, Output Voltage, Load level, Battery level, Fault alarm
- Alarm :
Sounding :
Overload - Sounding every 0.5 second
Low Battery - Sounding every 2 secounds
Overcharging Fault Continuously sounding
- Efficiency :
AC to AC : >95%
DC to AC : >80%
- Physical :
Dimension (mm) D x W H : 293 x 231.5 x 82.5
Net Weight (kgs) : 2.35
- Environment :
Humidity : 0~95% Relative Humidity. 0~40C
Noise Level : Less than 50dBA
- Package Content :
Included :
1 x IPS1200 / IPS2400 LCD Inverter
1 x Battery Cable (Set)
1 x User Manual
