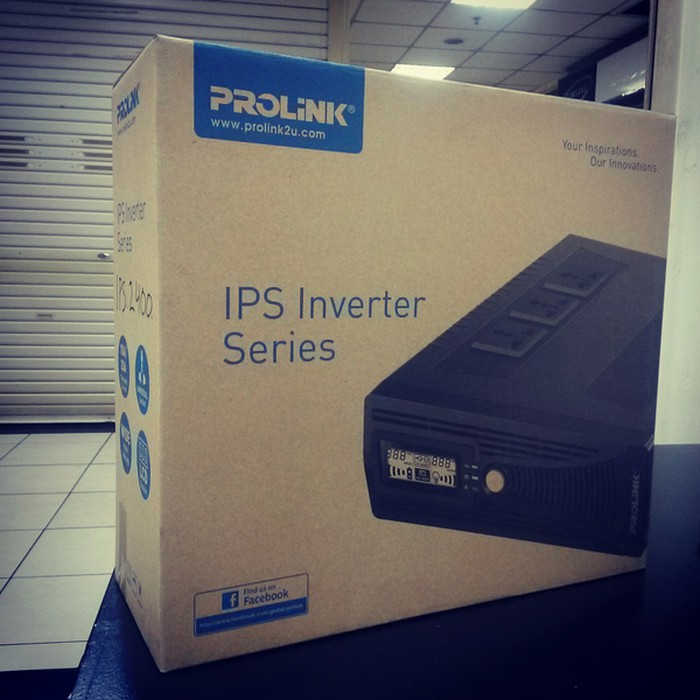

PROLINK IPS1200 1200VA INVERTER POWER SUPPLY WITH LED AND LCD

Detail PROLINK IPS1200 1200VA INVERTER POWER SUPPLY WITH LED AND LCD

PROLINK IPS1200 1200VA INVERTER POWER SUPPLY WITH LED AND LCD

- Simulated sine wave inverter
- 10A charging current
- LCD and LED indicators
- Overload and short circuit protection
- Auto restart while AC is recovering

Specification:
- Model : IPS1200
- Capacity : 1200VA
- Input :
Nominal Voltage : 220/ 230/ 240VAC
Voltage Range :
Narrow Range : 170 280 VAC (UPS mode)
Wide Range : 90 - 280VAC
- Output :
Nominal Voltage : 230VAC
Output Voltage Regulation (Battery Mode) : +10%/ -18%
Frequency : 50Hz or 60Hz
Frequency Regulation : +/-0.1 Hz (Bat. Mode)
Transfer Time : 10 - 20ms Typical, 40ms (max)
Waveform : Simulated Sinewave
- Battery :
Charger Current : 10Amp / 20Amp (Selectable)
DC Voltage : 12V
Overcharge Protect : 15V
- Indication :
LED Display:
Fault Red Lighting
Battery Mode - Yellow
Low Battery Yellow flashing
Shutdown Mode Yellow flashing
Charging Mode - Green flashing
Overload - Red flashing
LCD Display :
Input Voltage, Output Voltage, Load level, Battery level, Fault alarm
- Alarm :
Sounding :
Overload - Sounding every 0.5 second
Low Battery - Sounding every 2 secounds
Overcharging Fault Continuously sounding
- Efficiency :
AC to AC : >95%
DC to AC : >80%
- Physical :
Dimension (mm) D x W H : 293 x 231.5 x 82.5
Net Weight (kgs) : 2.35
- Environment :
Humidity : 0~95% Relative Humidity. 0~40C
Noise Level : Less than 50dBA
- Package Content :
Included :
1 x IPS1200 / IPS2400 LCD Inverter
1 x Battery Cable (Set)
1 x User Manual
