Projector - ViewSonic - PA503XE

Detail Projector - ViewSonic - PA503XE

PROYEKTOR VIEWSONC PA503X
Specifikasi :
- Resolution XGA ( 1024 x 768 )
- Throw Ratio 1.96 ~ 2.15
- Throw Distance 3.9 - 43 ft / 1.19 - 13.11 m
- Brightness (ANSI Lumens) 3,600
- HDMI Connections

Full Specifications :
- Display TYPE DLP
- RESOLUTION TYPE XGA
- RESOLUTION 1024 x 768
- BRIGHTNESS (ANSI LUMENS) 3,600
- THROW DISTANCE 3.9 - 43 ft / 1.19 - 13.11 m
- THROW RATIO 1.96 ~ 2.15
- DISPLAY SIZE (IN.) 30 - 300 in. / 0.76 - 7.62 m
- KEYSTONE
- Vertical ( 40) LENS
- 1.1x optical zoom
- LIGHT SOURCE (WATT) 190
- LIGHT SOURCE LIFE, NORMAL (HOURS) 4500
- LIGHT SOURCE LIFE, DYNAMIC ECO-MODE (HOURS) 15000
- COLOR DEPTH 1.07B Color (R/G/B 10bit)
- DYNAMIC CONTRAST RATIO 22,000:1
- ASPECT RATIO 4:3

Video Signal
- FREQUENCY HORIZONTAL 15K~102KHz
- FREQUENCY VERTICAL 23~120Hz
- Compatibility
- PC RESOLUTION (MAX)
- VGA (640 x 480) to WUXGA_RB (1920 x 1200)
- MAC RESOLUTION (MAX)
- VGA (640 x 480) to WUXGA_RB (1920 x 1200)
- Connector
- MINI USB TYPE B 1
- AUDIO OUTPUT (MINI JACK) 1
- 3.5MM AUDIO IN 1
- CONTROL (RS232) 1
- HDMI 1.4 1
- VGA IN 2
- VGA OUT 1
- COMPOSITE RCA VIDEO IN 1
Audio
- INTERNAL SPEAKERS 2W
- Power VOLTAGE
- AC 100-240V (universal), 50-60Hz
- CONSUMPTION (TYPICAL) 260W
- STAND-BY 0 .5W
Operating Conditions
- TEMPERATURE 32-104 F (0 - 40 C)
- Weight (imperial) NET (LBS) 4.9
- GROSS (LBS) 7.1
- Weight (metric)
- NET (KG) 2.2
- GROSS (KG) 4.2
- Dimensions (imperial) (wxhxd)
- PACKAGING (IN.) 14.4 x 11.8 x 7.4
- PHYSICAL (IN.) 11.6 x 4.3 x 8.6
- Dimensions (metric) (wxhxd)
PACKAGING (MM) 365 x 188 x 300
PHYSICAL (MM) 294 x 110 x 218

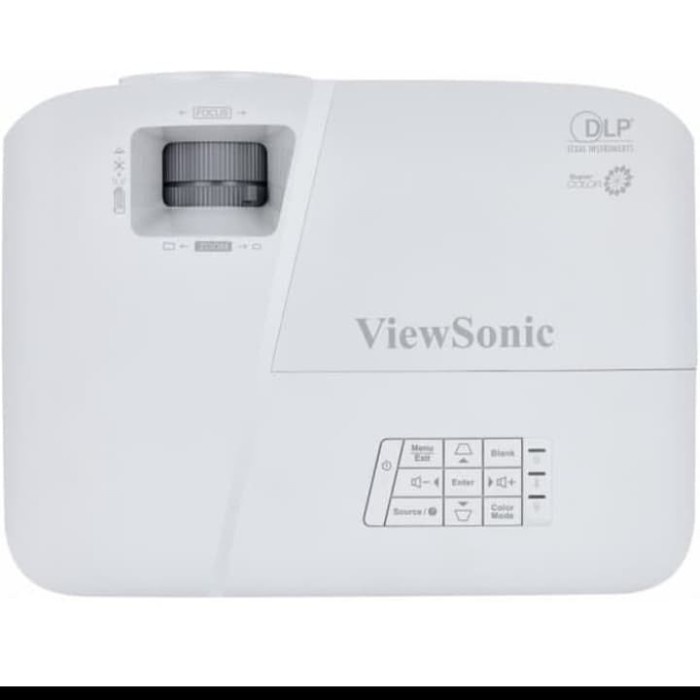

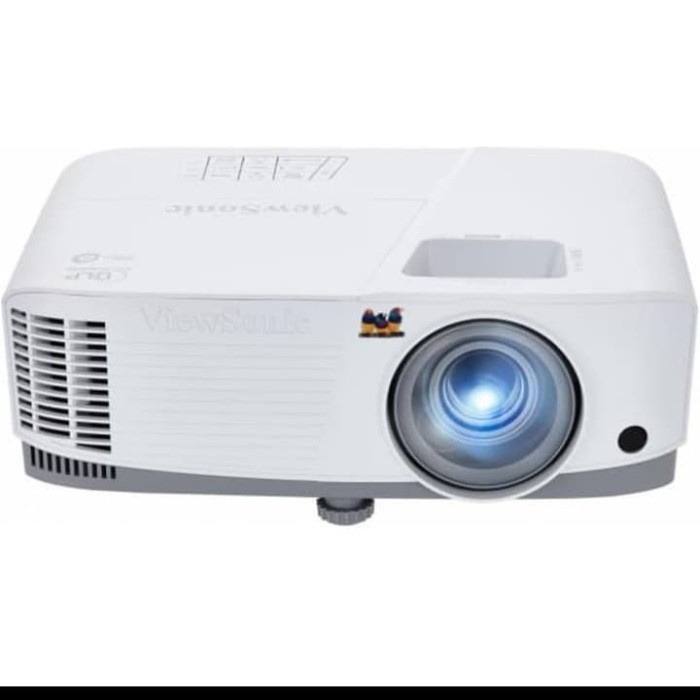

Gambar produk
