Projection System 3LCD Technology, RGB liquid crystal shutter
LCD Panel 0.76 inch
Colour Light Output 5,000 Lumen-3,500 Lumen (economy) In accordance with IDMS15.4
White Light Output 5,000 Lumen - 3,500 Lumen (economy) In accordance with ISO 21118:2012
Resolution WXGA, 1280 x 800, 16:10
Aspect Ratio 16:10
Contrast Ratio 10,000 : 1
Lamp 280 W, 200 W (economy mode), 3,000 h durability, 4,000 h durability (economy mode)
Keystone Correction Auto vertical: 30 , Auto horizontal 30
Projection Ratio 1.38 - 2.28:1
Zoom Manual, Factor: 1 - 1.6
Projection Size 30 inches - 300 inches
Projection Distance Wide 0.9 m - 9 m
Projection Distance Tele 1.5 m - 14.8 m
Focal Distance 23 mm - 38.4 mm
Focus Manual
Offset 10 : 1

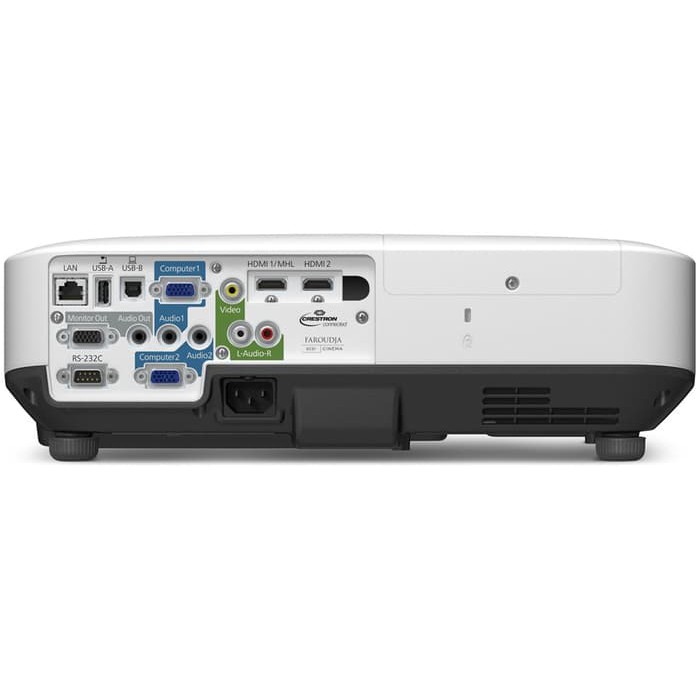

Interfaces
Wired Network, Stereo mini jack audio in (2x), Stereo mini jack audio out, MHL, Component in, Composite in, HDMI in (2x), VGA out, VGA in (2x), Wireless LAN
IEEE 802.11b/g/n, RS-232C, USB 1.1 Type A
Security Kensington lock, Security cable hole, Wireless LAN unit lock
Features Automatic keystone correction, Built-in speaker, Fit to Screen, PC Free, Quick Corner, Split-Screen-Function
