PROFESSIONAL CROSSOVER KREZT 234 KZT

Detail PROFESSIONAL CROSSOVER KREZT 234 KZT

PERFORMANCE
Bandwidth : 20 Hz to 20 kHz, +0.0-5 dB
Frequency Response : < 3 Hz to > 90 kHz, +0/-3 dB
Signal-to-Noise : Red: +4 dBu, 22 kHz measurement bandwidth
Stereo Mode : Mono Mode:
234/234XL : Low Output > 94 dB >94 dB
Low-Mid-Output : > 94 dB
Mid Output : > 93 dB
High-Mid Output : > 92 dB
High Output : 90 dB > 88 dB
Dynamic Range : > 106 dB, unweighted, any output
THD+Noise : < 0.004% at +4 dBu, 1 kHz < 0.004% at +20 dBu, 1 kHz

INPUT
Connectors : 1/4” TRS (223/234) or XLR (234/234XL)
Type : Electronically balanced/unbalanced, RF Filtered
Impedance : Balanced > 50 kΩ, unbalanced 25 kΩ
Max Input Level : > +22 dBu balanced or unbalanced
CMRR : > 40 Db, typically > 55 dB at 1 kHz

OUTPUT (223XL/234XL)
Connectors : XLR
Type : Impedance-balanced/unbalanced, RF Filtered
Impedance : Balanced 60 kΩ, unbalanced 30 kΩ
Max Input Level : +21 dBu balanced or unbalanced into 2 kΩ
or greater >+18dBm balanced/unbalanced into 600 Ω or greater


CROSSOVER FREWUENCIES:
234/234XL : Stereo Mode:
Low/High : 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low/Mid : 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High : 450 Hz to 9.6 kHz
234/234XL : Mono Mode:
Low/Low Mid : 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Low-Mid/High-Mid : 450 Hz to 9.6 kHz
High-Mid/High : 450 Hz to 9.6 kHz

POWER SUPPLY:
Operating Voltage :100 VAC 50/60 Hz, 120 VAC 60 Hz 230 VAC 50/60 Hz
Power Consumption:15 Watts
Mains Connection : IEC 320 receptacle

Perlengkapan Produk:

- 1x Unit Equealizer 234 KZT
- 1x Kabel Ac
- 1x Buku Petunjuk Penggunaan
- 1x Kartu Garansi

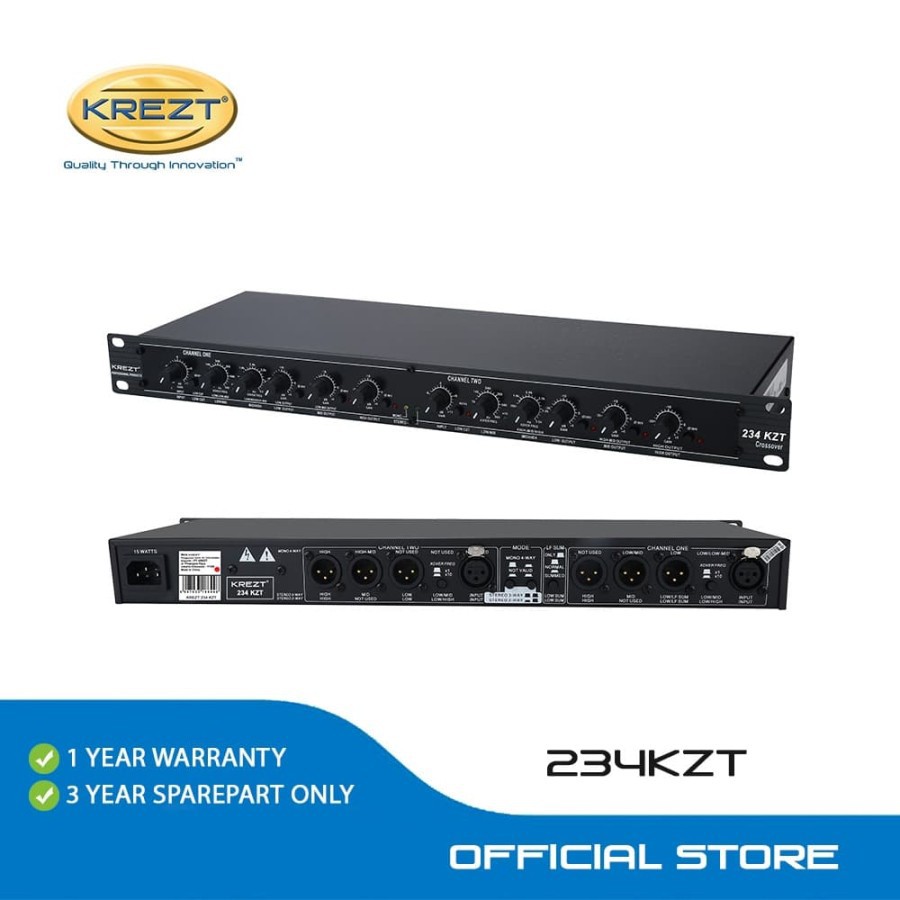

Gambar produk
