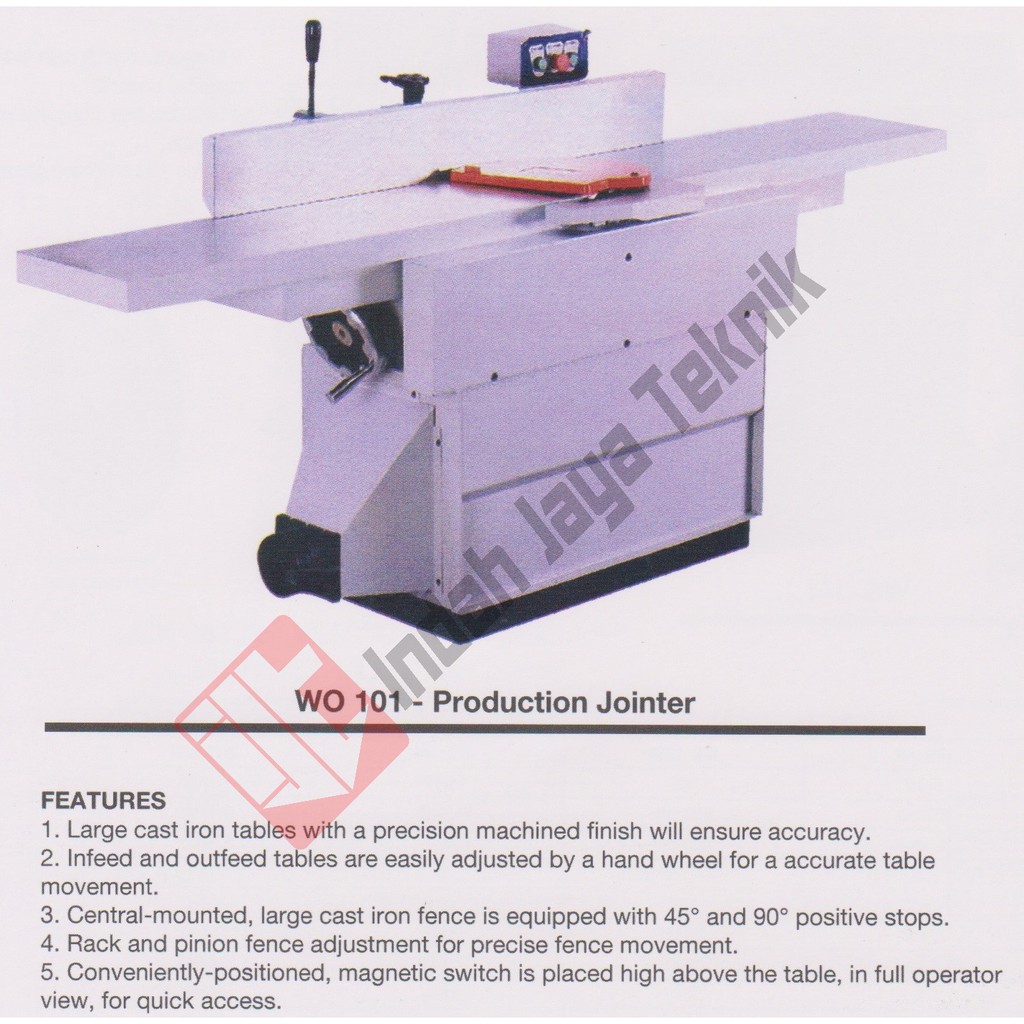

Detail Production Wood Jointer Oscar WO-101
Production Wood Jointer
Brand : Oscar
Type : WO-101
Spesifikasi :
Motor : 3 HP ( 2.200 Watt )
Cutting Width : 12" (304mm)
Cutting Depth : 1/2" (12.7mm max)
Cutting Rabbeting : 1/2" (12.7mm max)
Cutterhead Speed : 4600 RPM 18400 CPM
Cutterhead Knives : 4
Cutterhead Diameter : 3-20/17" (98")
Table Length : 2250mm
Table Length of infeed : 1090mm
Table Length of outfeed : 1090mm
Table Width : 320mm
Table Height From Floor : 820mm
Fence Size : 1195mm x 150mm
Tilt in and Out : 45
Positive Stops : 90 in , 45 out
Packing Dimensions (LxWxH) : 2300 x 720 x 1025 mm
Packing Gross Weight : 500kg
