Process Source Calibrator Signal Generator Multimeter LB02

Detail Process Source Calibrator Signal Generator Multimeter LB02

Process Calibrator LB02 multifungsi ini memiliki bentuk praktikal, kokoh, dan mudah digunakan.

Dapat berfungsi sebagai Multimeter, Source Calibrator atau Signal Generator.

The calibrator or Process Calibrator LB02 is used for basic measuring, testing and regulation techniques for setting and verifying test installations and instrumentation.


– DC V/mV
– DC mA
– Ohm
– Thermocouple Type K, R, S, B, E, J, T, N
– RTD PT-100, CU-50
– 24 VDC


Specification Process Calibrator LB02

Model: LB02
Current Output: 0-24 mA
Voltage(V) Output:0-11 V
Voltage(mV) Output: 0-110 mV
Resistance Output:20-4000Ω
Current Measurement Range: ±30 mA
Voltage(V) Measurement Range: ±30 V
Voltage(mV) Measurement Range: ±150 mV
Resistance Measurement Range: 0-999.9Ω


Kelengkapan produk:
- 1 Black Pouch
- 1 LB02 Process Calibrator
- 1 Test Cable
- 1 Micro USB Cable
- 1 User Manual

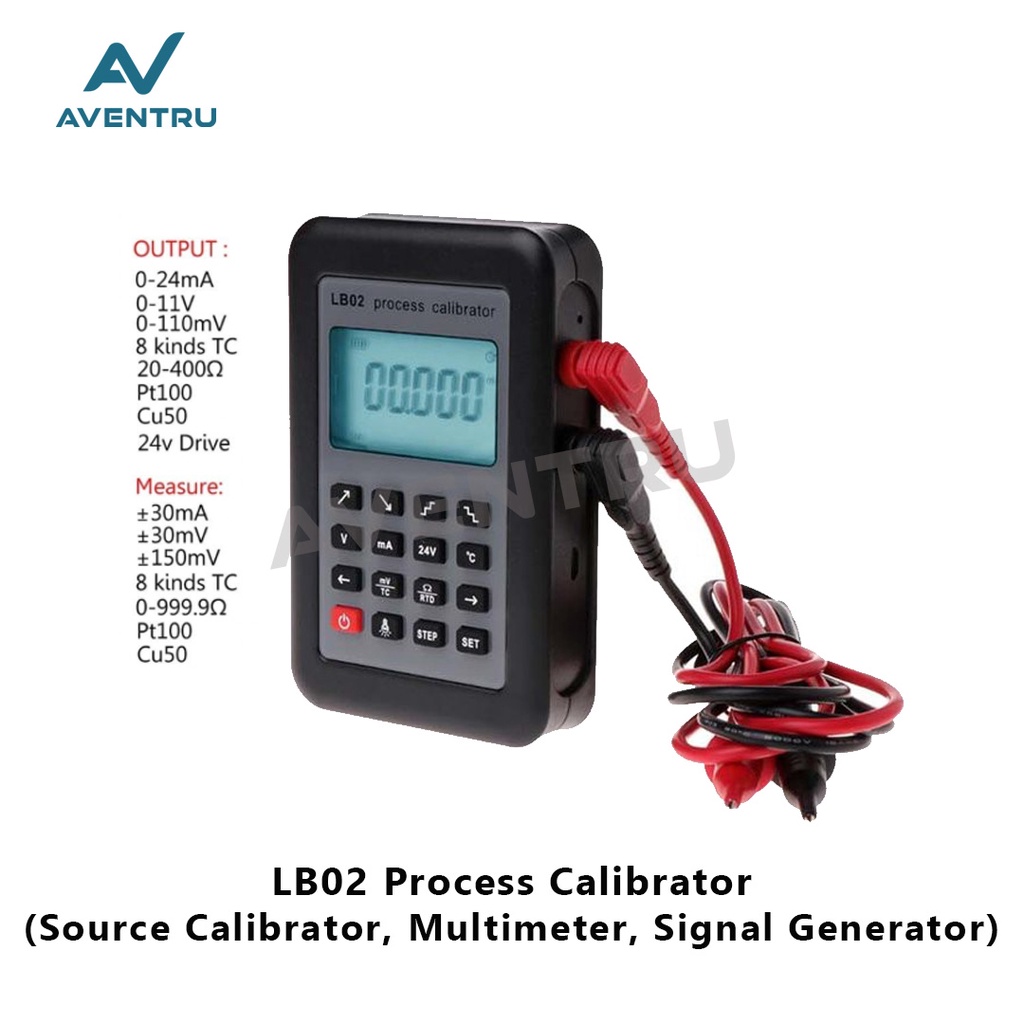

Gambar produk
