Detail PRO MINI 5V 16 MHz WITH HEADER ARDUINO PRO MINI 5V
Hi #RekanEasyWare ...EasyWare Part#: EP000062
It’s a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off-board.

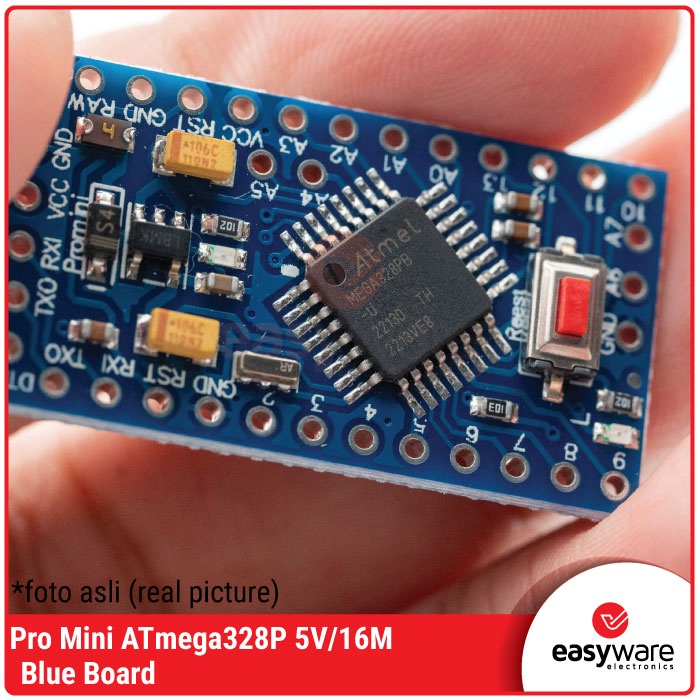

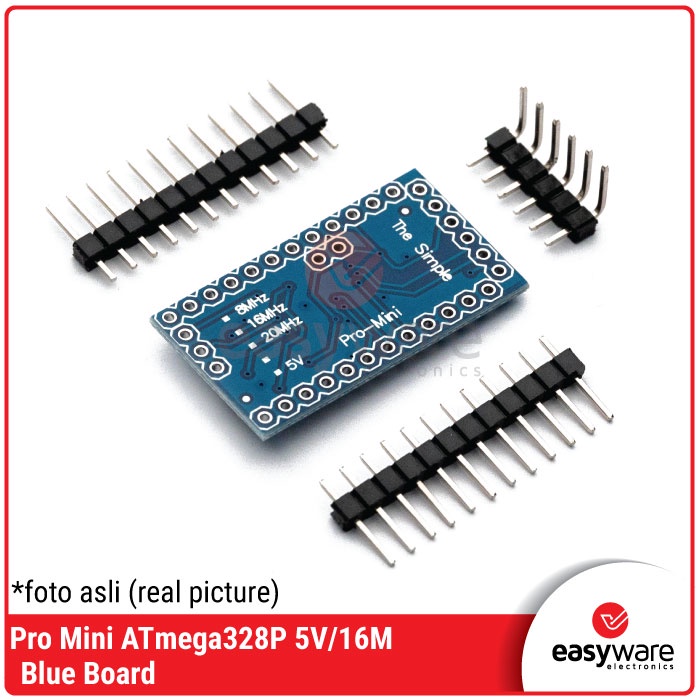

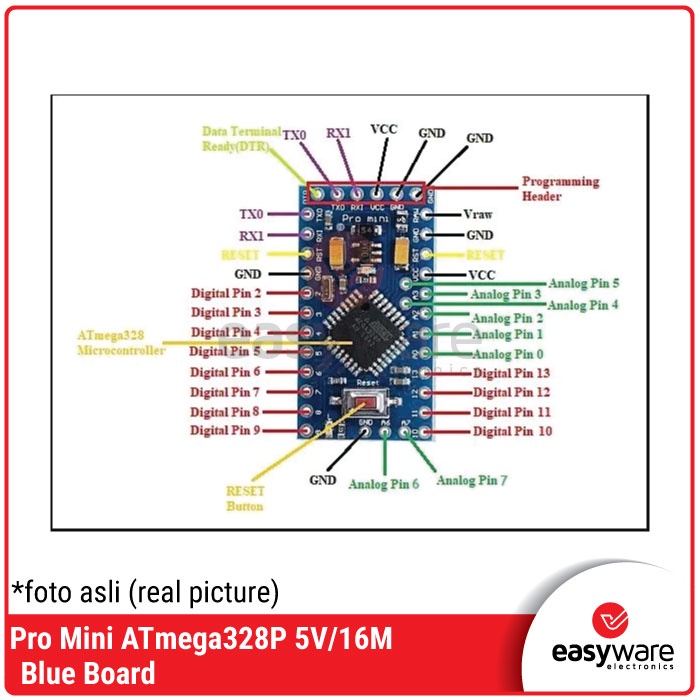

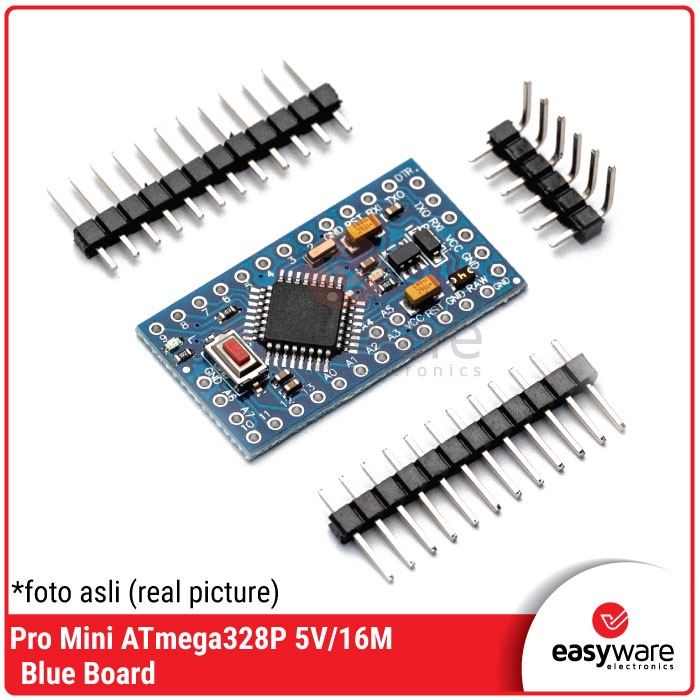

The Pro Mini is a microcontroller board base on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini Arduino is intended for semi-permanent installation in objects or exhibitions. The pin layout is compatible with the Mini Arduino.
Ringkasan:
- Microcontroller: ATmega328P
- Circuit Operating Voltage: 5V
- Clock frequency: 16MHz.
- 6 PWM port: D3, D5, D6, D9, D10, D11.
- Use For Atmel Atmega328P-AU microcontroller.
- Support serial download.
- Support 9V battery.
- A pair of TTL level serial port transceiver : RX / TX.
Kelengkapan:
- 1x Pro Mini ATMEGA328P 5V/16M Board
