Pro Micro uses Atmega32U4 5V/16M MCU development board (1567)

Detail Pro Micro uses Atmega32U4 5V/16M MCU development board (1567)

Pro Micro uses Atmega32U4 5V/16M MCU development board (1561)

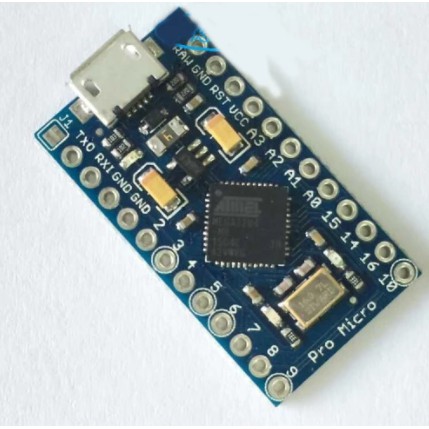

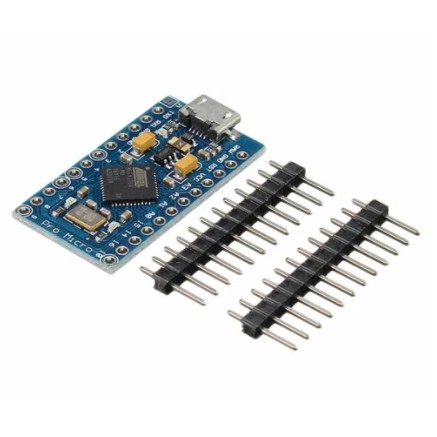

This is Arduino Pro Micro ATmega32U4 5V 16MHZ Board uses the Atmega32u4 Microcontroller. It includes an onboard USB interface which can be used to program the board and to enable the board to be used as an USB host. With its small form-factor, it can act as a USB mouse or keyboard, which is fun for making custom computer peripherals.

This tiny little board does all of the neat-o Arduino tricks that you’re familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.

Technical Details:

Dimensions (maximum): 1.3 x 0.7 in rectangle
ATMega32U4 running at 5V/16MHz
Supported under Arduino IDE
On-Board USB connector for programming
9 x 10-bit ADC pins
12 x Digital I/Os (5 are PWM capable)
Rx and Tx Hardware Serial Connections
One of the smallest Arduino boards
