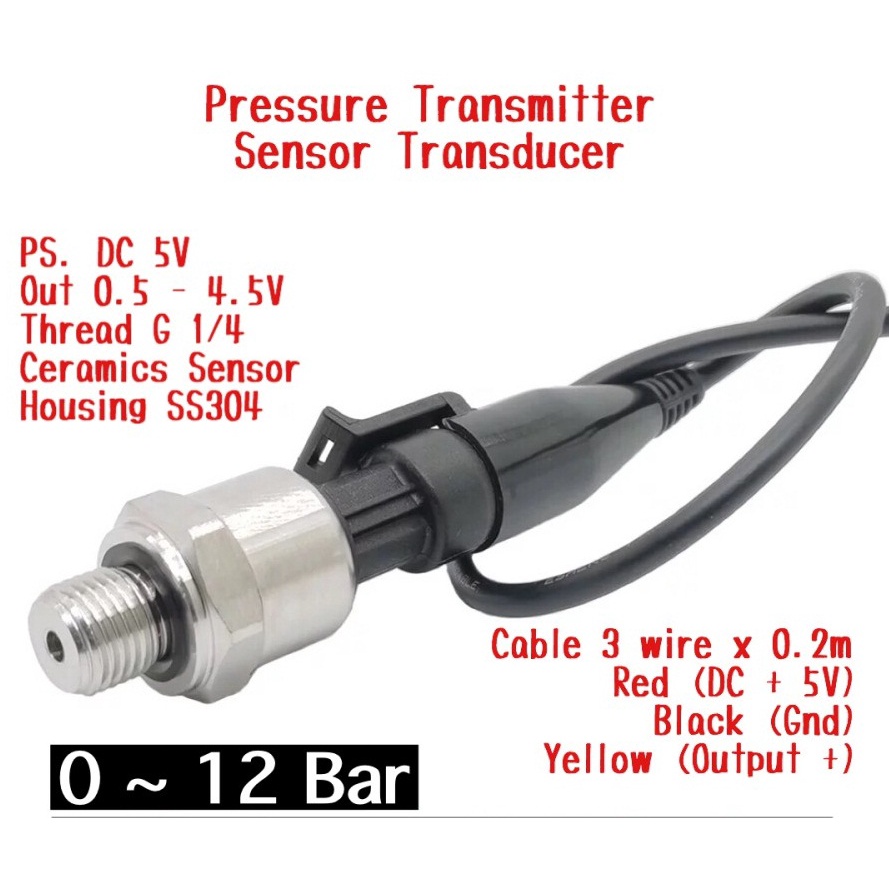

Detail Pressure Transmitter DC 5V 0-174 Psi/1.2MPa Pressure Sensor

*** READY STOCK PRESSURE TRANSDUCER ***
*** RANGE 0 ~ 12 Bar / Output 0,5-4,5V / Supply 5V DC / Port G 1/4

Specifications:
Power Supply: 5VDC
Output Voltage: 0.5-4.5 VDC
Thread Connection: G 1/4
Sensor material: Stainless steel
Working Current: 10 mA
Working Pressure Range: 0-1.2 MPa / 174 PSI / 12 Bar
Maximum Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: 0-85 degrees
Storage Temperature Range: 0-100 degrees
Measuring Error: 1.5 %FSO
Temperature Range Error: 0.5 %FS
Response Time: 2.0 ms
Application: non-corrosive gas liquid measurement

Wiring:
red +,
black -,
yellow output

Package includes:
1x Pressure Transducer Sensor
Note: Typical Application: Non-corrosive Liquid pressure survey
