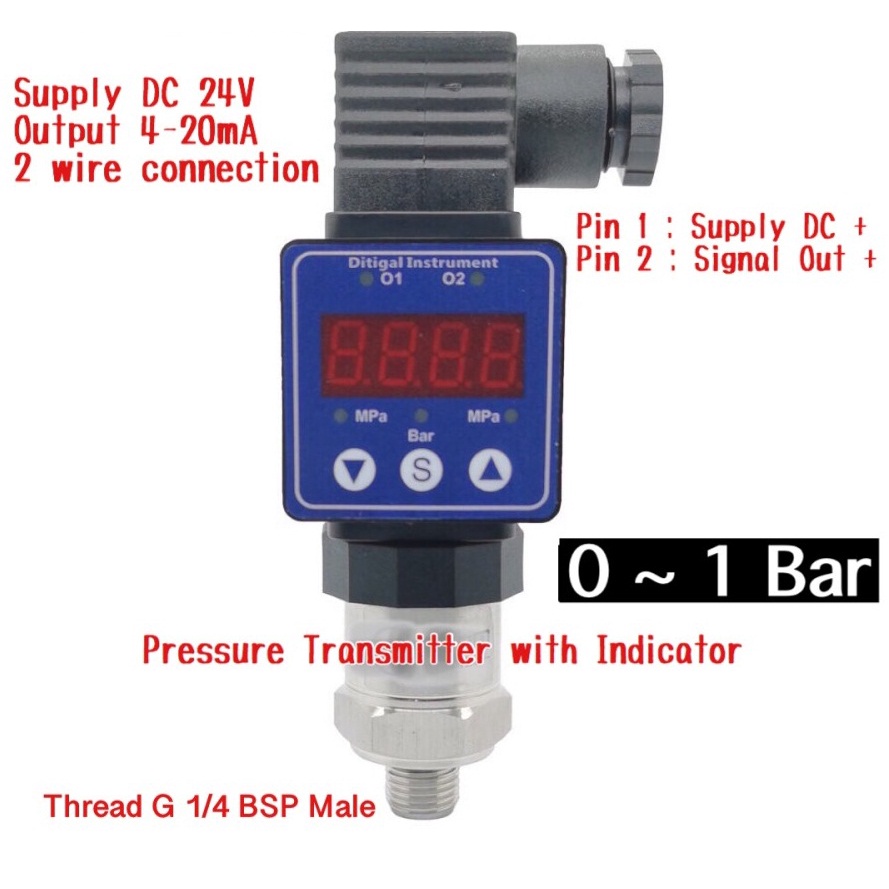

Detail Pressure transmitter 0-1Bar 1 Bar DC 24V 4-20mA with Local Indicator

Specification:
Measuring media: Gas, liquid (which is non-corrosive to stainless steel)
Measurement Range: 0 ~ 1 Bar
Pressure Type: Gauge pressure
Precision Class: 0.5 %
Connection: G 1/4
Long Term Stability: 0.1% F.S/year
Temperature Drift: 0.01%FS/
Power Supply: 24V DC
Output Signal: 4~20mA (2 wire)
Fluid Temperature: -40~55
Operating Temperature: -40~55
Overpressure: 150%
IP Rating: IP65
Sampling Frequency: 2ms
Probe Material: Stainless steel
Load Capacity: 250~1425(current type); 2k(voltage type)
Pressure Unit Conversion: 0.1Mpa=100kPa=1bar=0.98atm=1kgf/cm=14.5psi
