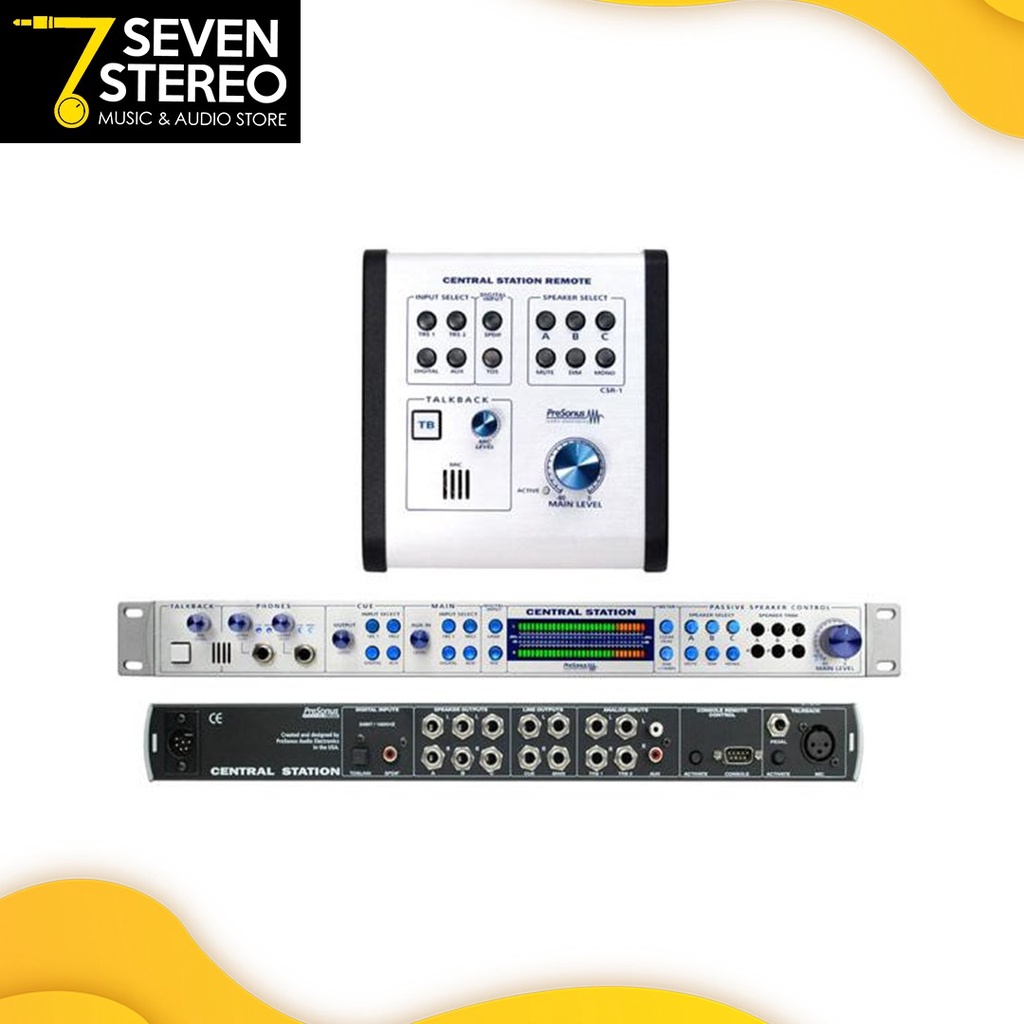

Detail Presonus Central Station Plus Monitor Control
Features 3 sets of stereo analog inputs let you switch between sources 2 sets of S/PDIF digital inputs (coax and optical) 3 sets of stereo speaker outputs with: Speaker Select switches Recessed trim pot for each speaker output Cue section with: Input-select switch Output-level control Main section with: Input-select switch Aux-input level control Output-level control Mute, Dim (-20 dB), and Mono switches 2 headphone outputs, each with: Dual-function volume controls Main-Cue input switches Passive audio path: no op amps or IC's in main audio path Onboard talkback microphone Talkback microphone input w/level control (feeds headphone and cue outputs) Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with: Clear Peak switch Calibrate to match DAW or other audio device Footswitch jack for hands-free talkback operation Included Control Station Remote (CSR-1) provides remote control of: Main Volume Input select Output select Talkback Mute Dim Mono Input/Output 4 balanced " analog line inputs (2 L/R pairs) 2 unbalanced RCA analog line inputs (L/R pair) 1 stereo S/PDIF optical (TOSLINK) digital input 1 stereo S/PDIF coax (RCA) digital input 1 balanced XLR talkback-microphone input 6 balanced ", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls 2 balanced ", line-level Main outputs (1 L/R pair) with source selection 2 balanced ", line-level Cue outputs (1 L/R pair) with volume control and source selection 2 stereo " headphone jacks w/dual-function volume controls and Main-Cue input switches 1 DB15 port for optional Control Station Remote (CSR-1) Digitalia S/PDIF coax and optical digital inputs High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range) Physical 1U 19" rack-mountable, rugged steel chassis External AC power supply
