(Predolo1) Osiloskop Digital Model Genggam Untuk Edukasi Produk

Detail (Predolo1) Osiloskop Digital Model Genggam Untuk Edukasi Produk

Description:
The oscilloscope is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industries and the R & D industries, small volume, easy to carry

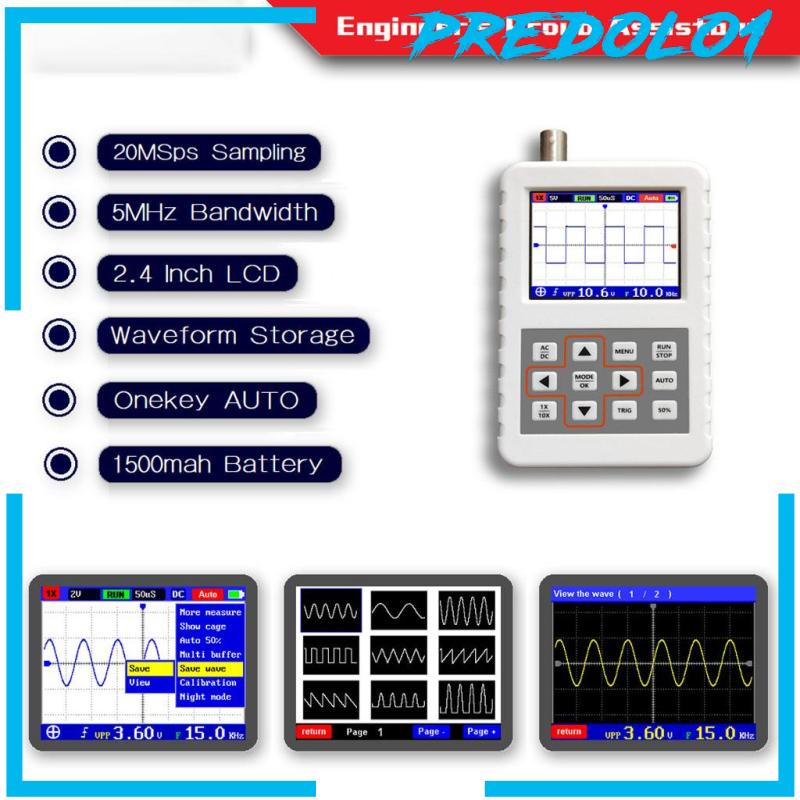

The oscilloscope has a real-time sampling rate of up to 20MS/s and a 5MHz analog bandwidth. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely.
Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment.
Display the High-Definition LCD screen equipped with 2.4 inch 320x240 resolution. Built in 1200mAh rechargeable lithium battery,which can last for 3 hours after a full charged. Day mode and night mode can be changed according to their own preferences.
Extremely convenient and fast waveform storage function, built-in 16MB storage space, the maximum storage of 500 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.
Specification:
Display: 2.4 inch LCD Color Display Screen
Material: Plastic
Maximum Real-time Sampling Rate: 20Msps
Bandwidth: 5MHz
Digital Channels:1
Coupling Modes: DC / AC

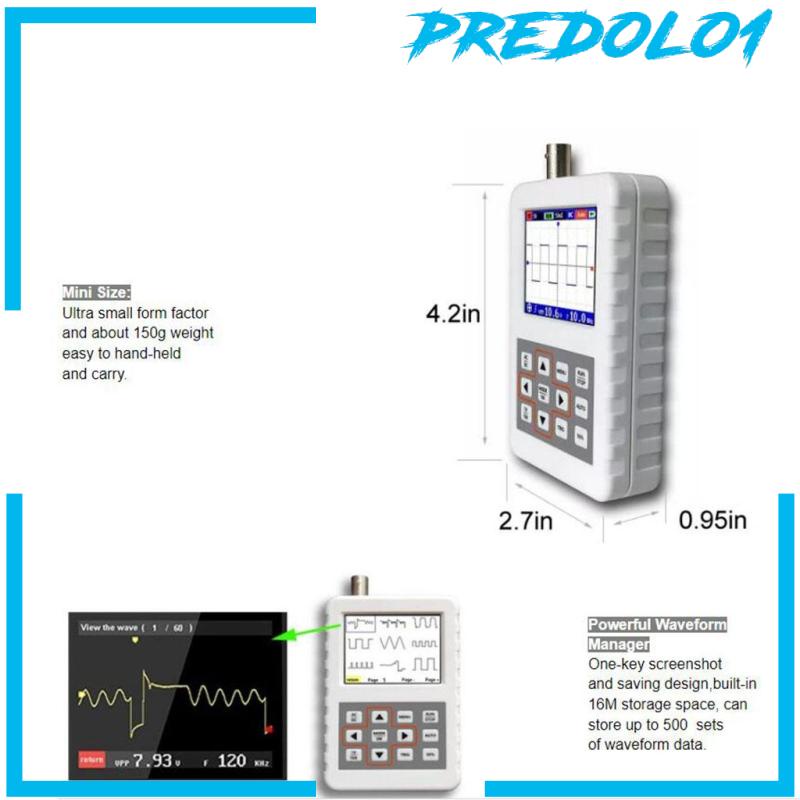

Size Chart:
107x70x24mm/4.21x2.76x0.94inch

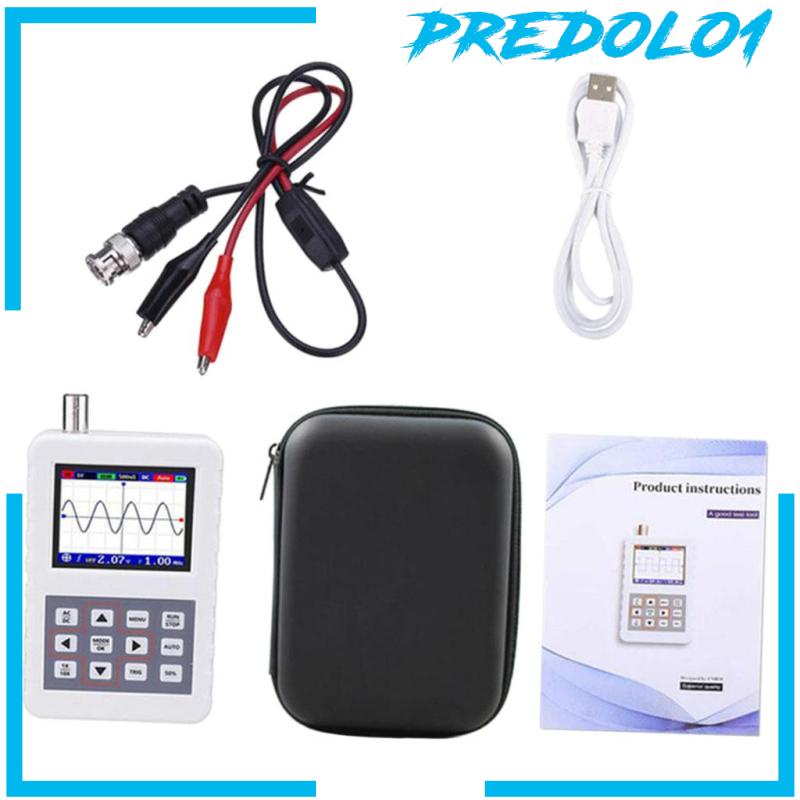

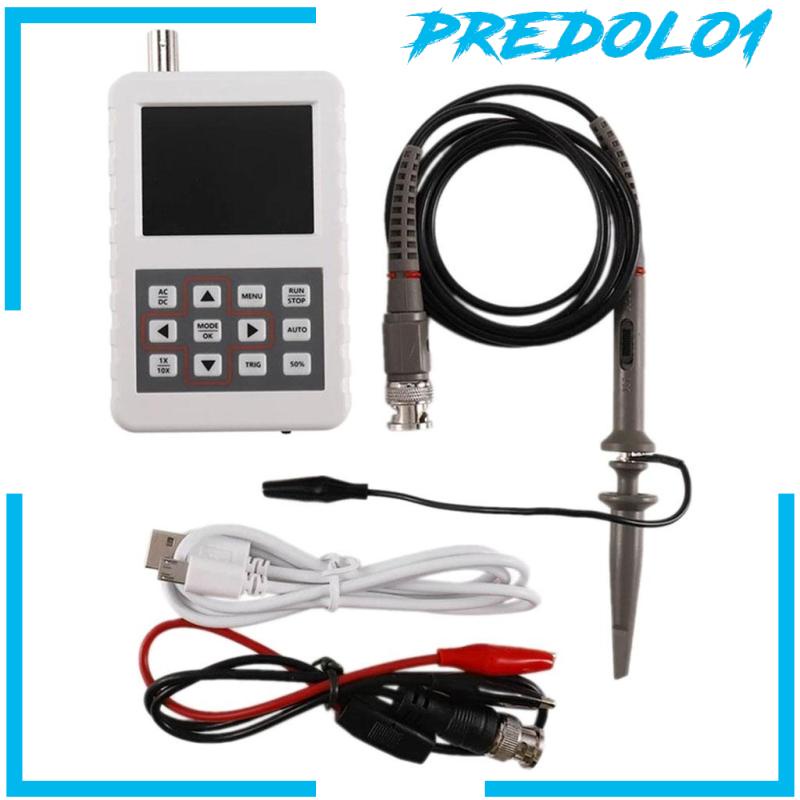

Package Includes:
1 Piece Oscilloscope Host
1 Piece Alligator Clip Test Clip
1 Piece USB Charging Cable
1 Piece English Paper Manual
Note:
1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
