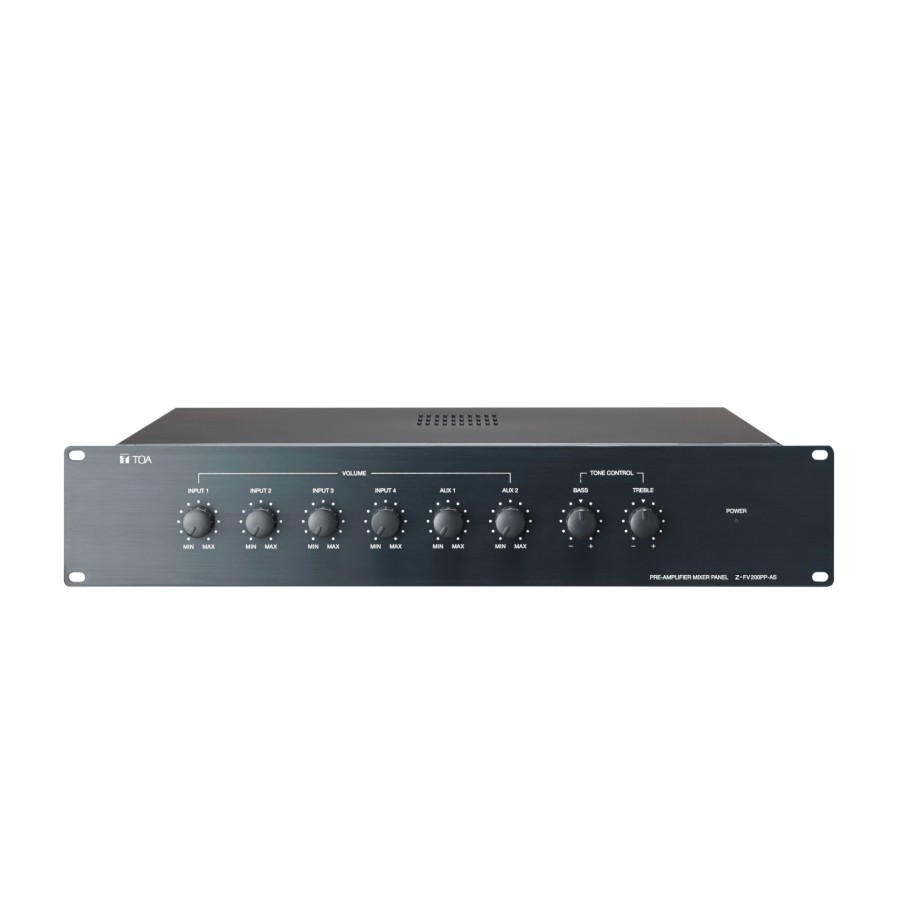

Pre Amplifier Mixer Panel TOA Z FV 200 PP AS / ZFV200PP AS

Merek: TOA | Lihat selengkapnya produk Audio dari TOA

Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > Pre Amplifier Mixer Panel TOA Z FV 200 PP AS / ZFV200PP AS

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:TokcauLihat semua produk Audio oleh Tokcau

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Pre Amplifier Mixer Panel TOA Z FV 200 PP AS / ZFV200PP AS

Specifications:
Current Consumption : 110mA

Audio Input:
EV: -20dB*, 60Ohm, Unbalanced, Removable terminal block (2 pins)
Timer : -20dB*, 60Ohm, Unbalanced, Removable terminal block (2 pins)
Paging: -60/-20dB* (selectable), 60Ohm, balanced, REmovable terminal block (3 pins)
RF Link: 0dB*, 60Ohm, unbalanced, Removable terminal block (2 pins)
MIC/LINE INPUT1 -4 : -60/-20dB* (selectable), 60Ohm, balanced, Removable terminal block (3 pins)
AUX1-2 : -20dB*, 10kOhm, unbalanced, RCA Jack

Audio Output :
Priority Output : 0dB*, balanced, Removable terminal block (3 pins)
BGM Output : 0dB*, balanced, Removable terminal block (3 pins)

Control Input :
Timer : No- voltage make input, open voltage : 24V DC, shoprt-circuit current : Under 5mA, Removable Terminal Block (2 Pins)
Paging : No- voltage make input, open voltage : 24V DC, Short circuit current: Under 5mA, Removable terminal block (2 pins)
EV : No-voltage make input, open voltage : 24 DC, short current : Under 5mA, Removable terminal block (2 pins)

Frequency Response : 50Hz - 15kHz, 13dB, 1kHz

Tone Control :
Bass : -10dB* at 100Hz, +10dB* at 100 Hz (for INPUT BGM)
Treble : -10dB* at 10kHz, +10dB* at 10kHz (for INPUT BGM)

S/N Ratle : Over 60dB

Finish : Front Panel : Alumunium, black, alumite

Dimensions (WxHxD) : 482 (W) x 88.4 (H) x 353.3 (D) in mm

ORIGINAL PRODUCT
