PR15 Step Down Converter DC to DC 12A 100W Modul Penurun Tegangan Voltase

Detail PR15 Step Down Converter DC to DC 12A 100W Modul Penurun Tegangan Voltase

12A 100W DC-DC STEP-DOWN NON-ISOLATED MODULE (Penurun Tegangan) - PR15

** Info Specs :
- INPUT : 4.5-30V
- Output : 0.8-30V (Default : 5V)
- Output Current : 0-12A 100W (up to 200W with extra heat dissipation).
- Operating temperature: -40 to + 85
- Operating frequency: 300KHz
- Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related).
- Short circuit protection: YES (limit current 14A)
- Try not to short circuit
- Overtemperature protection: (automatically shut off the output after overtemperature).
- Input Reverse Polarity Protection: None (if necessary please enter the string into the diode).
- Installation: four 3mm screws

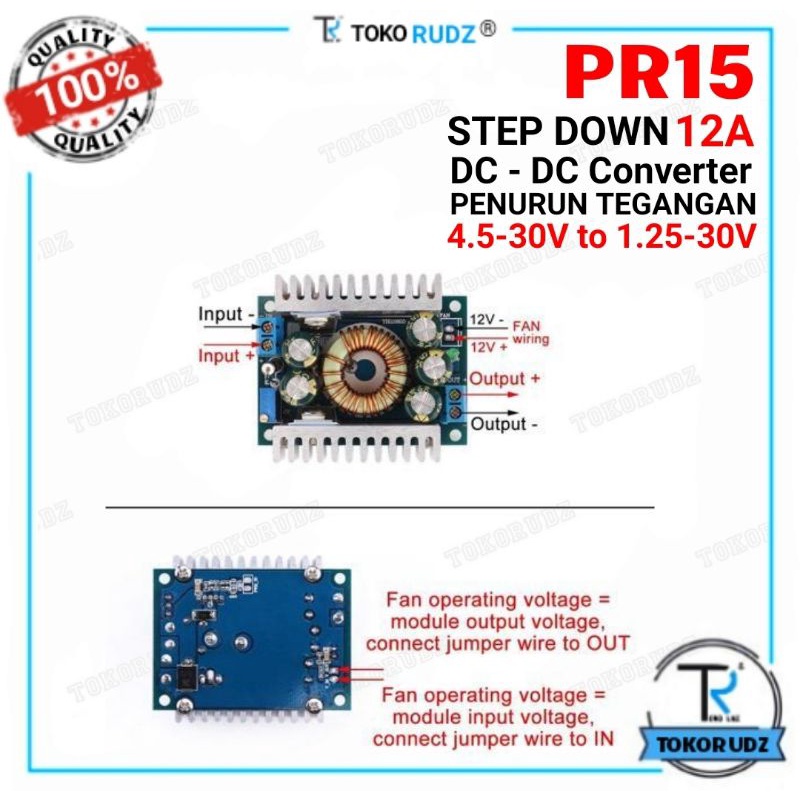

- Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output.
- Module dimensions: length 60mm width 51mm height 22mm

** Actual Data:
Input 12V Output 5V / 10A, efficiency 81%
Input 12V Output 5V / 6A, efficiency 86%
Input 24V output 12V / 8A, efficiency 91%
Input 24V output 19V / 6A, efficiency 94%.
