Detail pr15 12A step down stepdown power NON-ISOLATED module

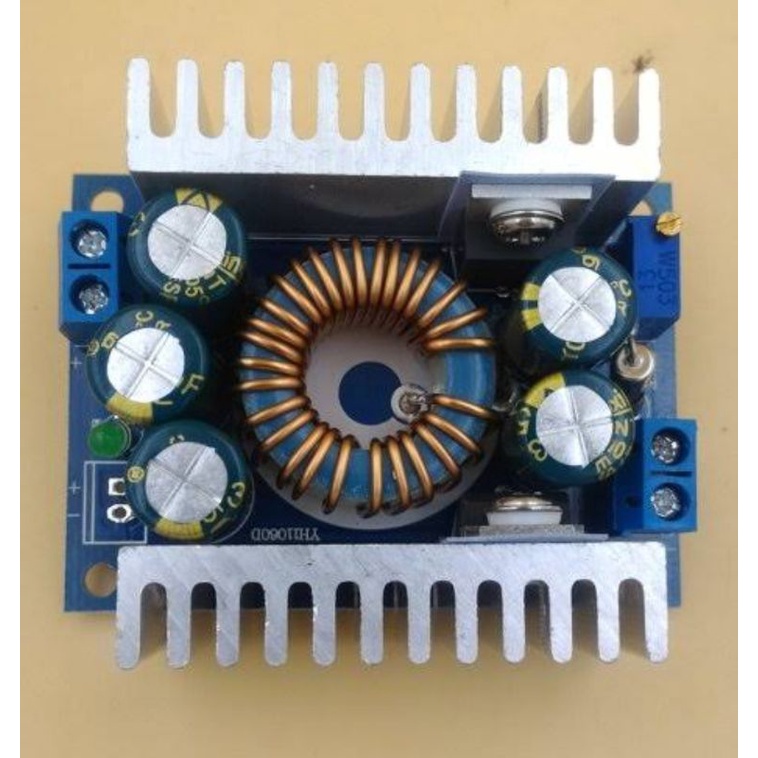

12A DC-DC STEP-DOWN NON-ISOLATED MODULE

INPUT : 4.5-30V

Output : 0.8-30V (Default : 5V)

Output Current : 0-12A 100W (up to 200W with extra heat dissipation)

Operating temperature: -40 to + 85

Operating frequency: 300KHz

Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related)

Short circuit protection: YES (limit current 14A) Try not to short circuit

Overtemperature protection: (automatically shut off the output after overtemperature)

Input Reverse Polarity Protection: None (if necessary please enter the string into the diode)

Installation: four 3mm screws

Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output.

Module dimensions: length 60mm width 51mm height 22mm



actual data:

Input 12V Output 5V / 10A, efficiency 81%

Input 12V Output 5V / 6A, efficiency 86%

Input 24V output 12V / 8A, efficiency 91%

Input 24V output 19V / 6A, efficiency 94%
kualitas bagus
