powerbeam 5ac 500 / pbe-5ac-500

Detail powerbeam 5ac 500 / pbe-5ac-500

Overview Of Ubiquity UBNT PowerBeam 5AC 500mm PBE-5AC-500

Using airMAX ac technology, the PBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-500 also includes a protective radome to shield the radio from the elements. Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses. The form factor of the PowerBeam features the highest gain for its size. The PowerBeams excellent beam directivity provides the best performance in high-noise environments. The PowerBeam PBE-5AC-500 includes a protective radome to shield the radio from the elements.

Specifications
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 128 MB DDR2, 8 MB Flash
Networking Interface 10/100/1000 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes

Dimensions
Radome Excluded 520 x 520 x 308 mm (20.47 x 20.47 x 12.13 in)
Radome Included 525 x 525 x 315 mm (20.67 x 20.67 x 12.40 in)
Weight
Radome Excluded 2.35 kg (5.18 lb)
Radome Included 3.15 kg (6.95 lb)
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Gain 27 dBi
Operating Frequency
Worldwide 5150 - 5875 MHz
USA 5725 - 5850 MHz
Wind Loading 419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs Power, (1) LAN, (4) WLAN Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: 24 kV, Contact: 24 kV
Operating Temperature -40 to 70 C (-40 to 158 F)

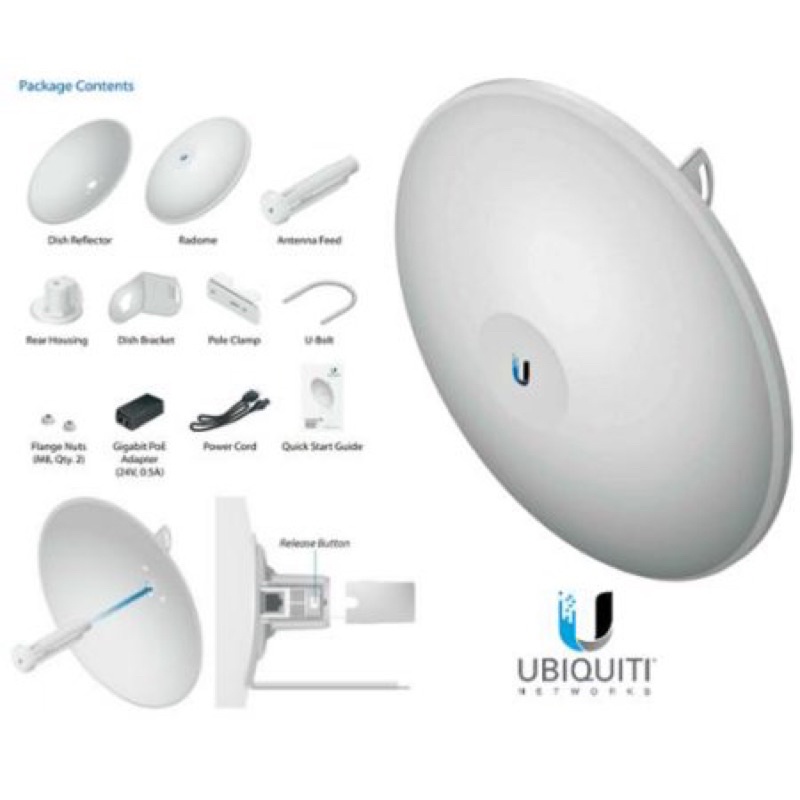

Gambar produk
