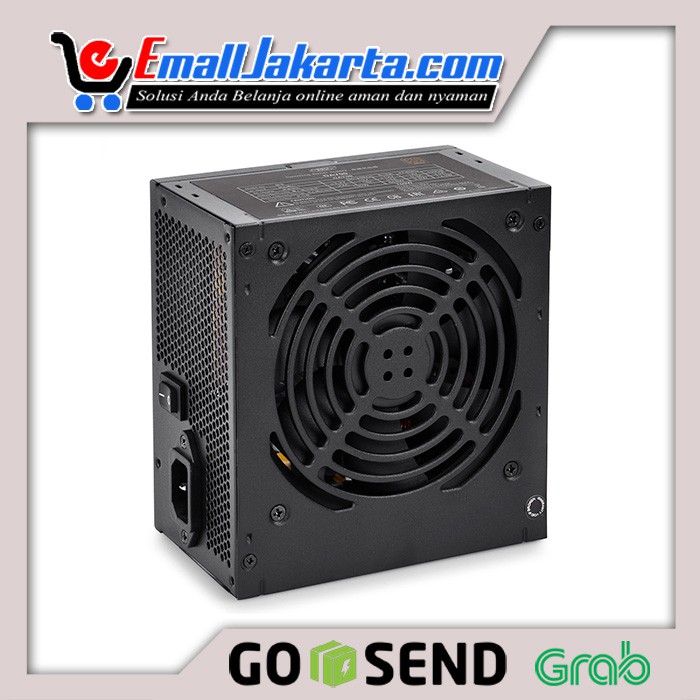

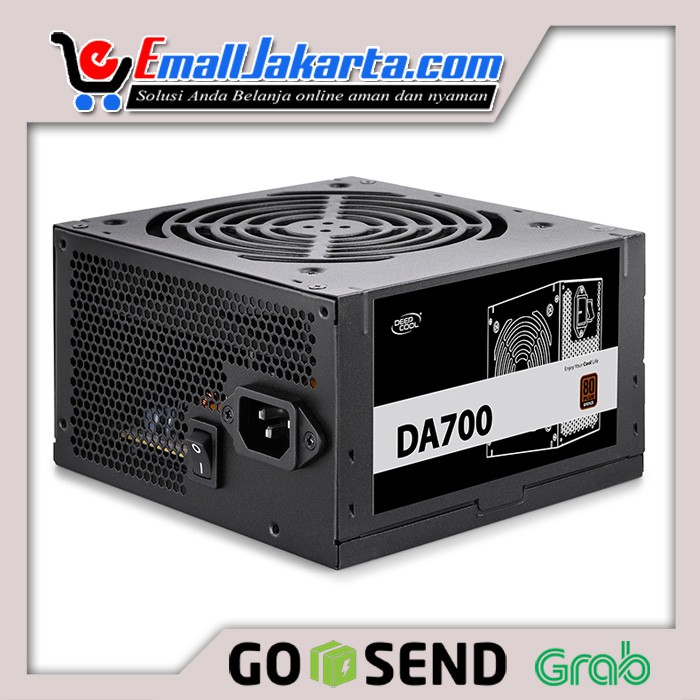

Deepcool DA700 PSU ATX Power Supply Real 700 Watt 80 PLUS DP-BZ-DA700N

Detail Deepcool DA700 PSU ATX Power Supply Real 700 Watt 80 PLUS DP-BZ-DA700N

#BARANG KAMI SELALU READY,SILAHKAN LANGSUNG KLIK BELI#

DA700 is certified to 80 PLUS Bronze, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. Integrated Active PFC + PWM Combo Controller boost exchange efficiency to achieve a PFC of higher than 99%. Outstanding and stable performance makes this PSU a leading choice for a wide range of applications.

Compatible with Intel ATX12V v 2.31.
Integrated Active PFC + PWM Combo Controller boost the exchange efficiency and achieve a PFC of higher than 99%.
80 PLUS Bronze certified to achieve up to 85% efficiency.
120 mm silent fan with temperature control function.
Longer cable design for enhancing cable management.
Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards.
CircuitShield - OVP, UVP, SCP, and OPP.
Support Multi-Way SLI / CrossFire + Multi-Core CPUs.
High reliability with at least 100,000-hour MTBF.
DC-DC design for improved stability, robust performance, and greater efficiency.

Technical Spec
Model DA700
Type ATX 12V V2.31
Certifications 80PLUS Bronze
Dimension mm (W x L x H)
Output Capacity 700W
Input Voltage 100~240V
Input Current 10A
Input Frequency Range 47~63Hz
Fan Size 120mm Silent Fan
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP / OTP
Operation Temperature 0~40C
Regulatory CE / FCC / CCC / CB / EAC / TUV
MTBF 100,000 Hours

AC INPUT VOLTAGE CURRENT FREQUENCY
100-240V 6-12A 50/60Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
CURRENT(Max) 22A 18A 54A 0.3A 2.5A
OUTPUT(Max) 90W 650W 6W 12.5W
TOTAL OUTPUT 700W
