POWER SUPPLY SUNSHINE P-3005DA - POWER SUPPLY DIGITAL 30V 5A

Detail POWER SUPPLY SUNSHINE P-3005DA - POWER SUPPLY DIGITAL 30V 5A

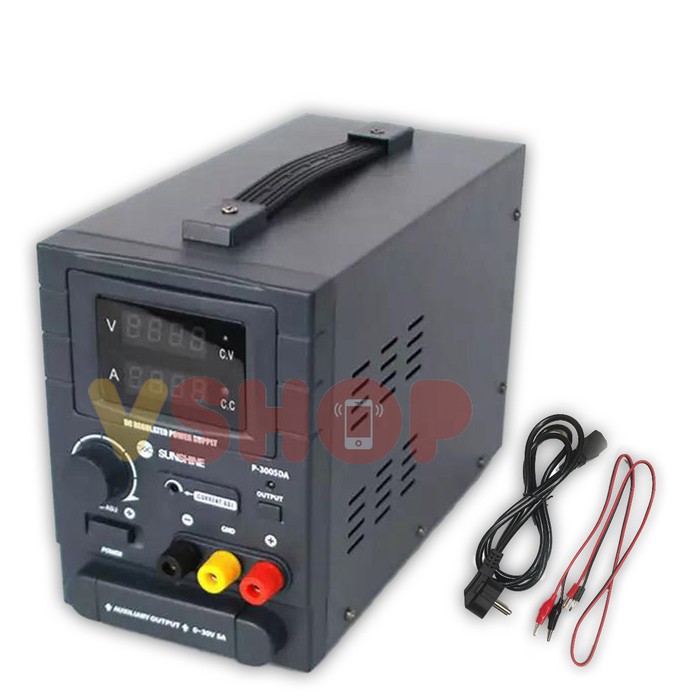

Power Supply Sunshine P-3005DA - 30 Volt 5 Ampere

Primary Technical Parameter:

1.Rated working condition
Supply voltage AC110V/220V ±10% (switch chose) frequency (50hz / 60hz)
Working condition Temperature -10°C-40°C,relative humility≤90%
Storage condition Temperature -10°C-40°C,relative humility≤80%

2.Output
Voltage 0-30V
Current 0-5A
Power 150W
Protection types circuit protection,overload and over high temperature protection.

Overload mediation:

Voltage 0.01%+3mV(I≤3A)
Current 0.2%+3mA(I≤3A)
Power mediation rate and resolution
Voltage 0.01%+3mV
Current 0.01%+3mA
Voltage 10mV
Current 1mA (2mA Rated Current>3A)
Setting accuracy (25±5°C)
Voltage ≤0.1%
Current ≤10mA Rated Current >3A
Ripple (20Hz-20MHz)
Voltage Ripple≤1mVrms (≤ 2mVrms >3A
Temperature coefficient (0-40°C)
Voltage ≤ 300ppm+10mV
Current ≤ 300ppm+10mA
Read back value resolution
Voltage ≤ 300ppm+10mV
Current ≤ 300ppm+10mA

Drift

Voltage ≤ 300ppm+10mV
Current ≤3 00ppm+10mA

Features:

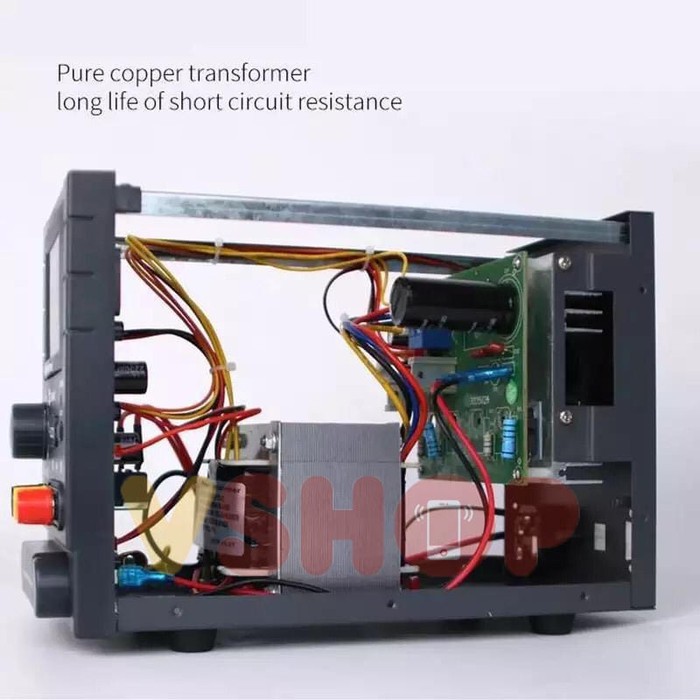

1. The 5A adjustable dc power supply is with high quality and high power transformer, the machine power
is enough, can really achieve the voltage output 30V, current output 5A, and can accurately set the
protection current size.

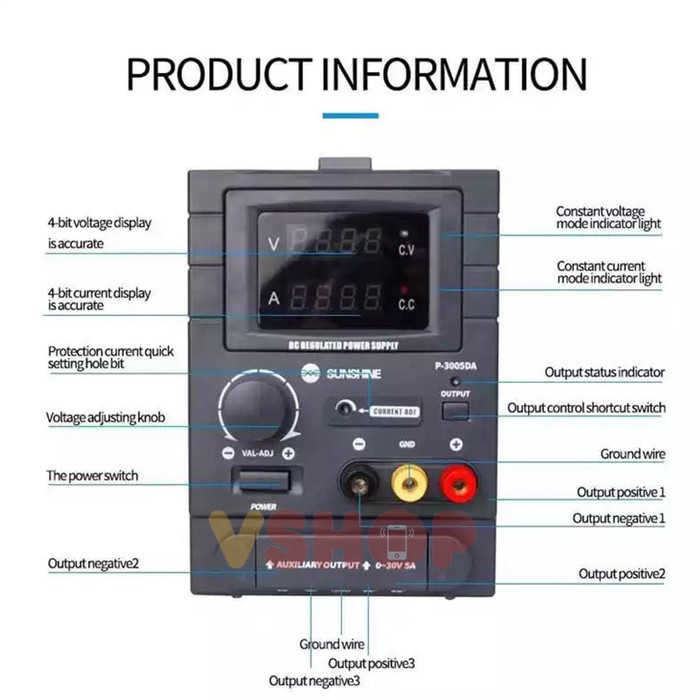

2.4 bit accurate control and display, bring more precise control, and constant pressure flow protection
mode, effective protection of the safety of the load.
3. The whole process circuit after the factory more than 10 years of continuous improvement and
innovation, precise control, mature technology, high safety, stable and reliable by
users at home and broad is certainly.
4 built-in temperature control protection circuit, when the machine internal heating temperature of over
40 degrees, the cooling fan will automatically run, when the power is connected to load
more than the maximum load of the machine will automatically protect, stop output, effectively protect the
use of power supply safety, extended service life
