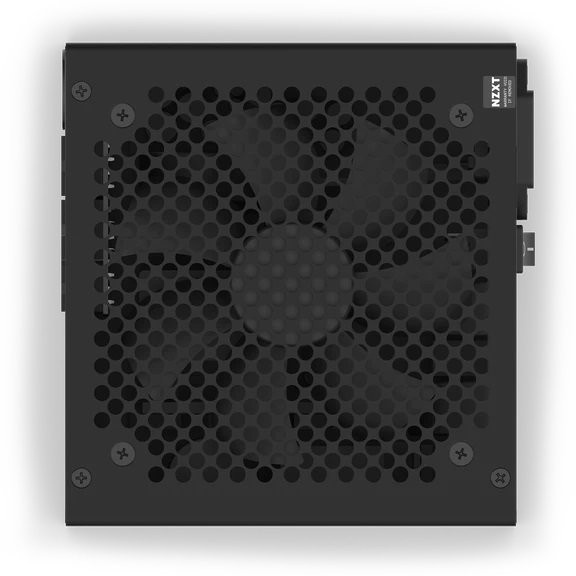

POWER SUPPLY PSU NZXT C550 550W 80 PLUS BRONZE SEMI MODULAR NEW

Detail POWER SUPPLY PSU NZXT C550 550W 80 PLUS BRONZE SEMI MODULAR NEW

POWER SUPPLY PSU NZXT C550 550W 80 PLUS BRONZE SEMI MODULAR

The C550 brings 550 watts of reliae power to your battlestation and is ideal for users who require less power for their builds.
Inside the Box
NZXT C550 Bronze PSU 1
24-pin ATX power (550mm) 1
4+4-pin CPU power (650mm) 4
PCIe (6+2 pin) (length: 550, 150mm (Extension)) 4
SATA Connector (length: 500, 150mm (Extension)) 6
Peripherals (length: 500, 150mm (Extension)) 3
Tech Specs
Key Specs
Dimensions

W 150mm x L 140mm x H 86mmMaterial(s)

Steel, PCB and plasticCompliance Standard

ATX12V v2.4 / EPS12V v2.92AC Input Rating

100V-240V 8A-4A 50Hz-60Hz

DC Output Rating

Voltage

+3.3V / +5V / +5VSB /+12V / -12V

Max Load

20A / 20A / 2.5A / 45.5A / 0.3A

Voltage Regulation

5 / 5 / 10%

Ripple & Noise

< 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p

Output Power (watt)

110 / 110 / 12.5 / 546 / 3.6

Total

550
Fan Specs

Dimensions

120 x 120 x 25 (mm)

Speed

2400 10% RPM

Airflow

72.90 CFM

Noise

<44 dBA

Bearing

FDB (Fluid Dynamic Bearing)
Energy Efficiency

Rating

80 Plus Bronze

10% loading

82%

20% loading

83%

50% loading

87%

100% loading

83%
Operation

PF Correction

Active@0.96

MTBF

100,000 hours

Operation Temperature

0 to 40C

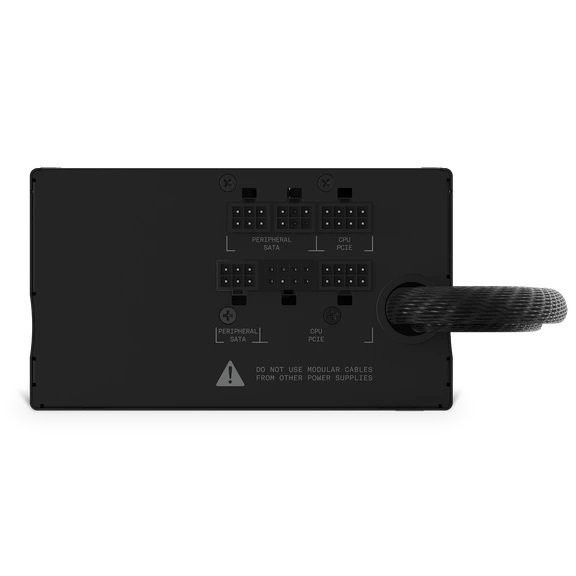

Output Connector(s)

24-pin ATX Power

1

8-pin CPU Power

2

8-pin PCIe Power

2

SATA Power

2

Molex Power

1
