Detail Power Supply PSU Cooler Master 750W 80+ MWE Bronze
Spesifikasi :
MODEL MPE-7501-ACABW-B
ATX VERSION ATX 12V V2.52
PFC Active PFC
INPUT VOLTAGE 200-240Vac
INPUT CURRENT 6A
INPUT FREQUENCY 50-60Hz
DIMENSIONS (L X W X H) 140 x 150 x 86 mm
FAN SIZE 120mm
FAN BEARING HDB
FAN SPEED 2400 RPM
NOISE LEVEL @ 20% 11.12 dBA
NOISE LEVEL @ 50% 20.3 dBA
NOISE LEVEL @ 100% 39.5 dBA
EFFICIENCY 88% Typically
80 PLUS RATING 80 PLUS Bronze EU 230V
ERP 2014 LOT 3 Yes
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME >14ms at 100% Full Load@230Vac
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, SCP, UVP, OTP
REGULATORY CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
EPS 8 PIN CONNECTOR 1
SATA CONNECTORS 6
PERIPHERAL 4-PIN CONNECTORS 3
PCI-E 6+2 PIN CONNECTORS 4
SERIE MWE Bronze Series
80 PLUS Bronze
MODULAR Non Modular
WATTAGE 500 to 750W

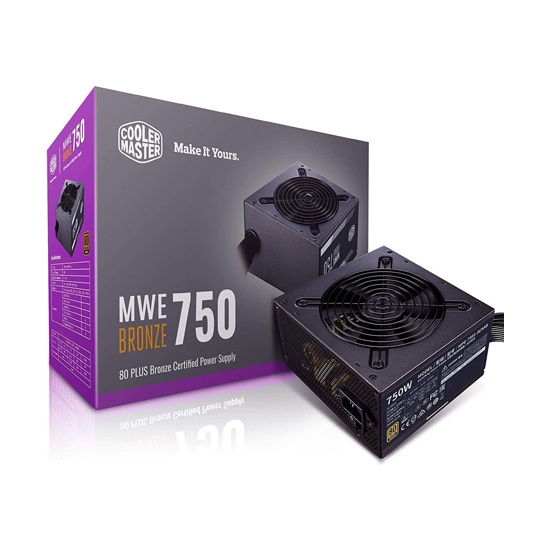

Gambar produk
