Detail Power Supply Module AC to DC 5V 700MA( 3,5watt) (5700)

5V700MA high-performance version Optimized design, suitable for control board, the power supply system of single-chip board is very stable and reliable!

Operating temperature: -20°C to 70°C, high-grade green gold capacitors withstand temperature of 105°C for 10,000 hours, more than 5 years at 70°C, about 20-50 years at room temperature (not recommended for use above 70°C), output filter High-quality solid capacitors

Input voltage range: AC50V - 277V

No-load power: <0.05W Full-load power: <4W

Output characteristics: Multiple modules of the same voltage can be used in parallel to meet the needs of small space and large current.

Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, recovery at heavy load, 50% load ripple 60mV

Output current: 5V0mA-700mA, enter constant current working mode at full load

Test resistance: 5V with 7 ohms (4.9V)

Output indicator: green light

Output power: 3.5W, efficiency about 80%

Output protection: over voltage, over current, over temperature, over power, short circuit protection, etc.

Gambar produk

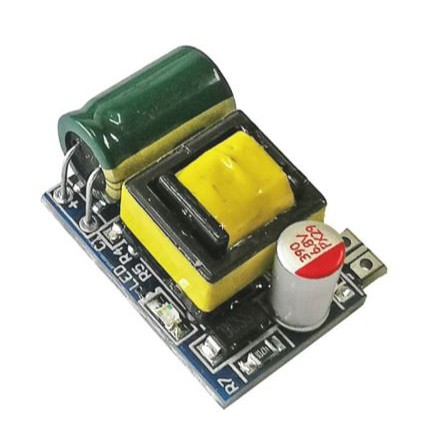

Power Supply Module AC to DC 5V 700MA( 3,5watt) (5700)
