Detail POWER SUPPLY HIKVISION 8 CHANNEL 1A DS-2FA1205-D8

HIKvision DS-2FA1205-D8
Multi-channel SMPS
▪︎12 VDC/1 A per channel
▪︎Over current/short circuit/over voltage protection
▪︎Complies with certification standards of information technology products; good EMC performance
▪︎Compact size; applicable to cameras
▪︎Model
Parameters
DS-2FA1205-D8
▪︎Switching Mode Power Supply
▪︎Appearance Gray
▪︎Input 185 to 240 VAC, 50 Hz to 60 Hz
▪︎Output 12 VDC/1 A per channel
▪︎Cable Length
Compensation
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
▪︎Ripple & Noise 0.15 Vp-p (150 mV)
▪︎AC Input Connector C8
▪︎DC Output Connector DC Plug: grid terminal
▪︎LED Indicator Green
▪︎Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
▪︎Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
▪︎Dimension 130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")

Gambar produk

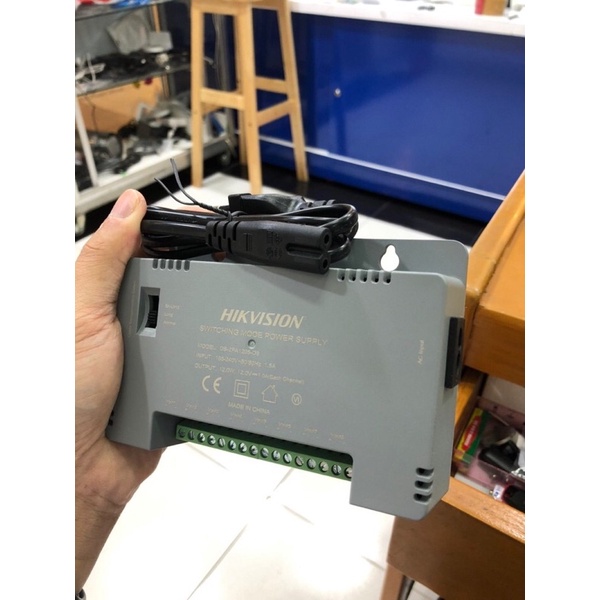

POWER SUPPLY HIKVISION 8 CHANNEL 1A DS-2FA1205-D8
