Power Supply high boost Aluminum substrate 250W car laptop (1531)

Detail Power Supply high boost Aluminum substrate 250W car laptop (1531)

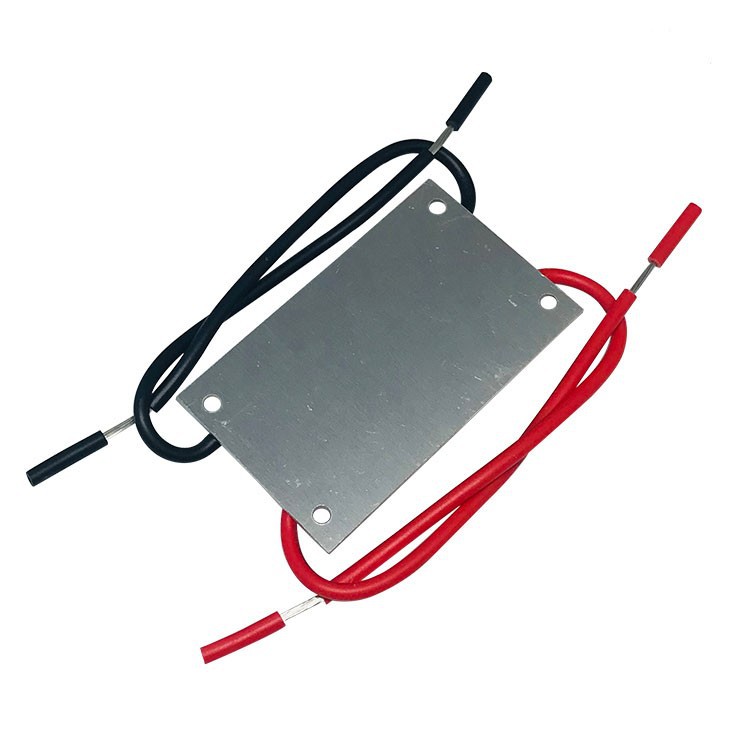

Aluminum substrate 250W high power boost constant voltage constant current car laptop power supply LED boost driver (1528)

Module name: 250W boost constant current module
Module nature: non-isolated boost module (BOOST)
Input voltage: DC8.5V-48V
Input current: 10A (MAX) over 8A, please strengthen heat dissipation
Static working current: 10mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)
Output voltage: 10-50V continuously adjustable, 12-80V fixed output (for batch customers)
Output current: 10A MAX. If more than 6A, please strengthen heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current). Adjust the output current, counterclockwise large and clockwise small
Constant current range: 0.2-8A
Output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, input 36V*5A=180W, input 48V*5A=240W,
If you need more power, you can use two modules in parallel. For example, if the output is 10A, you can use two modules in parallel and adjust the current of each module to 5A.
Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference)
Over-current protection: Yes (when the input exceeds 13A, the output voltage is automatically reduced, and there is a certain range of error.)
Input reverse connection protection: Yes, (less than 5A, if you need more reverse connection current, please put a diode in series in the input)
Installation method: 4 3mm screw holes
Wiring mode: wiring output

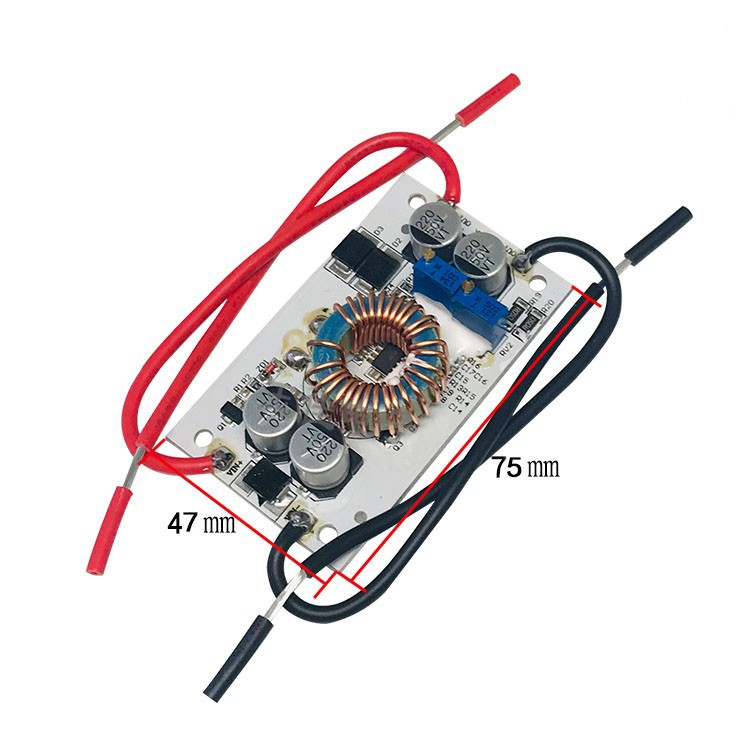

Module size: length 75mm width 47mm height 13mm
Module weight: 50 grams

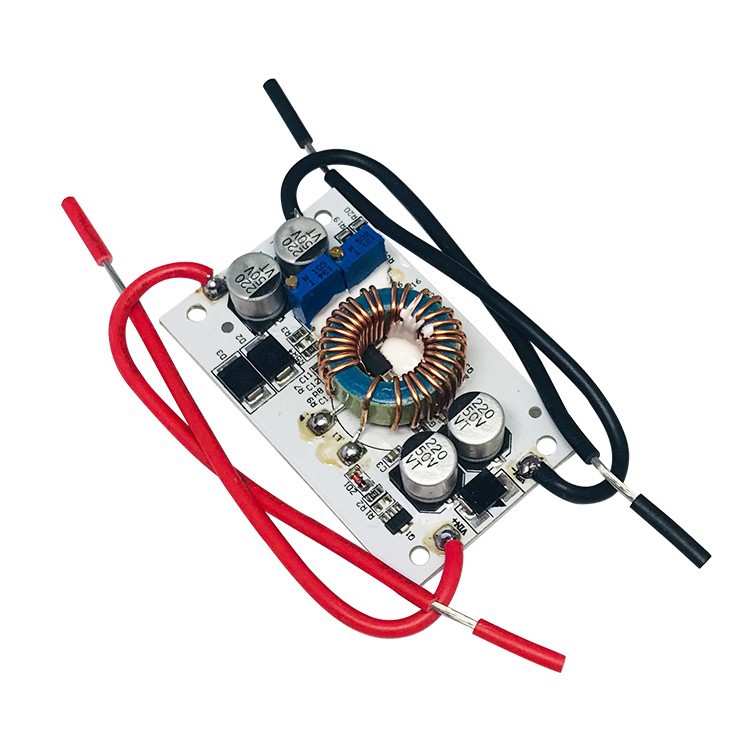

Gambar produk
