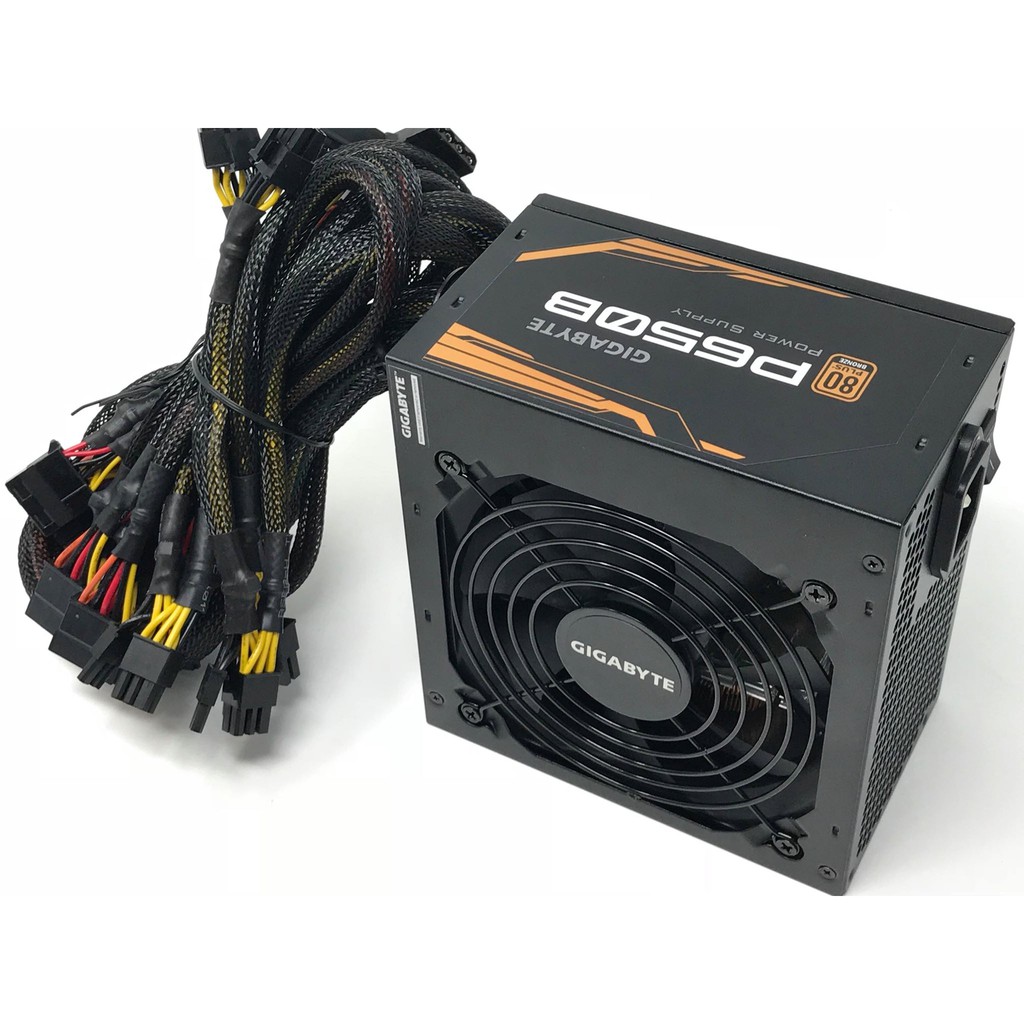

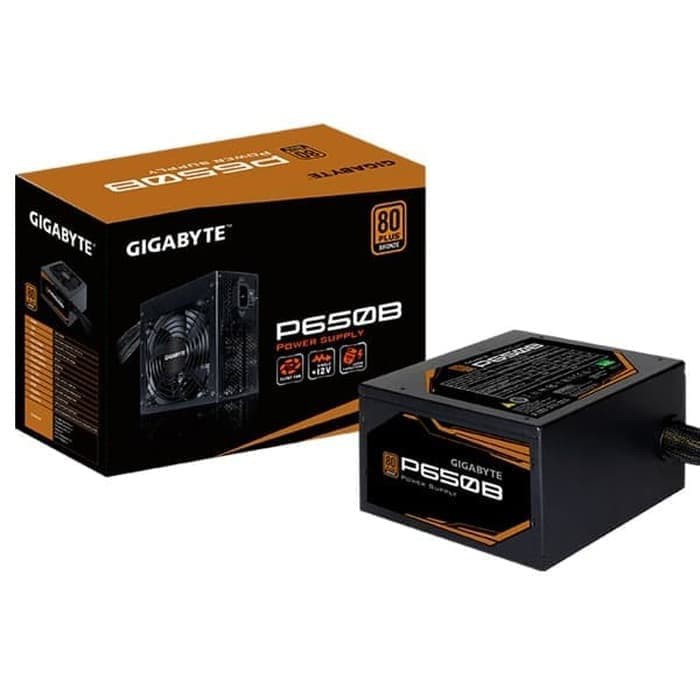

Detail Power Supply Gigabyte P650B 650Watt 80+ Bronze
Features 80 PLUS bronze certified: up to 89% efficiency 100% Japanese Capacitors 120mm Hydraulic Bearing (HYB) Fan Single +12V rail Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection 3 years warranty (Adjusted according to different regions)

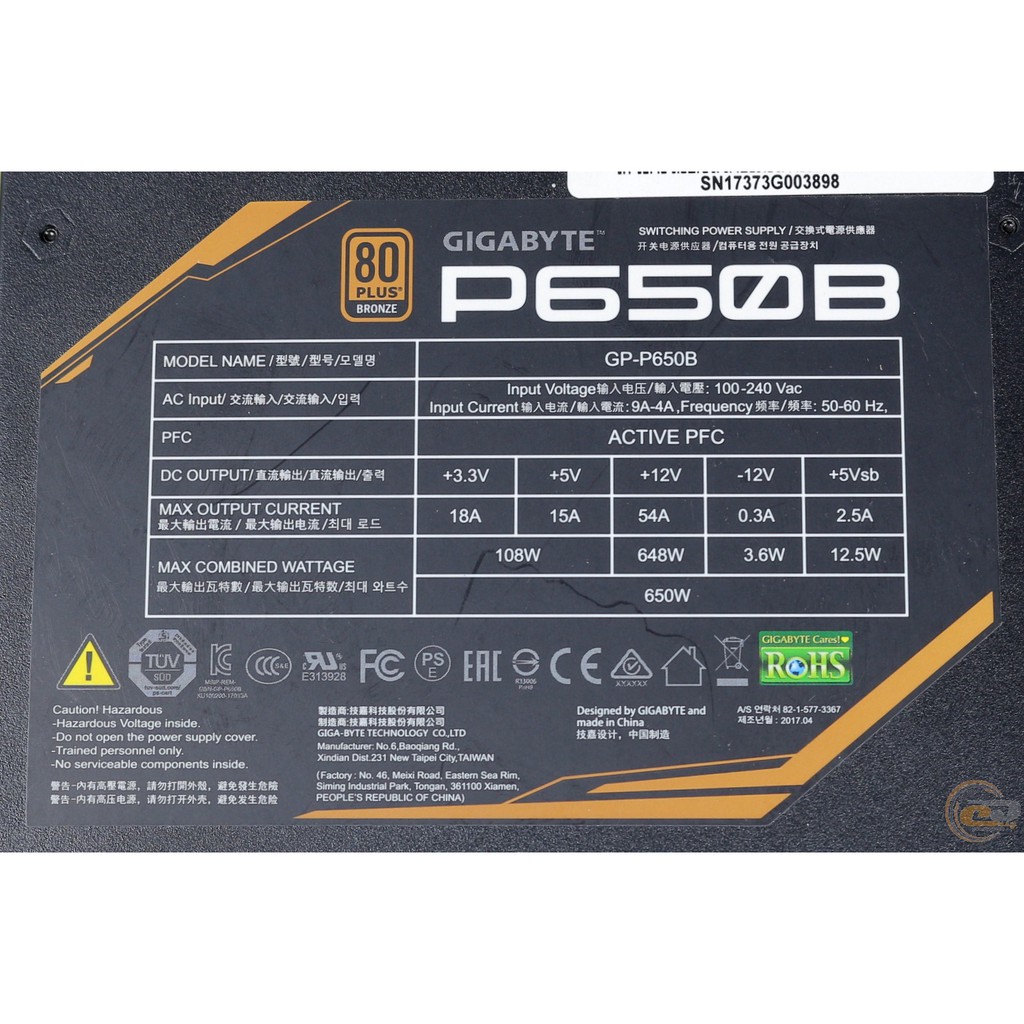

Specification : Model P650B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 9A-4A Input Frequency 50-60 Hz Output Capacity 650W Dimension D150 x W140 x H86 mm Fan Type 120mm Hydraulic Bearing Fan Efficiency Up to 85% at typical load MTBF >100,000 hours Protection OPP/UVP/OVP/SCP/OCP Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE Connectors ATX/MB 20+4 Pin x 1 CPU/EPS 4+4 Pin x 1 PCI-e 6+2 Pin x 4, SATA x 6 4 Pin Peripheral x 3 4 Pin Floppy x 1
