Power Supply Gigabyte P550B 80+ Bronze 550W PSU

Detail Power Supply Gigabyte P550B 80+ Bronze 550W PSU

80 PLUS Bronze certified
120mm Silent Hydraulic Bearing (HYB) Fan
Reliable flat cable
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty (Adjusted according to different regions)

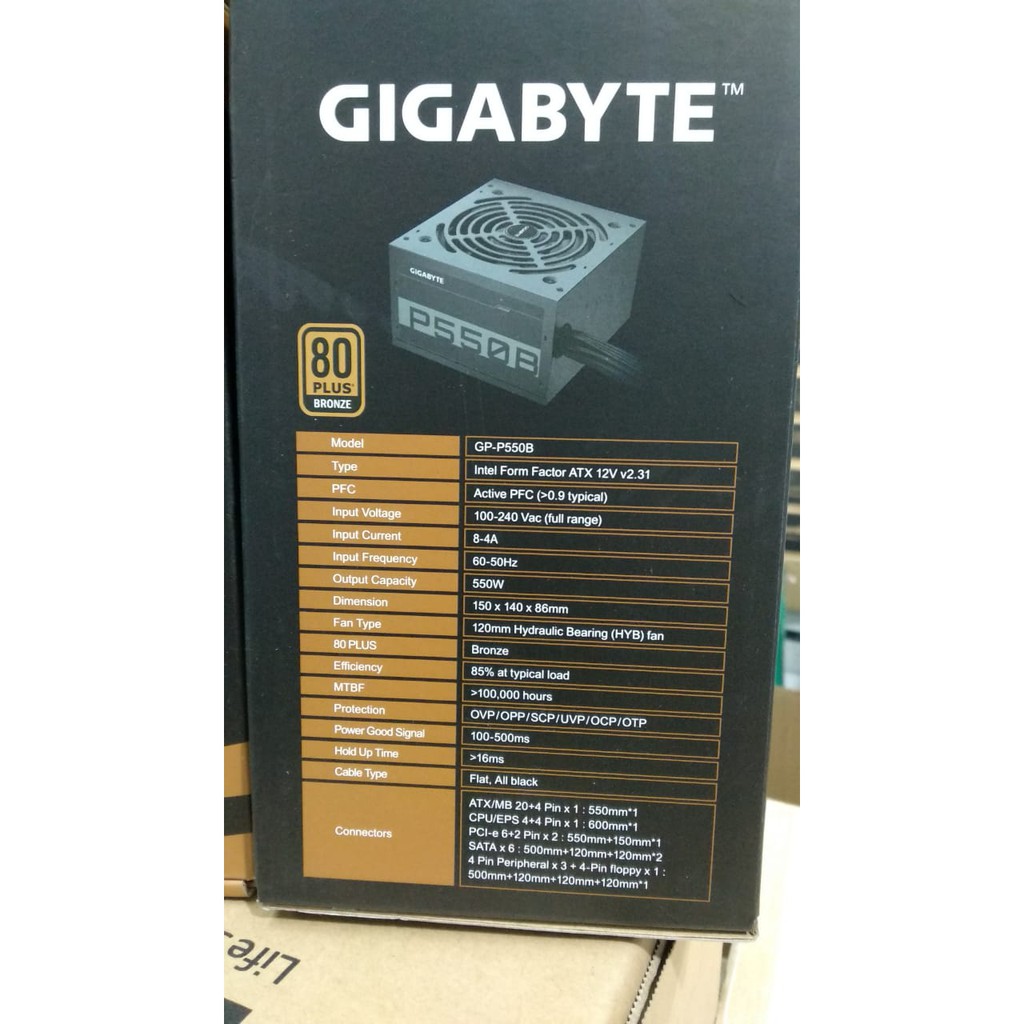

Model : P550B
Type : Intel Form Factor ATX 12V v2.31
PFC : Active PFC(>0.9 typical)
Input Voltage : 1‎00-240 Vac(full range)
Input Current : 8‎-4 A
Input Frequency : 6‎0-50 Hz
Output Capacity : 5‎50W
Dimension :1‎50 x 140 x 86 mm
Fan Type : 1‎20mm Hydraulic Bearing (HYB) Fan
80 PLUS Bronze
Efficiency : 8‎5% at typical load
MTBF : >100,000 hours
Protection : OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal : 1‎00-500ms
Hold Up Time : >16ms
Cable Type : Flat, All black
Connectors : ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
