POWER SUPPLY GIGABYTE 55OW

Detail POWER SUPPLY GIGABYTE 55OW

PS GA 101
POWER SUPPLY GIGABYTE 55OW

Features
80 PLUS Bronze certified
120mm Silent Hydraulic Bearing (HYB) Fan
Reliable flat cable
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty (Adjusted according to different regions)

Spesifikasi :
Model P550B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC(>0.9 typical)
Input Voltage 1‎00-240 Vac(full range)
Input Current 8‎-4 A
Input Frequency 6‎0-50 Hz
Output Capacity 5‎50W
Dimension 1‎50 x 140 x 86 mm
Fan Type 1‎20mm Hydraulic Bearing (HYB) Fan
80 PLUS Bronze
Efficiency 8‎5% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 1‎00-500ms
Hold Up Time >16ms
Cable Type Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1

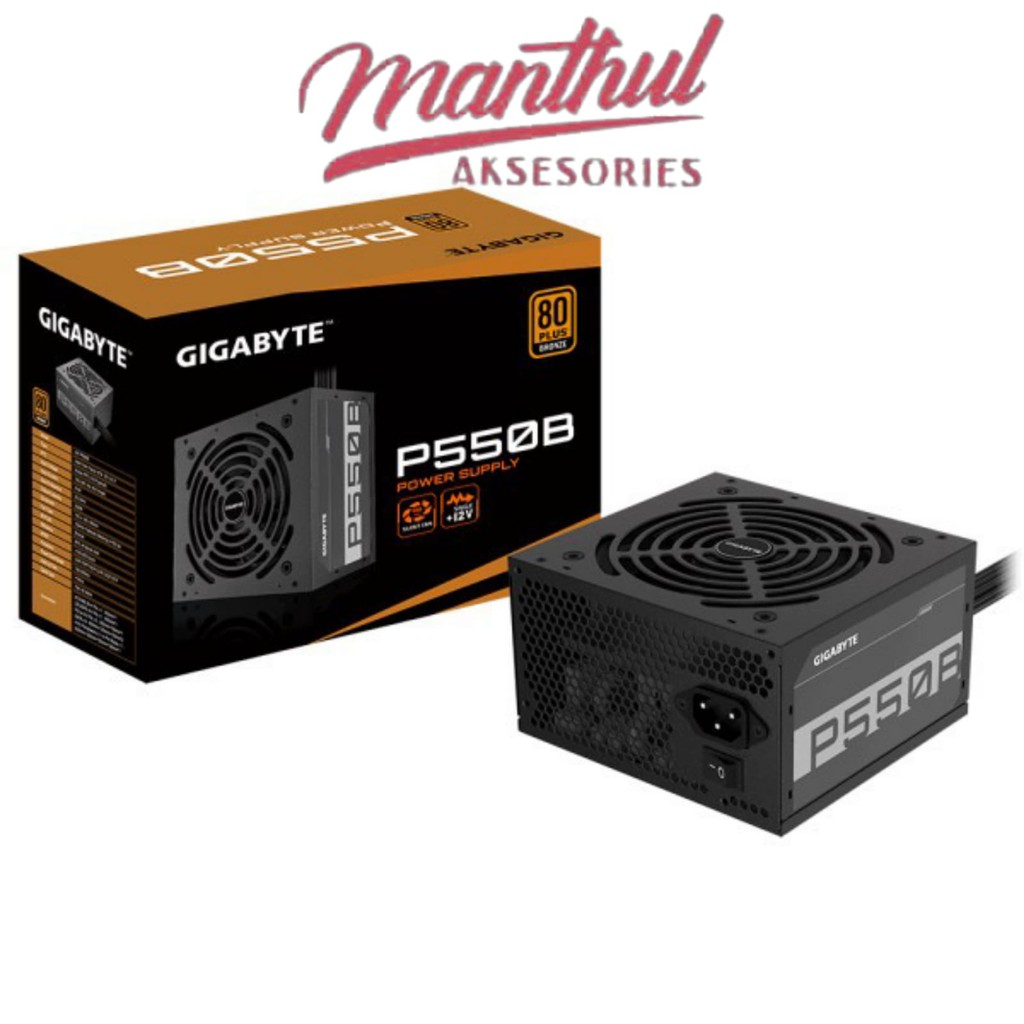

Gambar produk
