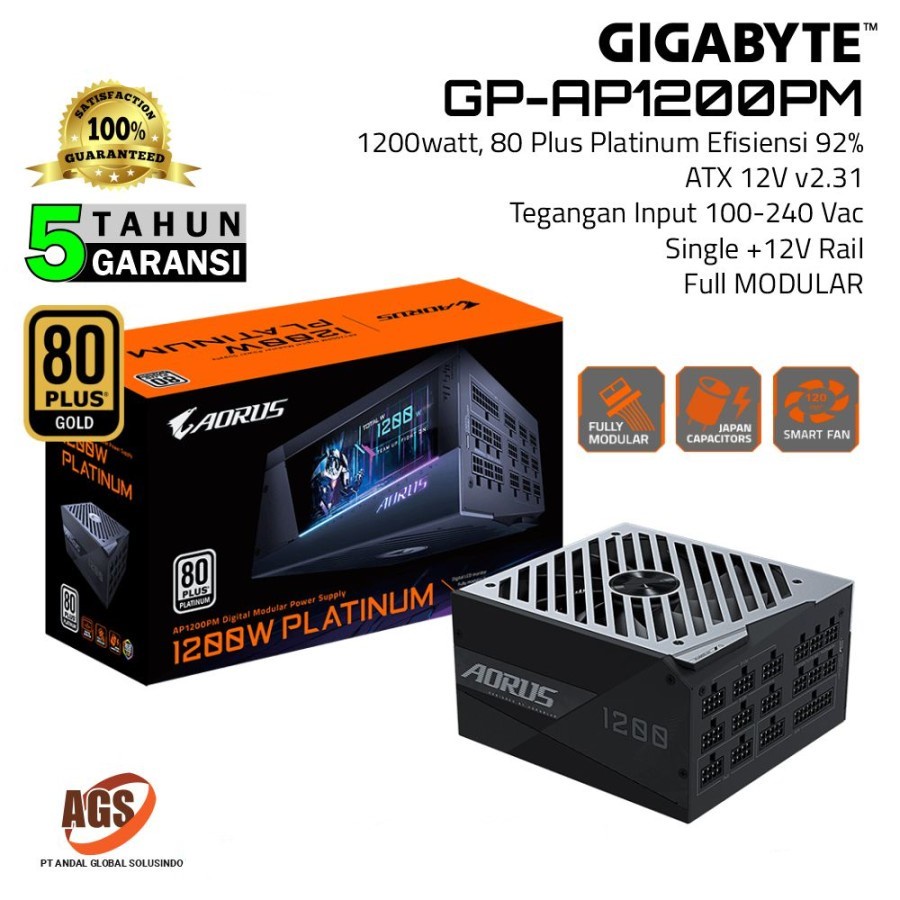

Power Supply GIGABYTE 1200W - AORUS GP-AP1200PM 80+ Platinum

Detail Power Supply GIGABYTE 1200W - AORUS GP-AP1200PM 80+ Platinum

Digital LCD monitor
80 PLUS Platinum certified

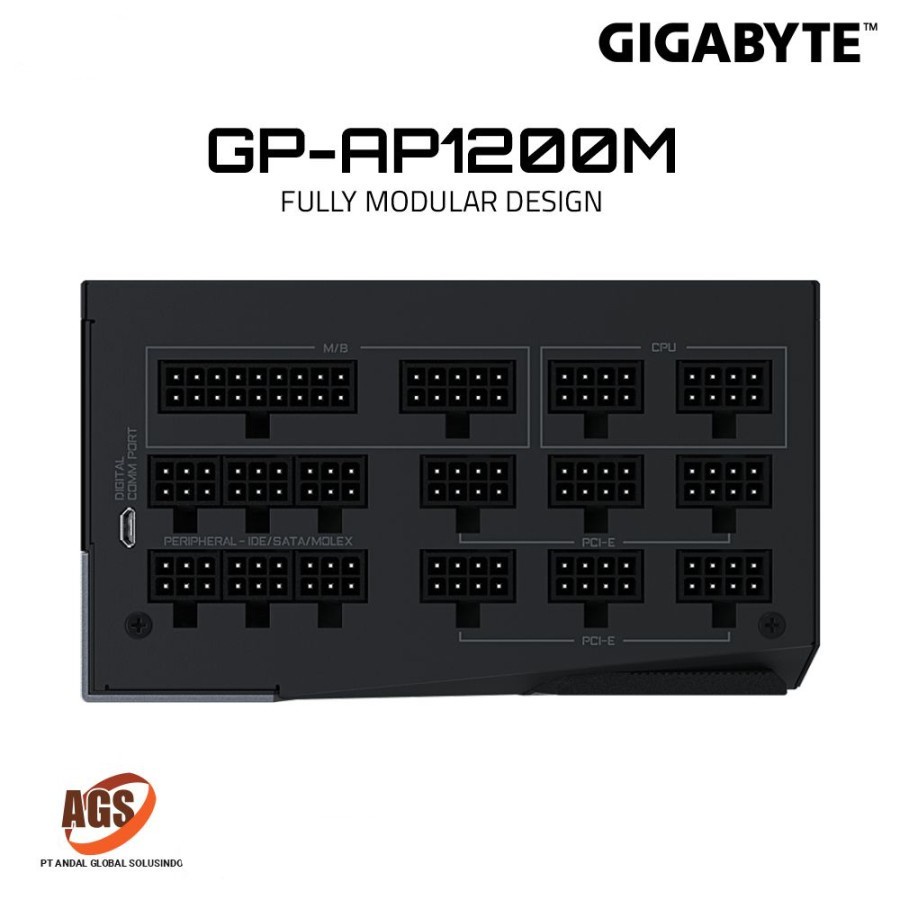

Fully modular design
100% Japanese capacitors
Compact size design
140mm smart double ball bearing fan
Fan dust removal function
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection

✓ Garansi Resmi 10 Tahun

Model : GP-AP1200PM
Type : Intel Form Factor ATX 12V v2.31

PFC : Active PFC (>0.9 typical)
Input Voltage : 100-240 Vac (full range)
Input Current : 15-7.5A
Input Frequency : 60-50 Hz

Output Capacity : 1200W

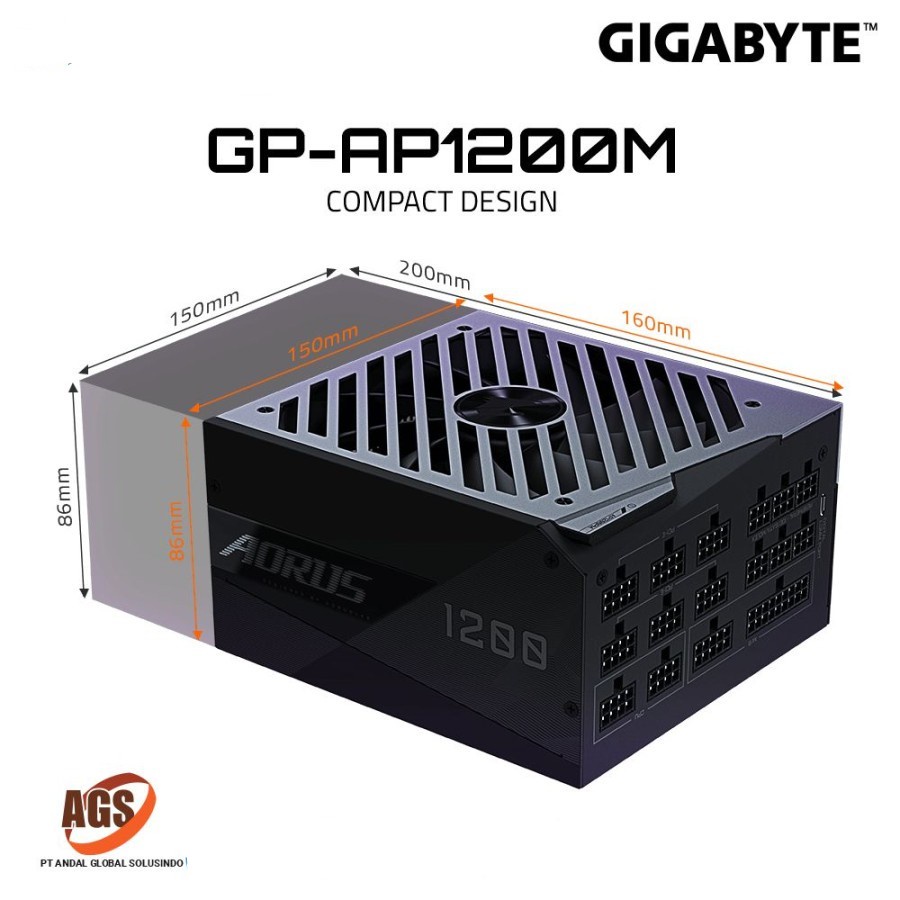

Dimension : 150 x 160 x 86mm

Fan Type : 140mm Double ball bearing Fan

80 PLUS : Platinum
Efficiency : 92% at typical load
MTBF : >100,000 hours
Protection : OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal : 100-150ms
Hold Up Time : >16ms

Cable Type : Flat, All black

Connectors :
ATX/MB 20+4 Pin x 1connector : 610mm * 1cable
CPU/EPS 4+4 Pin x 2connectors : 650mm * 2cables
PCI-e 6+2 Pin x 2connectors : 650mm * 2cables
PCI-e 6+2 Pin x 8connectors : 650mm+150mm * 4cables
SATA x 16connectors : 650mm+150mm+150mm+150mm*4 cables
4 Pin Peripheral x 6connectors + 4-Pin floppy x 2connectors : 600mm+120mm+120mm+150mm*2 cables
