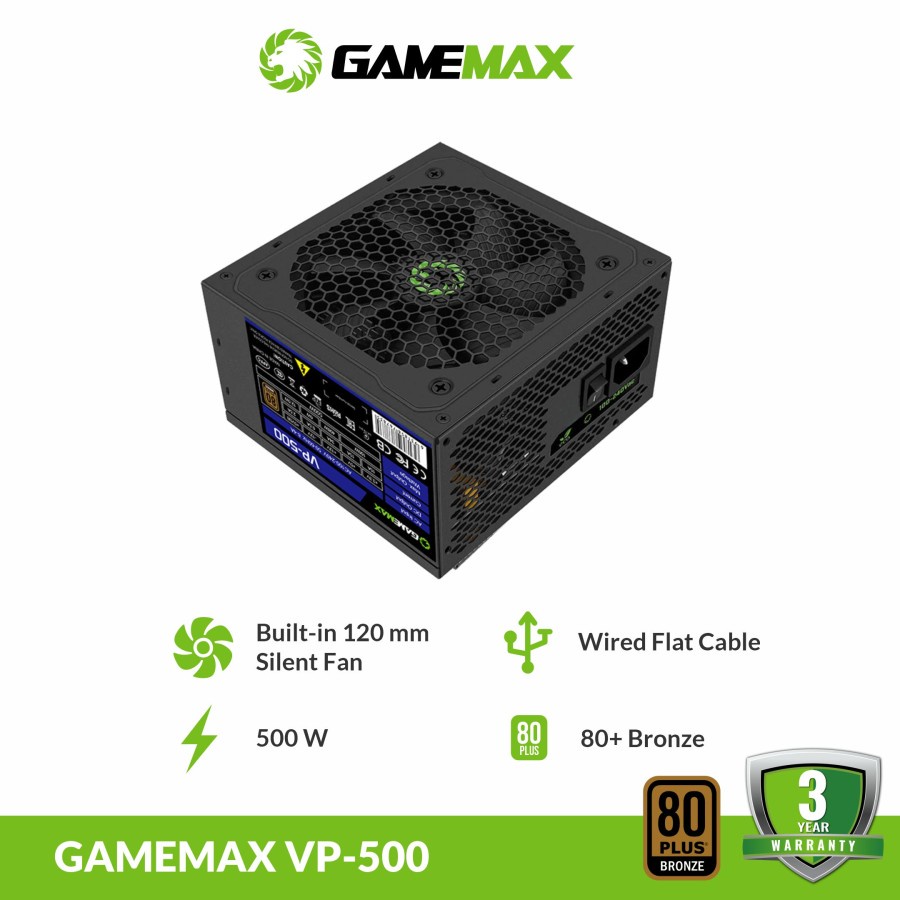

Power Supply GameMax VP-500 Value and Performance 80+

Detail Power Supply GameMax VP-500 Value and Performance 80+

VP-500
The GameMax VP series power supply offers “Value and Performance” scheme. 80Plus ready for support high efficiency required, also it is continuing a popular for computer builds.

⚡【Performance】 Honeycomb ventilation design for optimal heat dissipation. 80 plus Bronze certified, with 85% efficiency or higher under typical loads. Non-modular output wire rod, optimize routing requirements.

⚡【Highest Protection】Powerful single +12V rails offer stable DC output and support high-end graphic card and PC system. Grade A+ capacitors offer the highest stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP electrical protection included.

Spesifikasi :
80PLUS® : APFC 80+ Plus Compliant
Efficiency Level : 80+ Bronze
Noise Level : <32dBA (at 100% load)
Form Factor : Intel ATX 12 V 2.31
Dimensions : 140 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information
Fan Size : 120 mm
Fan Bearing : Fluid Dynamic Bearing
Life Expectancy : 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity : Wired Cabling
Cable type : Black tube shield along with colors CPU and PCIe connecor

Electrical Features
Operating Temperature : 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan : 100,000 hours

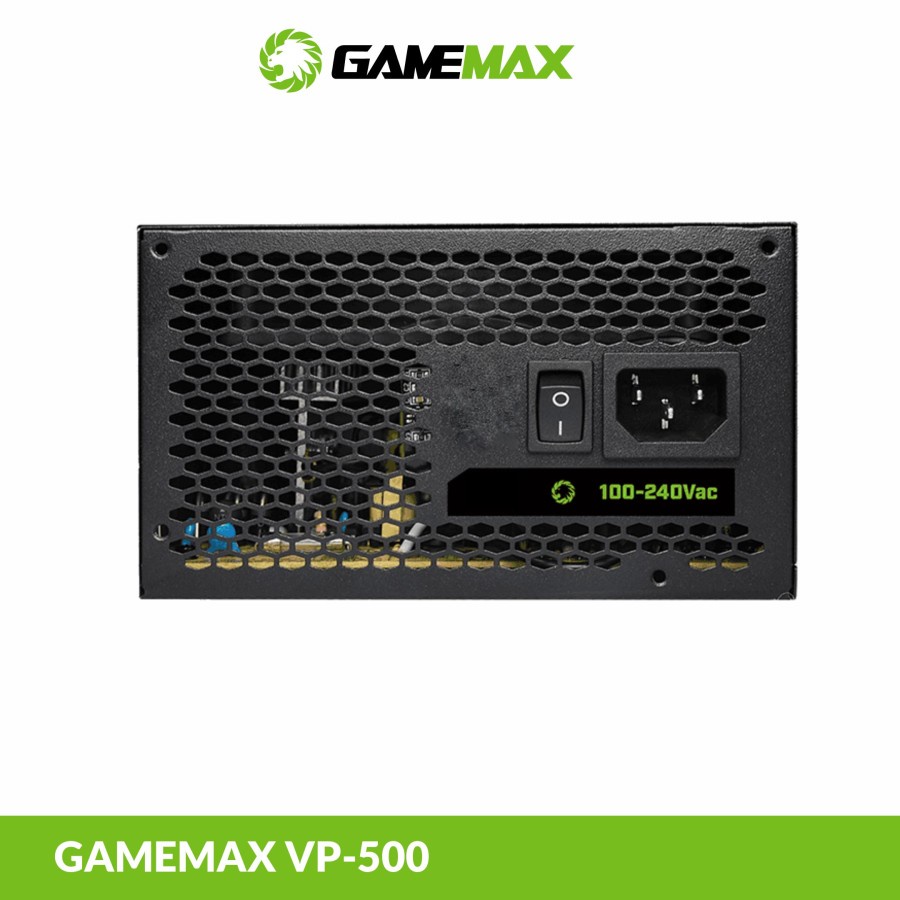

AC Input : Full Range AC input (100-240Vac)
Protection : OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC : CB, CCC,CE
Environmental Compliance : RoHS, WEEE, ErP Lot 6

Gambar produk
