Power Supply GAMEMAX PSU VP-500 RGB 80+

Detail Power Supply GAMEMAX PSU VP-500 RGB 80+

Technical Specifications
80PLUS® APFC 80+ Plus Compliant
Efficiency Level 80+ Bronze
Noise Level Zero (ECO-ON),<32dBA (at 100% load)
Form Factor Intel ATX 12 V 2.31
Dimensions 140 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control ECO-ON/OFF
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Wired Cabling
Cable type Black tube shield along with colors CPU and PCIe connecor
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range AC input (100-240Vac)
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC CB, CCC,CE
Environmental Compliance RoHS, WEEE, ErP Lot 6

PSU SPECIFICATION
AC INPUT: AC 100-240V 50-60Hz 8-4A
DC Voltage +3.3V +5V +12V -12V +5VSB
Output 15A 15A 34A 0.5A 2.5A
Watt 100W 408W 6W 12.5 W
Max Output 500W

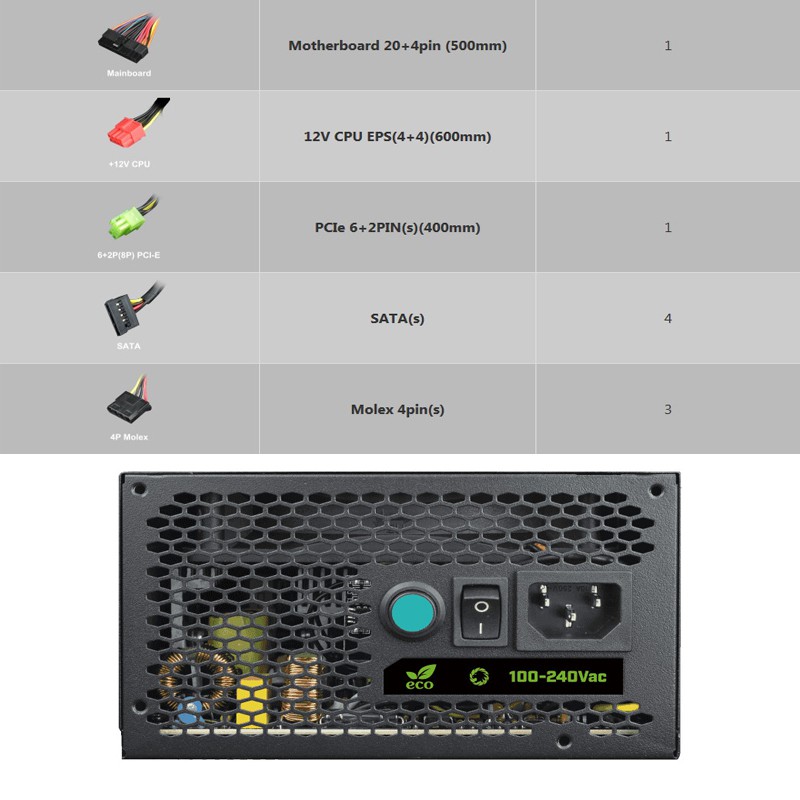

Cable Pin:
1x Motherboard 20+4pin (500mm)
1x 12V CPU EPS(4+4)(600mm)
1x PCIe 6+2PIN(s)(400mm)
4x SATA(s)
3x Molex 4pin(s)

Gambar produk
