Power Supply Enermax Revolution DF 750 Watt 80+ Gold Full Modular PSU 750Watt 80 Plus

Detail Power Supply Enermax Revolution DF 750 Watt 80+ Gold Full Modular PSU 750Watt 80 Plus

Mohon konfirmasi terlebih dahulu sebelum melakukan pemesanan
Terima kasih

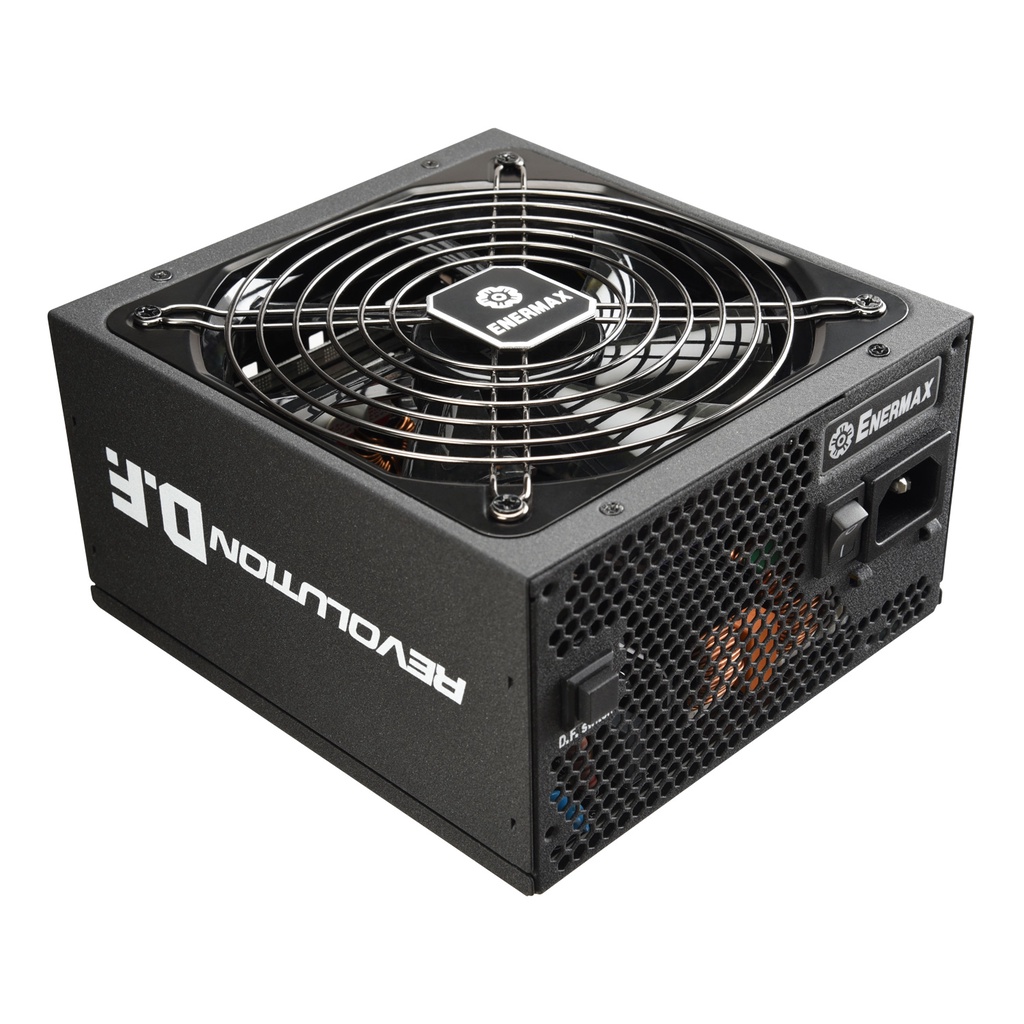

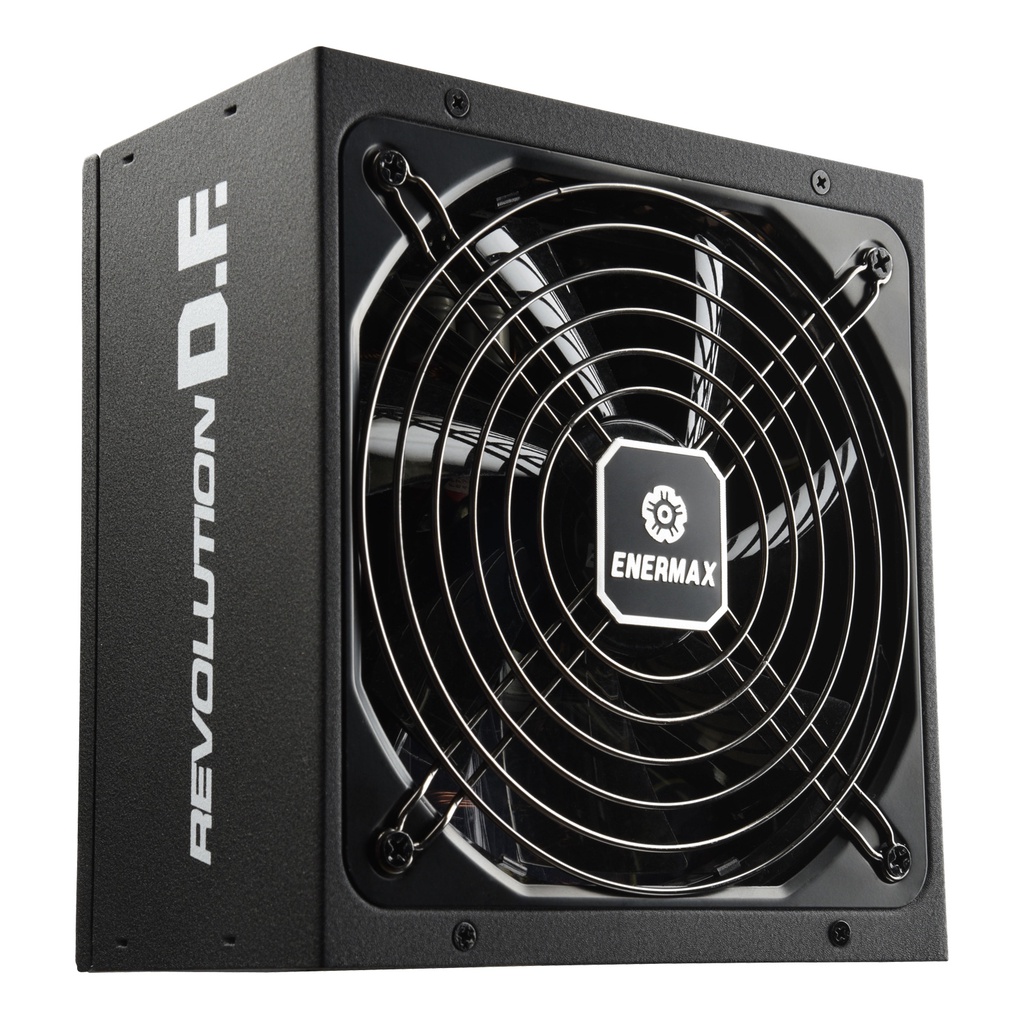

REVOLUTION D.F. 750 Watt 80 PLUS Gold Full-Modular Power Supply
‧ 80 PLUS Gold certification

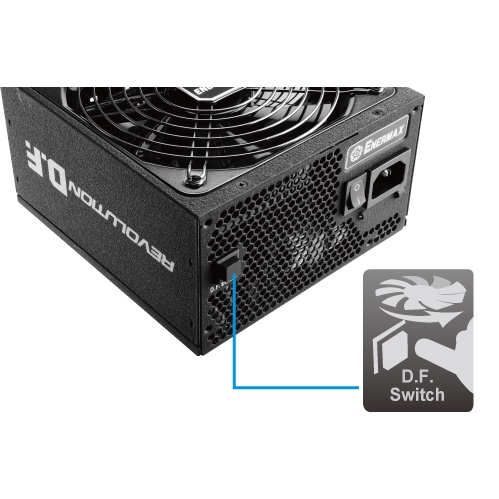

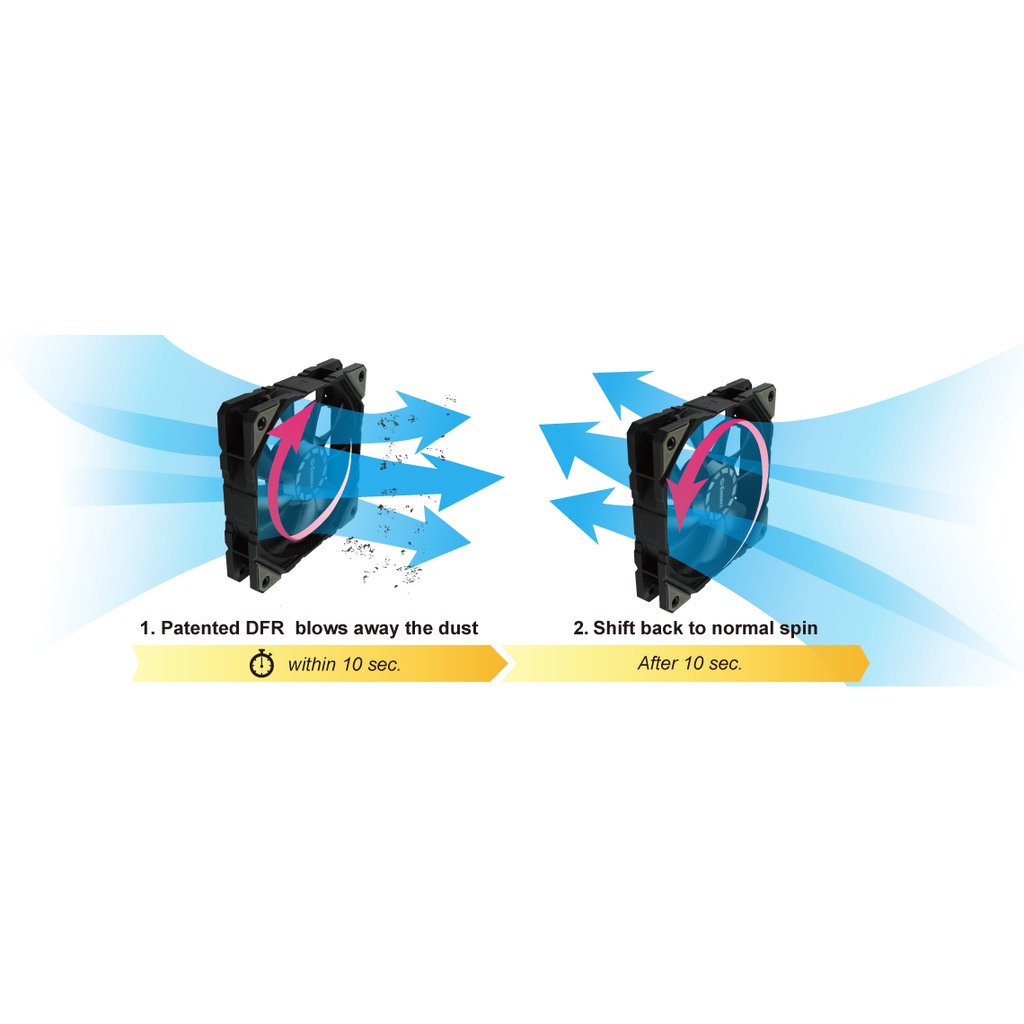

‧ D.F. switch for users to activate DFRTM function anytime
during operation
‧ Smart Airflow Control (SAC) design ensures an almost
inaudible operation

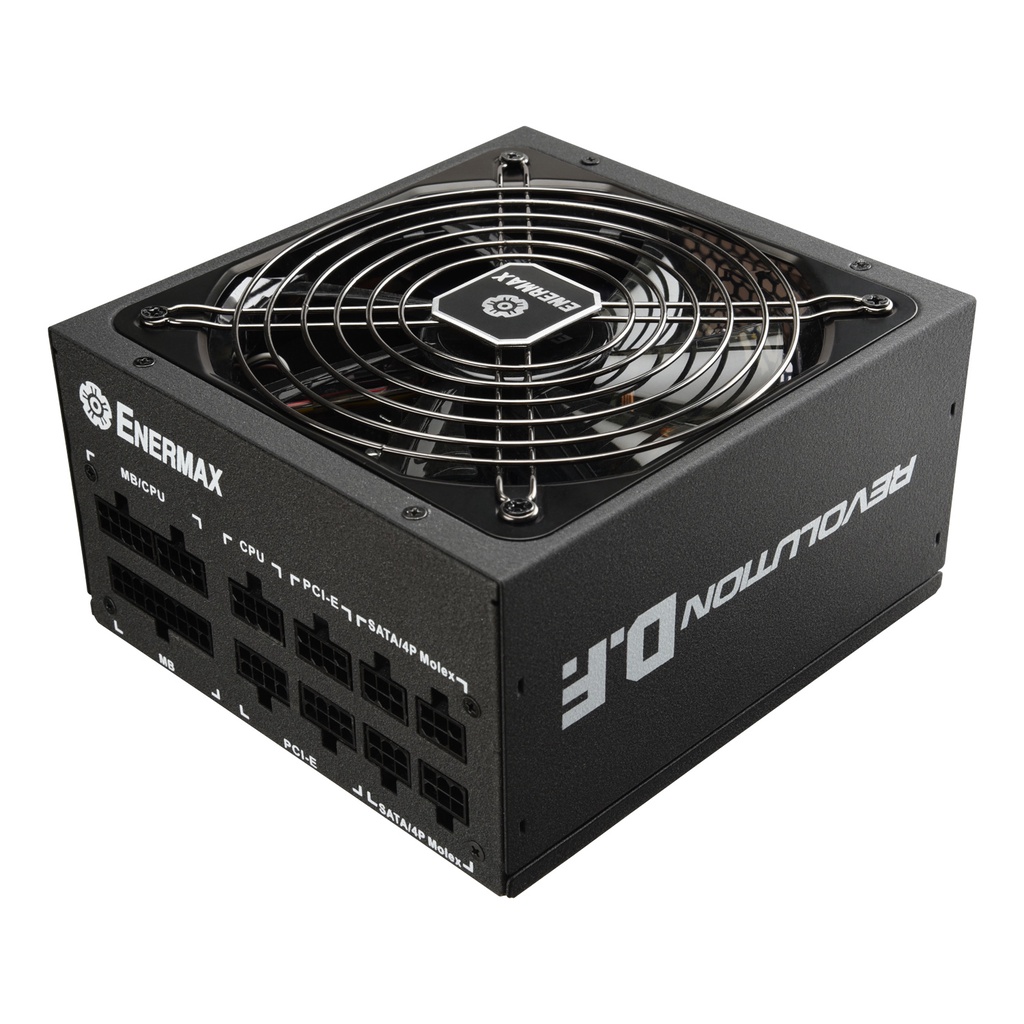

‧ Full modular design with 100% flat cables

SPECIFICATION

General Data
MODEL = ERF750EWT
EFFICIENCY = GOLD
MODULAR = Full modular
CABLE TYPE = Black flat
TOTAL POWER (W) = 750
INPUT VOLTAGE (V) = 100-240
INPUT CURRENT (A) = 10
INPUT FREQUENCY (HZ) = 47-63
FAN SIZE (MM) = 135
OPERATING TEMPERATURE (°C) = 50
MTBF (HOURS) = >100K
PROTECTION = OCP, OVP, UVP, OPP, OTP, SCP, SIP
DIMENSION (D X W X H), (MM) = 160x150x86

Output
+3.3V(A) = 22
+5V(A) = 22
+12V1(A) = 25
+12V2(A) = 25
+12V3(A) = 35
+12V4(A) = 35
-12V(A) = 0.3
+5VSB(A) = 2.5
COMBINED WATTAGE 12V (W) = 750
COMBINED WATTAGE 3.3V + 5V(W) = 120

CABLES & CONNECTORS

ERF750EWT
Mainboard 24 Pin = 1 [ 1x 60cm ]
CPU 4+4 Pin = 2 [ 2x 70cm ]
PCI-E 6+2 Pin (8 Pin) = 4 [ 2x 50/ 15cm ]
SATA = 8 [ 2x 45/ 15/ 15/ 15cm ]
4 Pin Molex = 4 [ 1x 45/ 15/ 15/ 15cm ]
FDD = 1 [ 1x 10cm ]

Gambar produk
