Power Supply Enermax MaxTytan 800 Watt 80+ Titanium Full Modular PSU

Detail Power Supply Enermax MaxTytan 800 Watt 80+ Titanium Full Modular PSU

Mohon konfirmasi terlebih dahulu sebelum melakukan pemesanan
Terima kasih

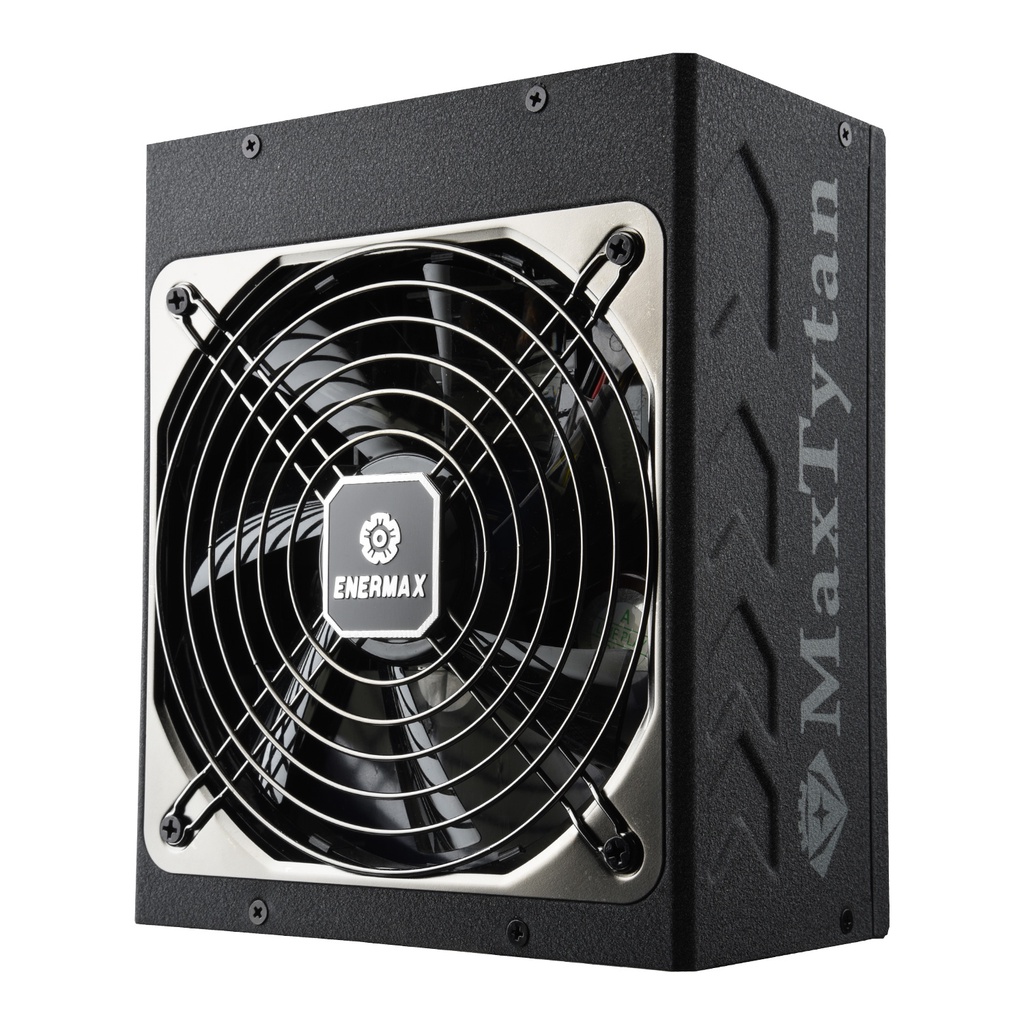

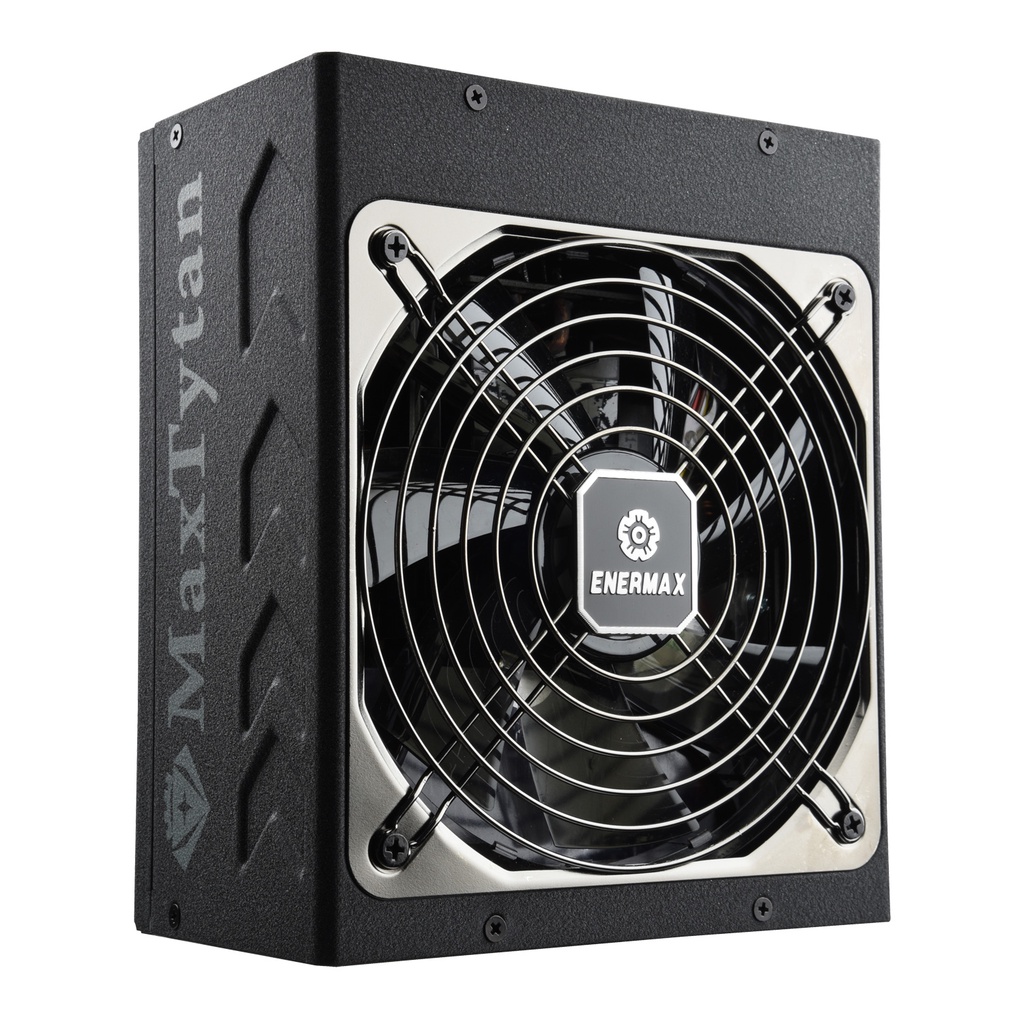

MaxTytan 800W
‧ 80 PLUS® Titanium with over 94% efficiency
‧ D.F. switch for users to activate DFRTM tech.
anytime during operation
‧ Fanless mode before 55% of system load for
silent operation

CABLES & CONNECTORS

EMT800EWT
Mainboard 24 Pin = 1 [ 1x 60cm ]
CPU 4+4 Pin = 1[ 1x 60cm ]
CPU 8 Pin = 1[ 1x 60cm ]
2xPCI-E 6+2 Pin (8 Pin) = 6[ 3x 60cm ]
SATA = 12 [ 3x 50/ 15/ 15/ 15cm ]
4 Pin Molex = 4[ 1x 50/ 15/ 15/ 15cm ]
FDD = 1 [ 1x 10cm ]

SPECIFICATION

General Data
MODEL = EMT800EWT
EFFICIENCY = TITANIUM
MODULAR = Full modular
CABLE TYPE = SLEEMAX (Individual sleeved)
TOTAL POWER (W) = 800
INPUT VOLTAGE (V) = 100-240, Active PFC
INPUT CURRENT (A) = 12-6
INPUT FREQUENCY (HZ) = 47-63
FAN SIZE (MM) = 140
OPERATING TEMPERATURE (°C) = 50
MTBF (HOURS) = >100K
PROTECTION = OCP, OVP, UVP, OTP, OPP, SCP, SIP
DIMENSION (D X W X H), (MM) = 180x150x86

Output
+3.3V(A) = 20
+5V(A) = 20
+12V1(A) = 66.5
-12V(A) = 0.3
+5VSB(A) = 3
COMBINED WATTAGE 12V (W) = 798
COMBINED WATTAGE 3.3V + 5V(W) = 100
