Power Supply Digital Long Wei DC 30v 5a LW-K305D Adjustable 30 Volt 5 Ampere

Detail Power Supply Digital Long Wei DC 30v 5a LW-K305D Adjustable 30 Volt 5 Ampere

**HARAP PILIH PACKING BUBBLE untuk pengiriman yang lebih aman, packing standard pakai plastik**

Power Supply Digital
Merk: Long Wei
Tipe: LW-K305D

Specification:
Line Voltage: 200-240V AC,50Hz-60Hz
Voltage Display Accuracy 0.5%
Current Display Accuracy 0.5%
Efficiency: >85%

Voltage Regulation
Load Regulation(10-100%): 50mV
Line Regulation(200-240VAC): 20mV
Ripple & Noise(P-P): 50mV

Current Regulation
Load Regulation(10-100%): 20mA
Line Regulation(200-240VAC): 20mA
Ripple & Noise(P-P): 20mA

Others
Operating Ambient: -10C to + 60C/ 30%RH to 90% RH
Dimension (mm): 70 x 160 x 220
Weight: 1.8 kg

Feature:
*single phase, single output
*Perfect line protection function
*apply for sticking technology small size,good appearance
*Using multi-circle wire-wound potentiator with high efficiency
*The cooling system for intelligent temperature control fan
*set of posts could dual-use(insert or connect),prevent the posts heat and loose

This serial single output switch power supply is a kind of DC regulated power supply with high efficiency and stability. It can be acted both as constant voltage as well as constant current dc power supply. For this serial power supply,it has perfect protection circuit, can be used in many areas.

Application:
Charge batteries, PCB board manufacturing industry/motors, LED products, and dc fans test/electrofacing, electrolyzation, electronic components ageing/laboratory, Electronic equipment, automatic Test Equipment/All other occasions need to use DC Power Supply

Kelengkapan Paket :
- DC power supply Long Wei LW-K305D
- Kabel power

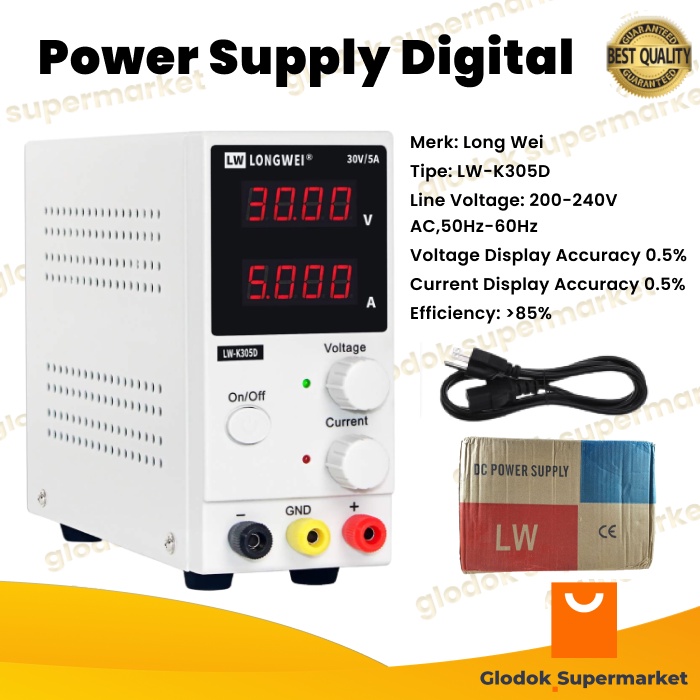

Gambar produk
