Power Supply Deepcool PX1000G ATX 3.0 1000Watt 80+ Gold Full Modular

Detail Power Supply Deepcool PX1000G ATX 3.0 1000Watt 80+ Gold Full Modular

Power Supply Deepcool PX1000G ATX 3.0 1000Watt 80+ Gold Full Modular
PX1000G

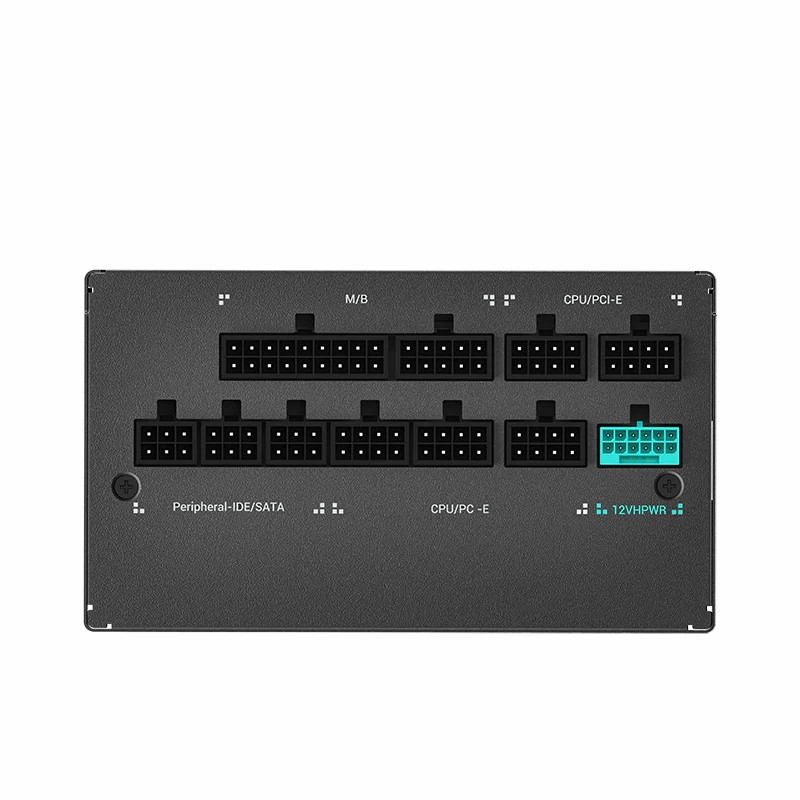

The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.

Past, Present,
and Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1000G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

Premium Quality
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1000G will operate at altitudes up to 5000 meters above sea level.

PCI-e 5.0 Power Perfected
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.

Static to Dynamic
The PX1000G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Technical Spec
Type ATX12V V3.0
Product Dimensions 150×160×86mm (W x L x H)
Efficiency certification 80Plus GOLD/Cybenetics_Platinum
Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 - 40℃
Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman
MTBF 100,000 Hours
