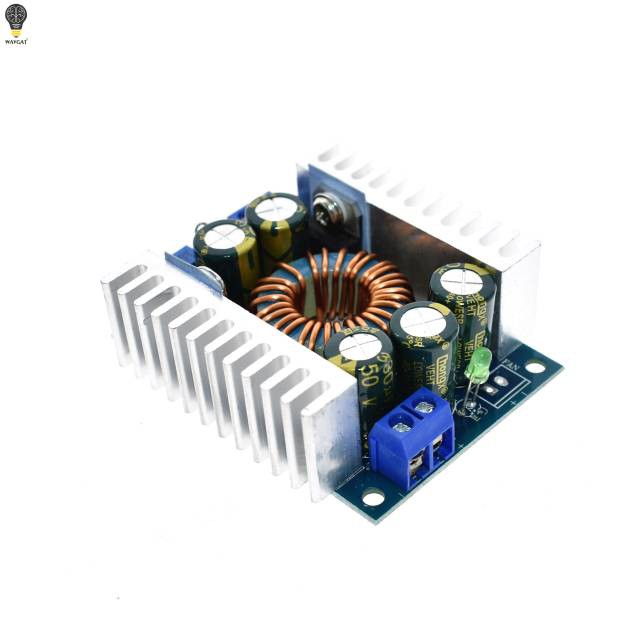

Detail Power Supply DC-DC 12A Low Ripple Adjustable 95% DC 5-40V to 1,2V-36V G197
Module nature: non-isolated buck module (BUCK)Input voltage: 4.5-30V Please do not exceed 30V input voltage! ! !
Output voltage: 0.8-30V continuously adjustable (default output 5V)
(can be fixed output)
Output current: 0-12A 100W Enhanced heat dissipation up to 200W,
Working temperature: -40~+85 degrees
Working frequency: 300KHz
Conversion efficiency: up to 95% (efficiency related to input, output voltage, current, voltage difference)
Short circuit protection: Yes (limit current 14A), please try not to short circuit
Over temperature protection: Yes (automatically turn off the output after over temperature)
Input reverse connection protection: none, (if necessary, please input the diode in the input)
Installation method: 4 3mm silk
Wiring method: terminal block, solder-free, V-IN is input, V-OUT is output, module with housing is wire bond output.
Module size: length 60mm width 51mm height 22mm
