Detail Power Supply Cougar GEX-650 650Watt Gold Modular - PSU 650W Cougar GEX650 Modular Gold 80+
Specifications
Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
GEX650 AC100-240V
50-60Hz 10-5A 18A 20A 54.1A 0.3A 3A 650W
100W 649.2W
GEX750 AC100-240V
50-60Hz 10-5A 18A 20A 62.5A 0.3A 3A 750W
100W 750W
GEX850 AC100-240V
50-60Hz 12-6A 20A 20A 70.8A 0.3A 3A 850W
120W 849.6W

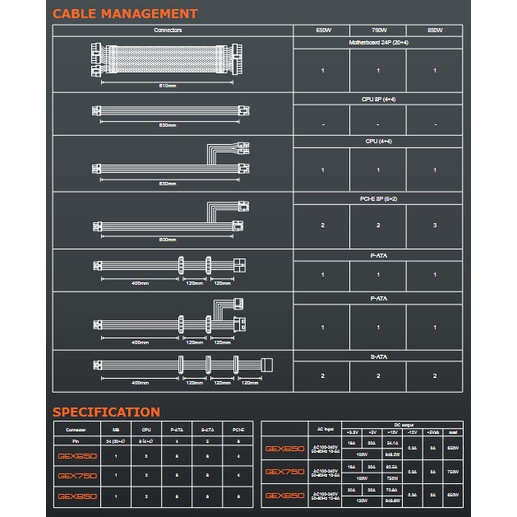

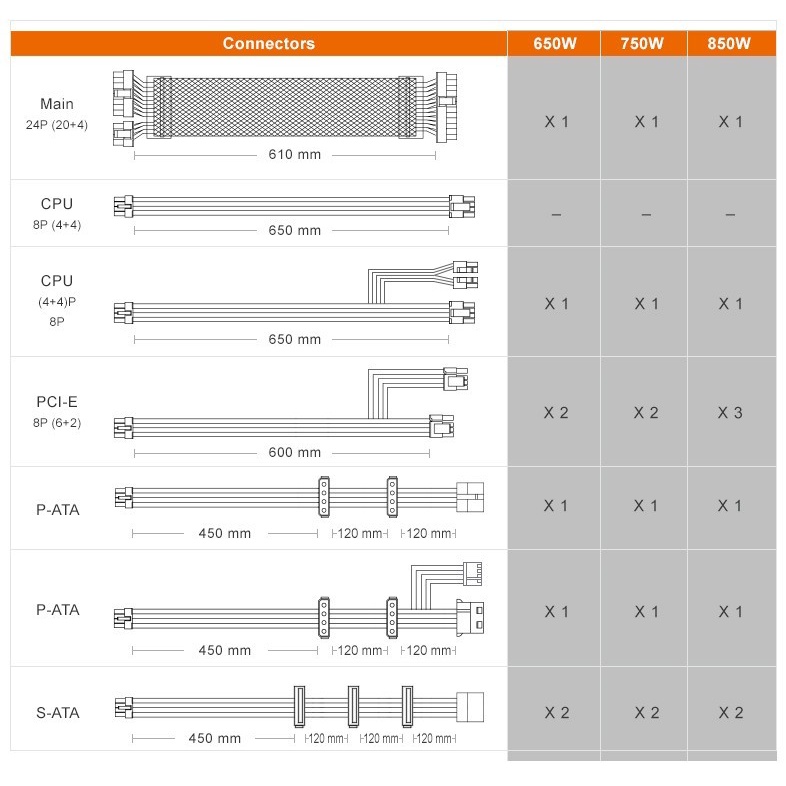

Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins 4 Pins 5 Pins 8(6+2) Pins
GEX650 1 2 6 8 4
GEX750 1 2 6 8 4
GEX850 1 2 6

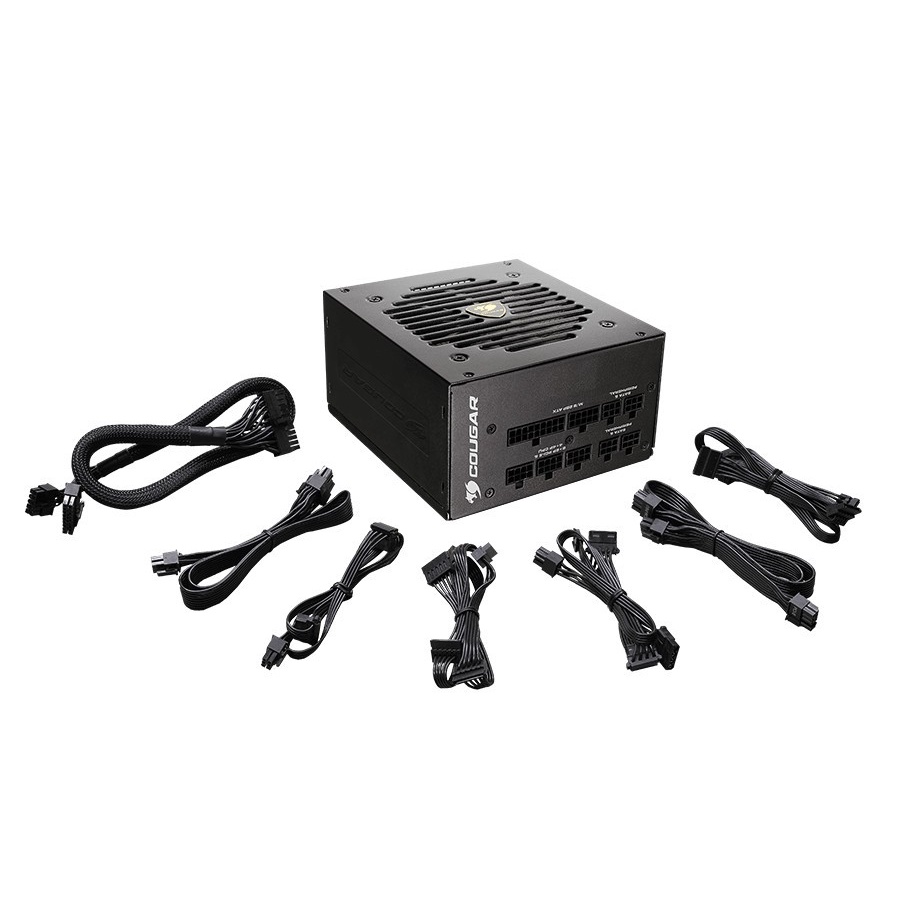

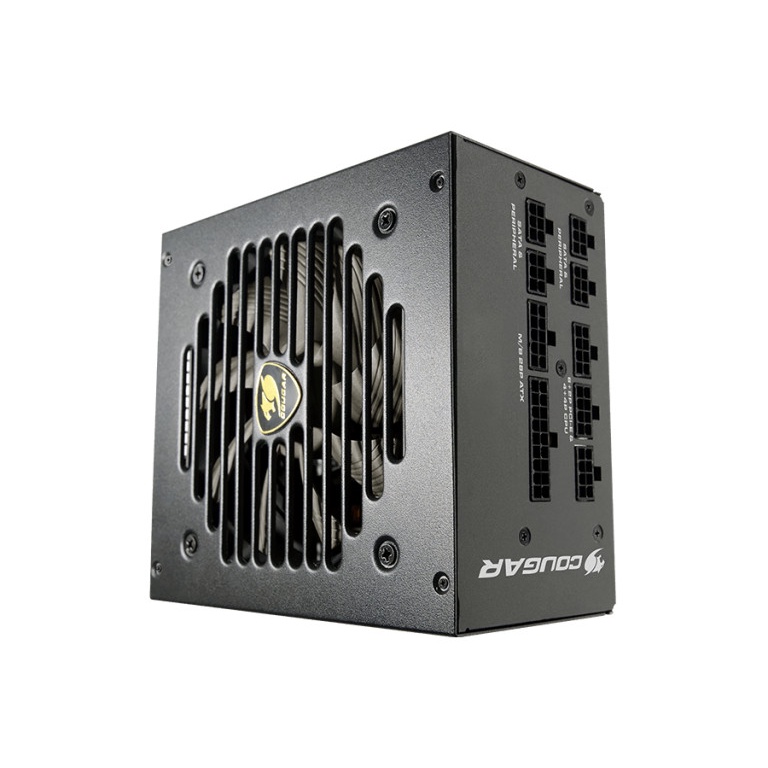

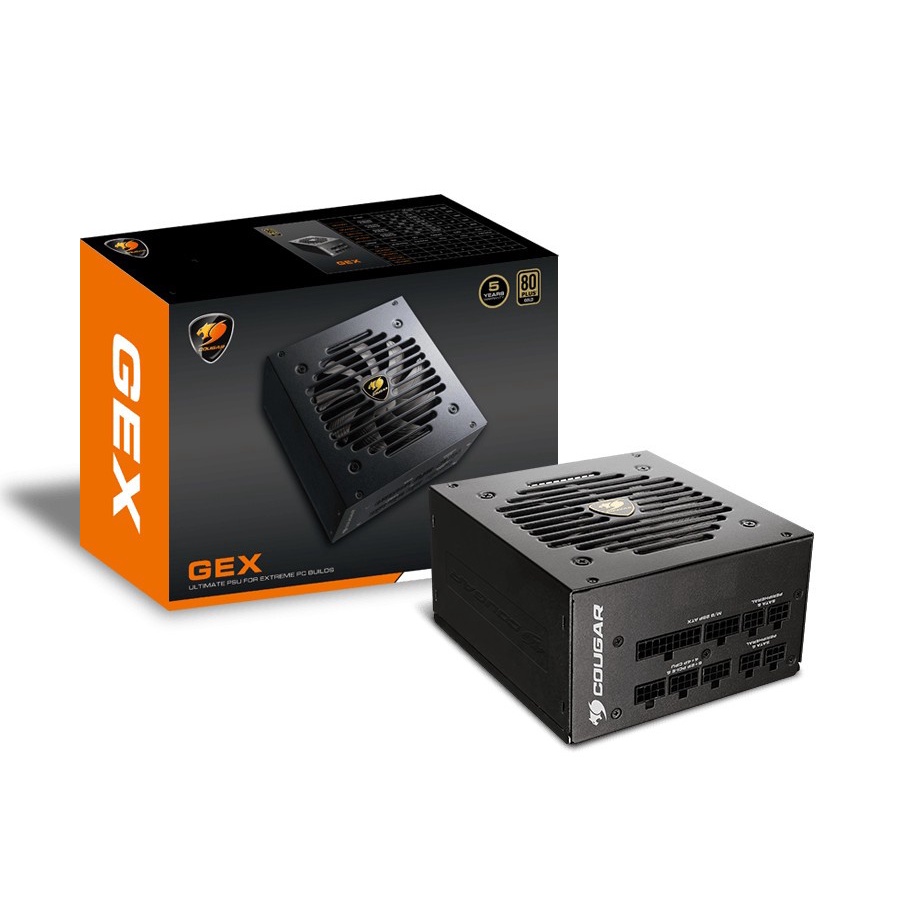

Gambar produk
