Detail Power Supply COOLER MASTER ELITE 500 V4, 500 Watt 80 Plus
Power Supply COOLER MASTER ELITE 500 V4, 500 Watt 80 Plus

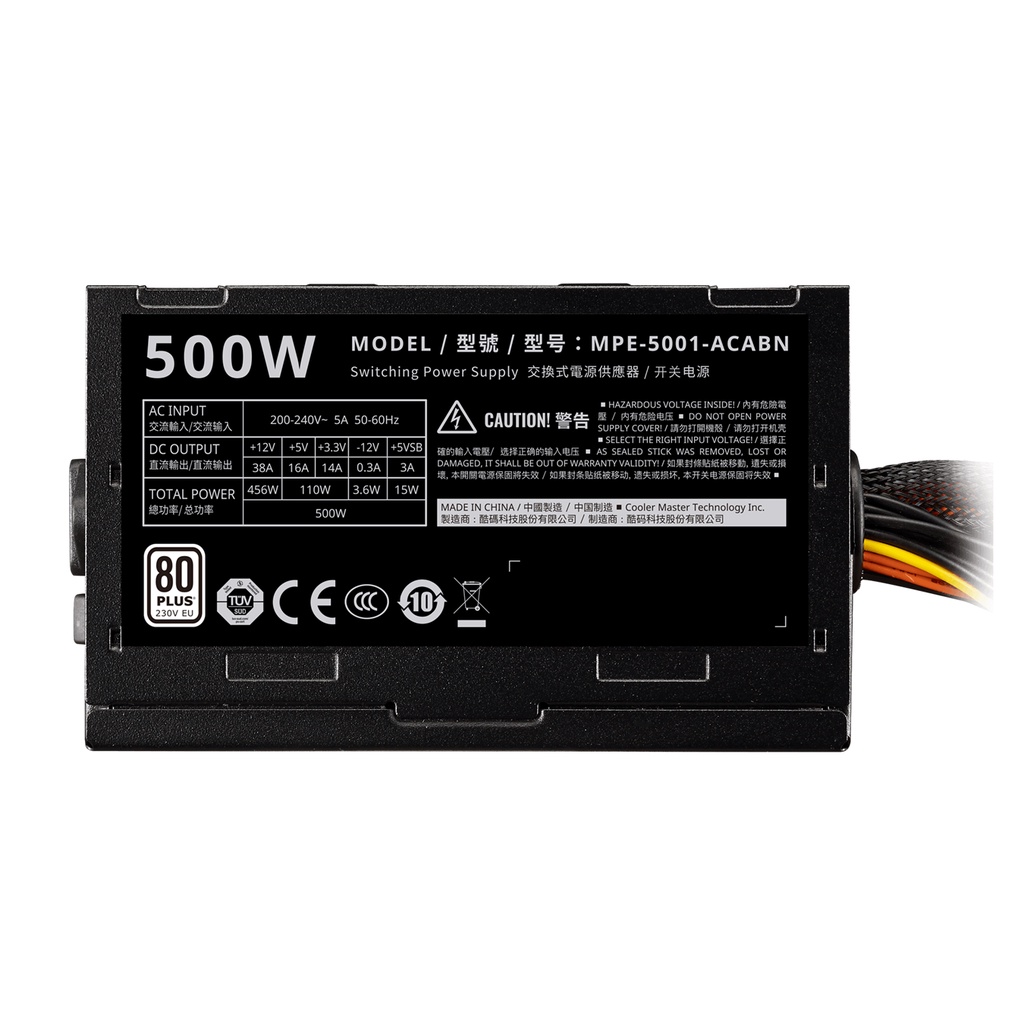

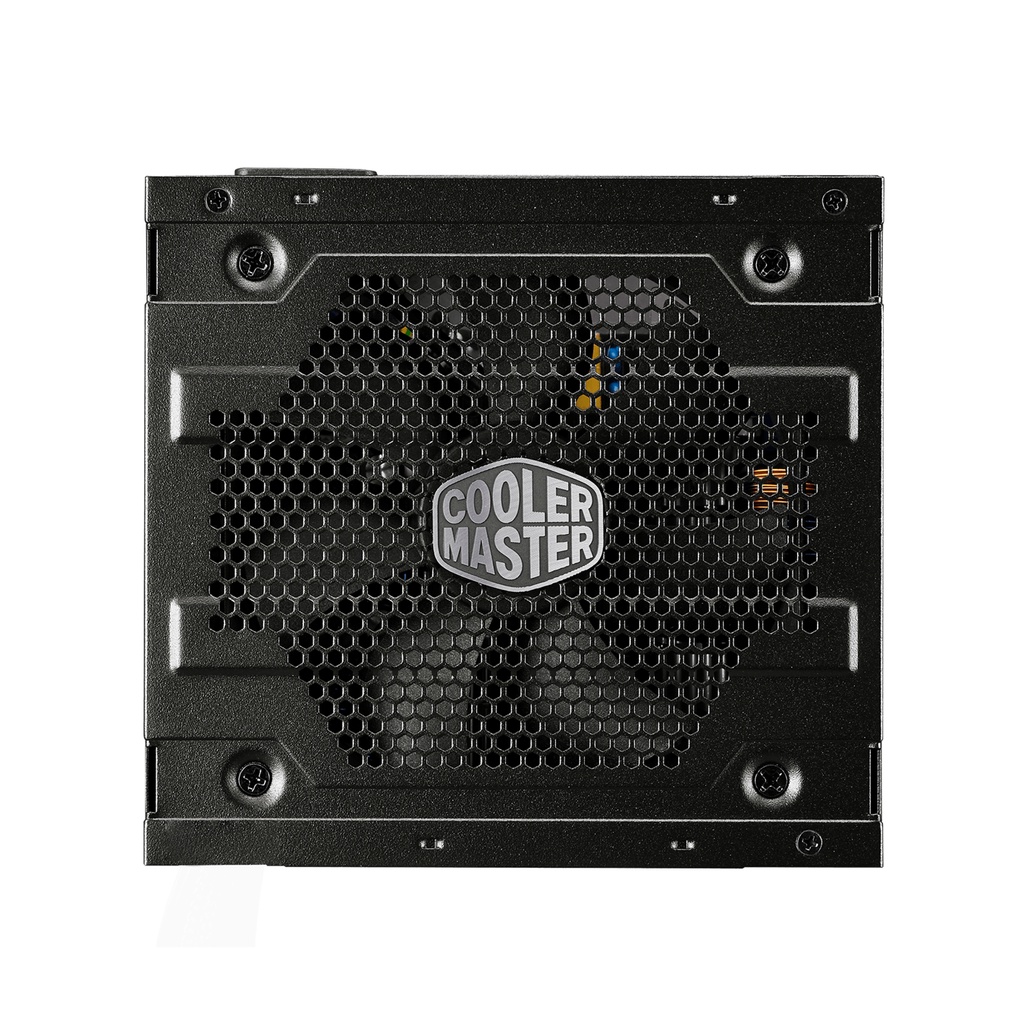

Spesifikasi : MODEL MPE-5001-ACABN ATX VERSION ATX 12V Ver. 2.41 PFC Active PFC INPUT VOLTAGE 200-240Vac INPUT CURRENT 5A INPUT FREQUENCY 50-60Hz DIMENSIONS (L X W X H) 140 x 150 x 86 mm FAN SIZE 120mm FAN BEARING Sleeve Bearing EFFICIENCY 85% @ Typical Load 80 PLUS RATING 80 PLUS Standard 230V EU ERP 2014 LOT 3 Yes OPERATING TEMPERATURE 40°C POWER GOOD SIGNAL 100-500ms HOLD UP TIME >14ms at 100% load MTBF >100,000 Hours PROTECTIONS OVP, OPP, OTP, SCP, UVP REGULATORY TUV, cTUVus, CE, BSMI, FCC, EAC, RCM, KCC, CCC, CB MB 24-PIN CONNECTORS 1 EPS 4+4 PIN CONNECTORS 1 SATA CONNECTORS 5 PERIPHERAL 4-PIN CONNECTORS 3 PCI-E 6+2 PIN CONNECTORS 2 SERIE Elite Series 80 PLUS Standard MODULAR Non Modular WATTAGE 500 to 750W
