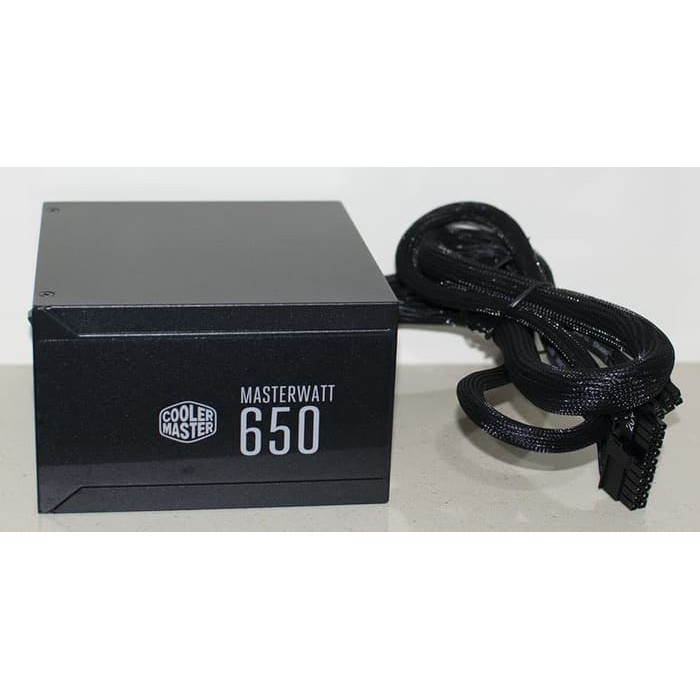

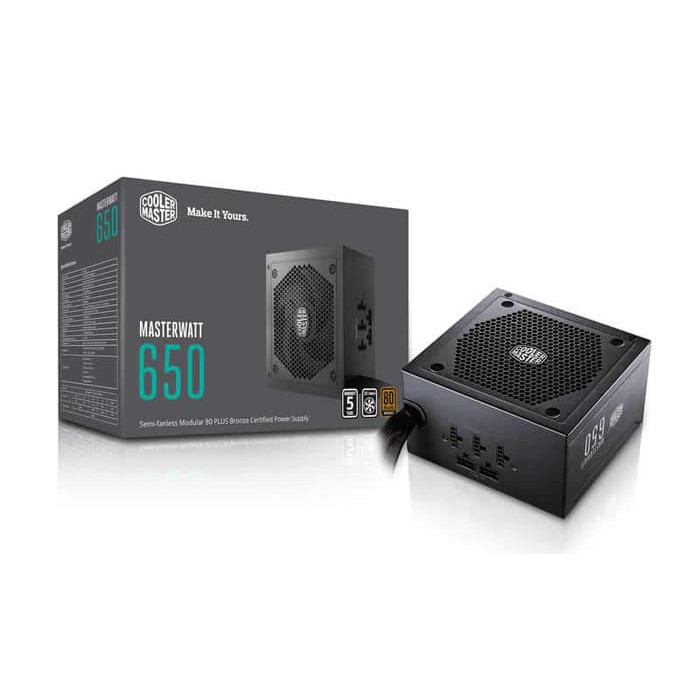

Detail Power Supply Cooler Master MasterWatt 650W 80+ Bronze Modular
Specifications Product Name MasterWatt 650 Product Number MPX-6501-AMAAB Type ATX 12V V2.4 PFC Active PFC Operation Voltage 100-240 Vac Input Voltage 100-240 Vac Input Current 10-5 A Input Frequency 50-60 Hz Dimensions (LxBxH) 140 x 150 x 86 mm Fan Size 120 mm Fan Bearing LDB Power Good Signal 100-500 ms Hold Up Time 16ms at 80% load Efficiency 85% @ Typical Load ErP 2013 Lot 6 Yes MTBF >100,000 hours Operating Temperature 0 ~ 40C Protections OCP / OVP / UVP / OPP / OTP / SCP Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB Connectors MB 24 Pin 1 CPU 12V 4+4 Pin 1 SATA 9 Peripheral 4 Pin 3 FDD Cable 4 Pin 1 PCI-e 6+2 Pin 4
