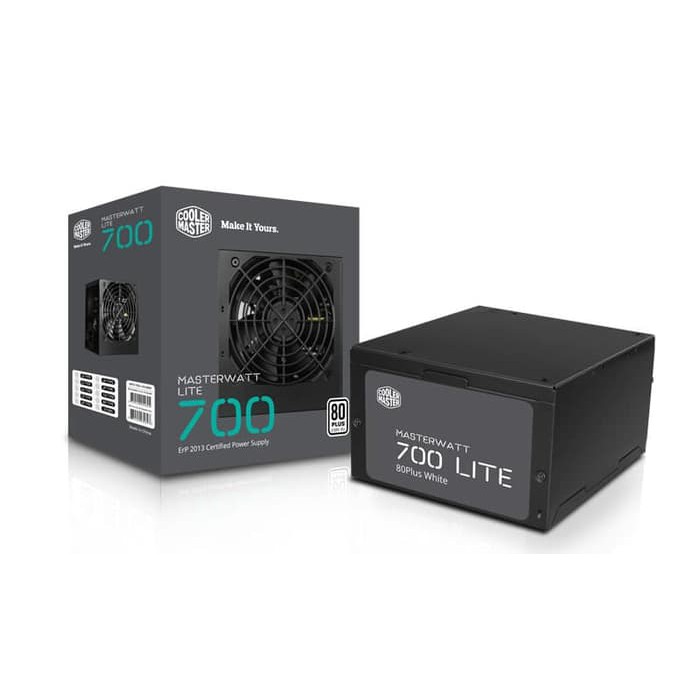

Detail Power Supply COOLER MASTER MasterWatt Lite 700W 80+ Sleeve
Specifications Product Name MasterWatt Lite 700W 80+Sleeve A/EU [MPX-7001-ACABW-ES] Model number [MPX-7001-ACABW-ES] Type ATX 12V V2.31 PFC Active PFC Input Voltage 200-240Vac Input Current 3.5-5A Input Frequency 47-63Hz Dimensions (LxWxH) 150mm x 140mm x 86mm Fan Type Silent 120mm HDB fan PowerGood Signal 100-500 ms Hold Up Time >10ms at 100% full load@230Vac Efficiency 85% Typically MTBF >100,000 hours Protections OCP / OVP / OPP / OTP / SCP / UVP Operating Temperature 0~40C Connectors MB 20+4 Pin 1 CPU 12V 4+4Pin 1 SATA 6 Peripheral 4 Pin 3 FDD Cable 4 Pin 1 PCI-e 6+2 Pin 2 Regulatory TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM, CB
