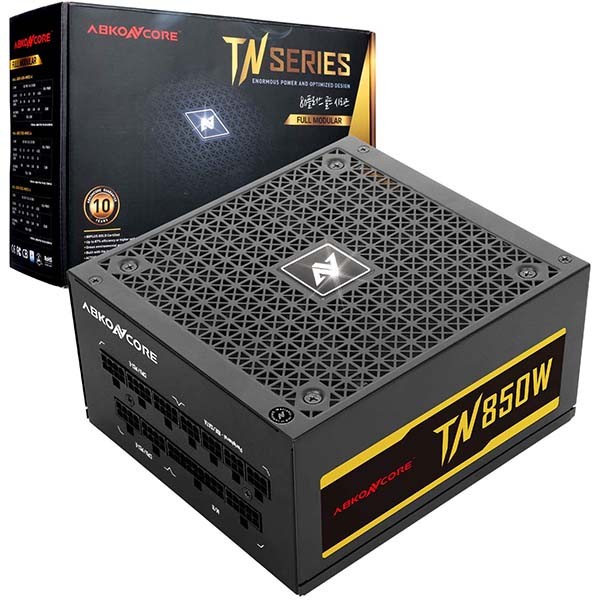

POWER SUPPLY ABKONCORE TENERGY 850W 80+ GOLD FULL MODULAR - ORIGINAL

Detail POWER SUPPLY ABKONCORE TENERGY 850W 80+ GOLD FULL MODULAR - ORIGINAL

Model name Tenergy 850W Gold Modular
Main color the black
Form factor ATX

Certification
ATX12V version 2.5

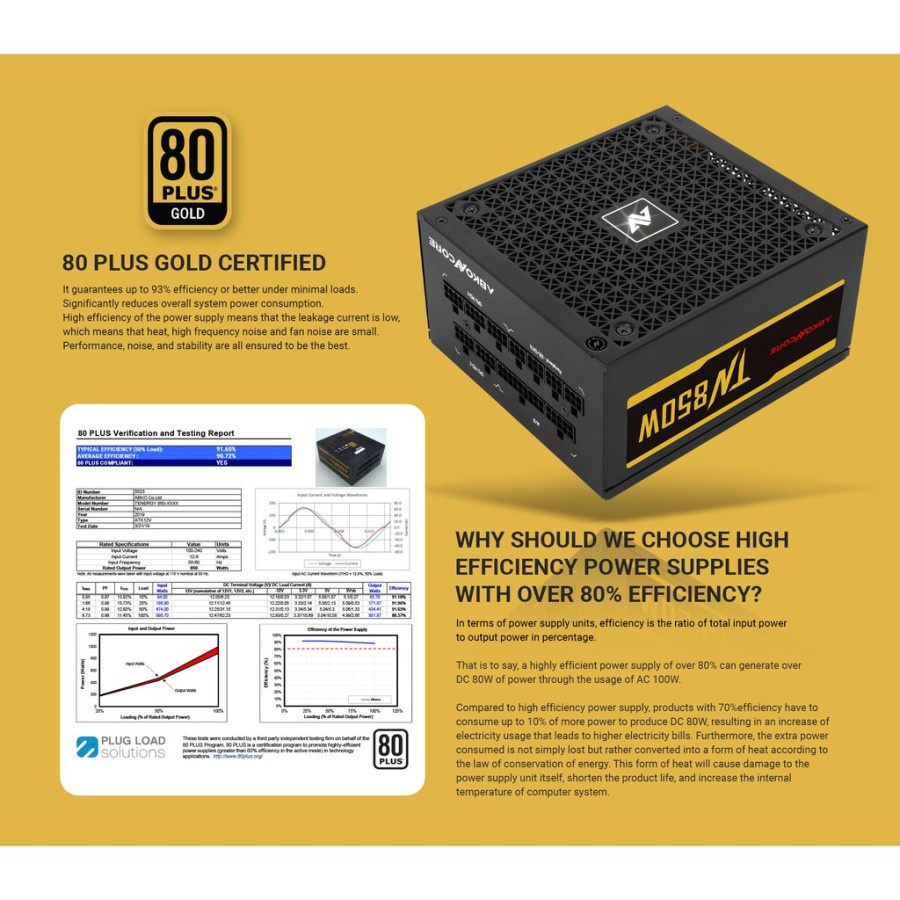

80 PLUS certificate Gold
Power Factor Corrector (PFC) active (APFC)

Parameters
Mains input voltage range 100-240 V, 12-6 A, 50-60 Hz
Power 850 Wt
Power on the 12V line 840 Wt
Line current +3.3 V 20 A
Line current +5 V 20 A
Line current + 12V 70 A
Line current -12 V 0.3 A
Standby current (+ 5V Standby) 3 A

Cables and connectors
Modular cable connection Yes
Main power connector 24 (20 + 4) pin - 1 pc.
Processor power connector (CPU) 8 pin - 1 pc. / 8 (4 + 4) pin - 1 pc.
Graphics card power connector (PCI-E) 6 + 2 pin - 4 pcs.
Number of SATA connectors (15-pin) 9 pcs.
Number of Molex connectors (4-pin) 3 pcs.
Number of Floppy connectors (4-pin) 1 PC.

Cooling system
A type active

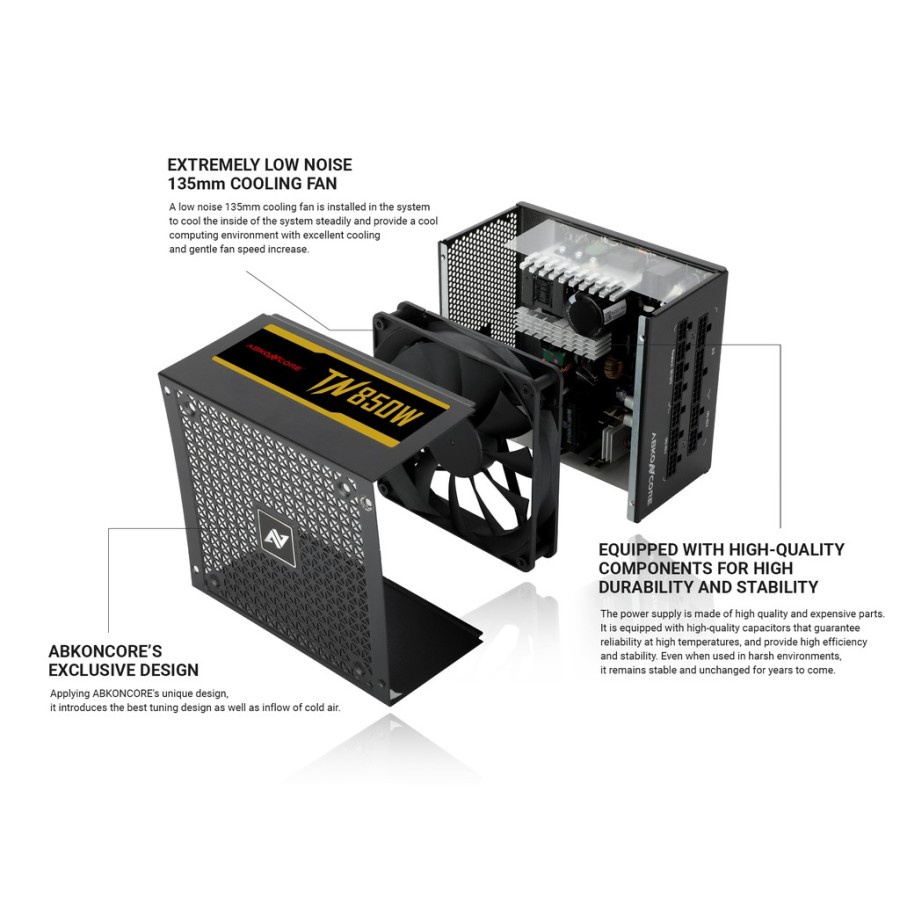

Fan size 135 mm

Additionally
PSU weight 2.858 kg


Garansi Resmi PT. ENLIGHT Indonesia 7 Tahun

Gambar produk
