Power Supply 36V 5A 80W Programmable Digital Switching Power Supply 36V 5A 80W with Casing Akrilik

Detail Power Supply 36V 5A 80W Programmable Digital Switching Power Supply 36V 5A 80W with Casing Akrilik

- Paket Lengkap, simpel tinggal pakai
- Ready Stok dengan FULL AKRILIK BENING TRANSPARAN
- Power supply modern bisa setting volt dan ampere sesuai keinginan dg sangat mudah
- Tidak seperti power supply tradisional yang harus repot untuk setting ampere.

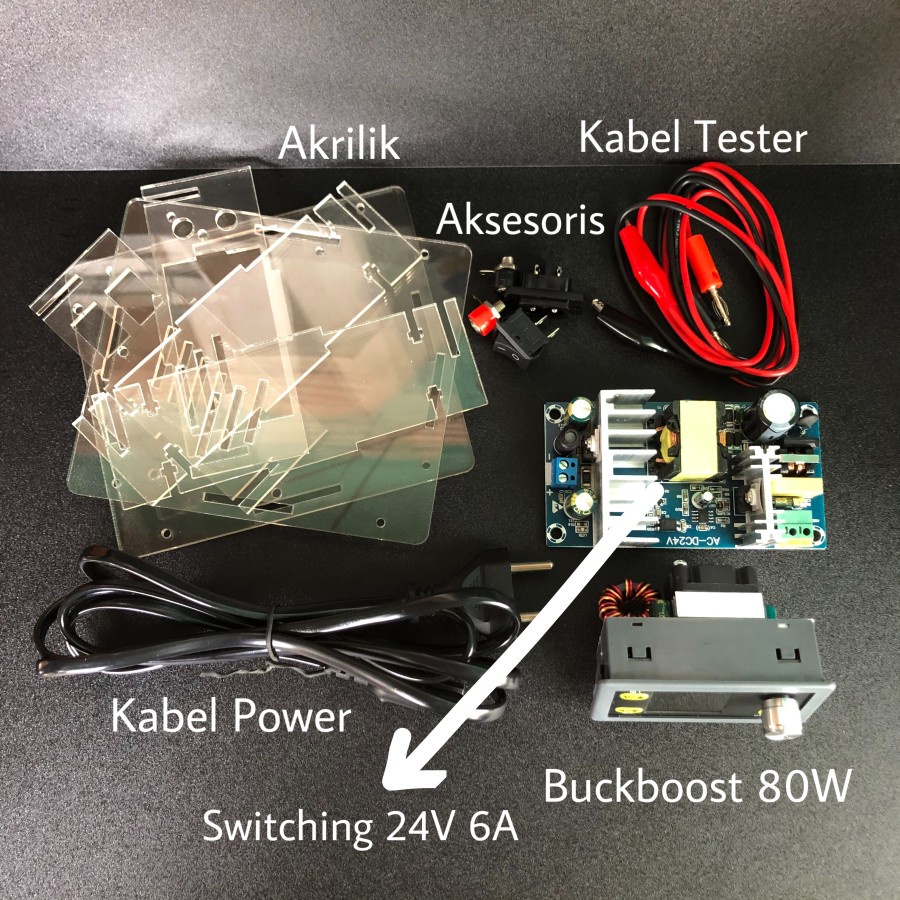

Yang dirakit:
1. Switching Power supply 24V 6A
2. Programmable regulator 36V 5A 80W
3. Cooling fan
4. Casing akrilik dengan sistem knock down, mudah dibongkar pasang. (Akrilik full transparan)
5. Sudah termasuk kabel power AC dan kabel test probe buaya

Features:

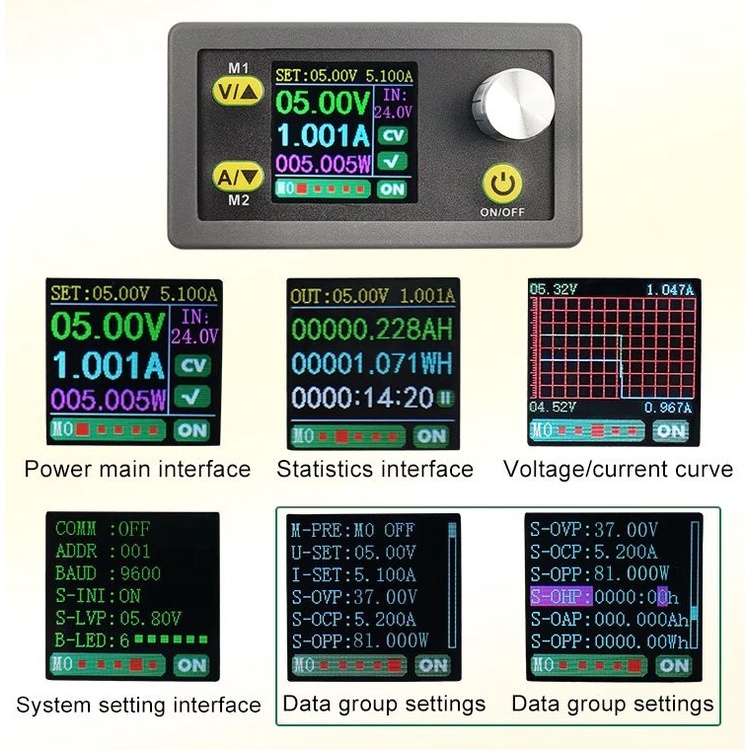

- Color screen display;
- Minimal operation;
- Software protection;
- Hardware protection.

Specifications:
Input voltage: AC-220V (sudah termasuk kabel power)

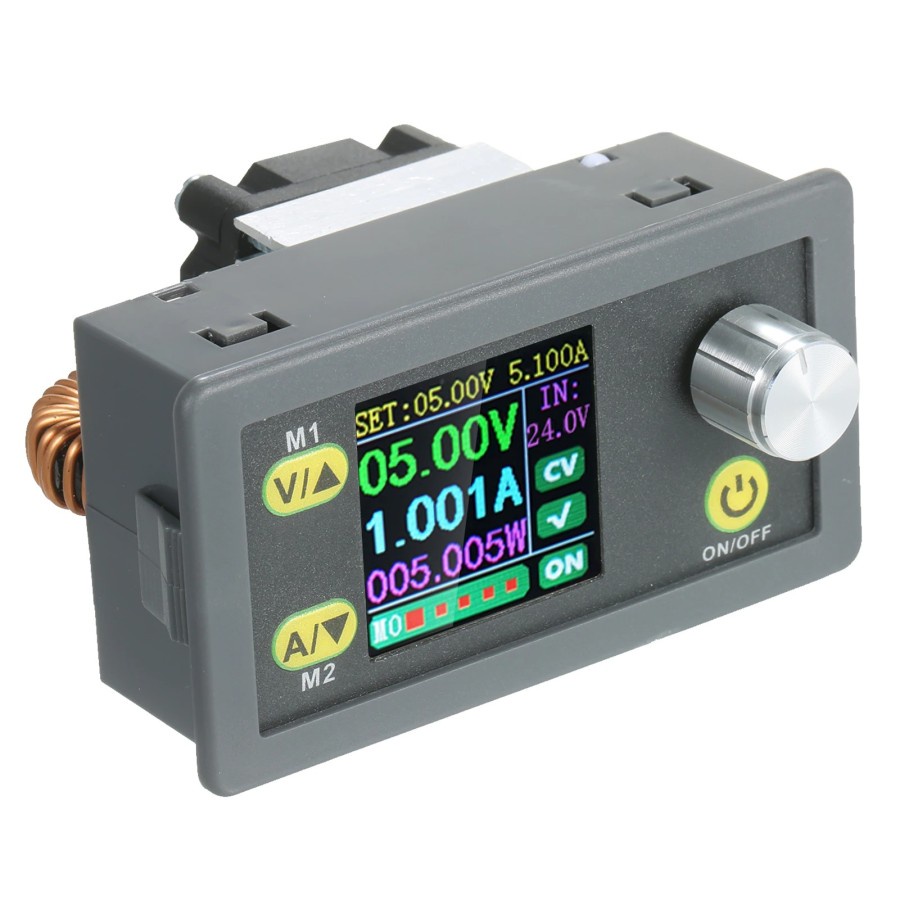

Control Method: Digital Control + 1.44-inch LED Display
Screen Brightness: 0 ~ 6 (7 levels in total)
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.001A
Input Voltage Range: 6.00 ~ 36.00V
Input Voltage Accuracy: ±(1.0%+5)
Output Voltage Range: 0.60 ~ 36.00V
Output Voltage Accuracy: ±(0.3%+3)
Output Current Range: Max. 0 ~ 5.000A
Output Current Accuracy: ±(0.5%+5)
Output Power Range: 0 ~ 80.000W
Energy Measurement Range: 0 ~ 99999.999WH
Capacity Measurement Range: 0 ~ 99999.999AH
Capacity Accuracy: ±2%
Working Environment: -10 ~ 60℃
Protection Mechanism:
Input under-voltage protection; output over-voltage protection; output over-current protection; output over-power protection; timeout protection; over capacity protection; over energy protection.

Package include
1 x DC DC Buck Boost Converter with Enclosure Box Cooling Fan
1 x Kabel power AC
1 x set kabel test dengan probe buaya merah dan hitam

Gambar produk
