Power Supply 24V 20A 480Watt

Detail Power Supply 24V 20A 480Watt

Spek Original !! 100% original spek
BERGARANSI
TOKO SEBELAH TIDAK BERGARANSI


DC 24V 20A 480W Switch Power Supply Switching module AN90 br/ br/ Description: br/ Protection: Shortage Protection, iOverload Protection, Over-voltage Protection:115%-135%,Action output cut-off Reset:Auto Reset or fuse br/ Safety Compliance CE and RoHS, high efficiency and stable performance. br/ Wide input voltage range, steady and precise output voltage.Great power transformer for electronic equipment, Led Lighting, home appliance etc. br/ br/ FEATURES: br/ 1.High efficiency, long life and high reliabili 2.Low dc ripple, high efficiency 3.Low operation temperature & long performance life 4.Excellent insulation property, high dielectric strength 5.100% full-load burning test br/ br/ INPUT: br/ 1. AC input voltage range(V):AC 85V-265V br/ 2. Input current(A):6.5A /115V,4A /230V br/ 3. Frequency (Hz):50/60Hz br/ 4. Efficiency:91% Typ(230V AC Full Load) br/ 5. Inrush current(A):25A/115V 50A/230V cold start br/ 6. Leakage current(mA): 3.5mA/240VAC br/ 7.Size:24 x 12, 3 x 6,5 br/ br/ OUTPUT: br/ 1. Output Voltage(V):+24V DC br/ 2. Voltage Regulation:10% br/ 3. Output Current(A):20A br/ 4. Current Range (A):0~20A br/ 5. Rated Power(W):480W br/ 6. Start Time, Hold-up Time(ms):Ton200ms,Td30ms @230Vac Full Load br/ 7. Rise Time(ms):Typ:100ms @230Vac Full Load br/ 8. Ripple/Noise(mVp-p):150mVp-p br/ br/ PROTECTION: br/ 1. Over Voltage Protection: 115%~135% Rated output voltage br/ 2. Over Load Protection:>105%~150% Auto recovery br/ 3. Short Circuit Protection:Latched

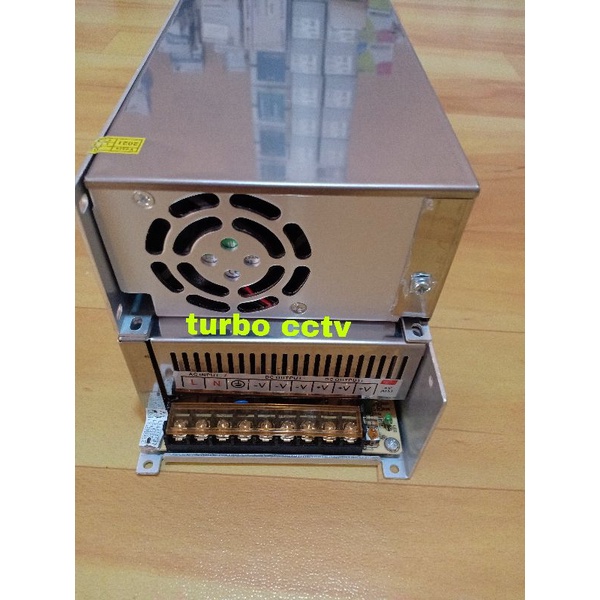

Gambar produk
